1008 (1690255) - Simplicity Sno-Away 28" Snow Thrower, 8hp Body & Rotor Group Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

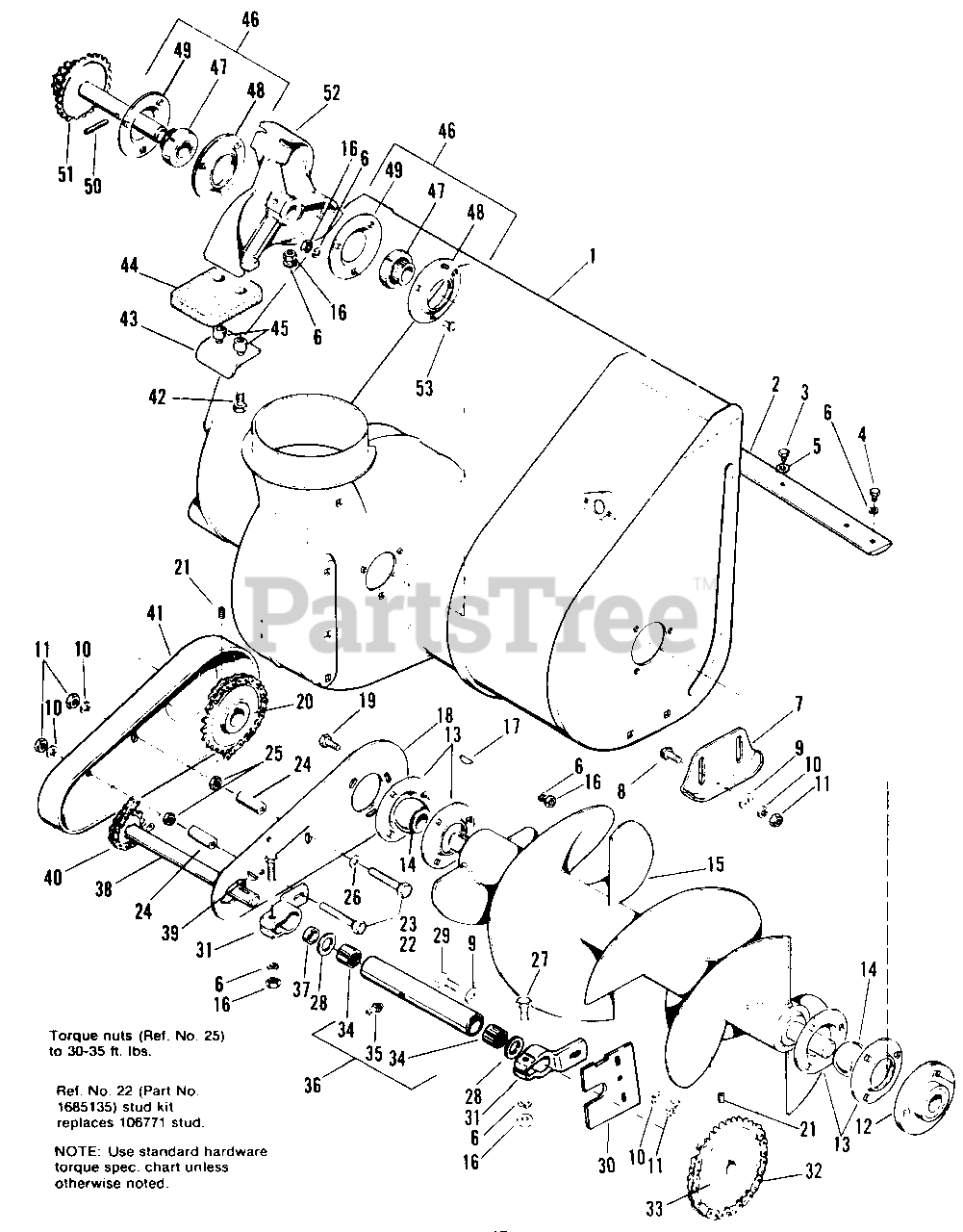

Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 106993

BODY ASSY. (990551 Only)

$

$

Not available

1

Simplicity 171448

BODY ASSY. (990656 Only)

$

$

Not available

1

Simplicity 170631

BODY ASSY. (990643, 990796 & 1690255 Only)

$

$

Not available

1

Simplicity 172333

BODY ASSY. (990652, 990742, 990869, 990870 & 1690209 Only)

$

$

Not available

2

Simplicity 2106994SM

SCRAPER, Body (990551, 990652, 990742, 990796, 990869 & 1690209 Only)

$

$

Not available

2

Simplicity 2170762SM

SCRAPER, Body (990643 & 1690255 Only)

$

$

Not available

2

Simplicity 171467

SCRAPER, Body (990656 & 990870 Only)

$

$

Not available

3

Simplicity 2828729

SCREW, Hex, Taptite, 5/16-18 x 3/8

Note: Used on Mfg. Nos. 990551, 990643, 990652, 990656, 990742, 990796, 990869 & 990870 only.

$

$

Not available

3

Simplicity 2819317

CAPSCREW, Hex Hd., 5/16-18 x 1/2

Note: Used on Mfg. Nos. 990643, 990652, 990656, 990742, 990796, 990869, 990870, 1690209 & 1690255 only.

$

$

Not available

4

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8 (990551 Only)

$

$

Not available

5

Simplicity 2817377

WASHER, Plain, 1/4 (990551 Only)

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2177434C

SKID

$

$

Not available

8

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

9

Simplicity 1924940SM

WASHER, Plain, 3/8 (Qty. 6 on 990551)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 6 on 990551)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

12

Simplicity 2106532SM

BEARING, Ball (990551, 990643, 990652, 990656 & 990742 Only)

$67.99

$

Usually ships in 2-12 days

0

13

Simplicity 2176101SM

FLANGE, Bearing

Note: Used on Mfg. Nos. 990796, 990869, 990870, 1690209 & 1690255 only.

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 2176100SM

BEARING ASSY.

Note: Used on Mfg. Nos. 990796, 990869, 990870, 1690209 & 1690255 only.

$24.99

$

In Stock, only 1 left!

0

15

Simplicity 161283

ROTOR ASSY.

Note: Used on Mfg. No. 990551, 990652, 990742, 990869, 990870 & 1690209 only.

$

$

Not available

15

Simplicity 170626

ROTOR ASSY. (990643, 990796 & 1690255 Only)

$

$

Not available

15

Simplicity 171469

ROTOR ASS.Y (990656 Only)

$

$

Not available

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2151040SM

KEY, Woodruff

$9.49

$

In Stock, only 2 left!

0

17

Simplicity 2805126SM

KEY, Woodruff, #15

Note: Used on Mfg. Nos. 990796, 990869, 990870, 1690209 & 1690255 only.

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 106745

PLATE, Side (990551 Only)

$

$

Not available

18

Simplicity 170754

PLATE, Side

Note: Used on Mfg. Nos. 990643, 990652, 990656, 990742, 990796, 990869, 990870, 1690209 & 1690255 only.

$

$

Not available

19

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

20

Simplicity 2161291

SPROCKET

$

$

Not available

21

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

22

Simplicity 1685135

STUD KIT (Includes Ref. Nos. 23, 24 & 25)

Note: Used on Mfg. Nos. 990551, 990643, 990652, 990656, 990742, 990796, 990869 & 990870 only.

$

$

Not available

23

Simplicity 933254

SCREW, Hex, Flange, Whiz, 3/8-16 x 2-1/4

$

$

Not available

24

Simplicity 2121121

SPACER

$

$

Not available

25

Simplicity 2828352

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1924356SM

WASHER (990870, 1690209 & 1690255 Only)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1729259SM

WASHER (Qty 2 on 990870, 1690209 & 1690255 Only)

$5.99

$

In Stock, Qty 7

0

29

Simplicity 2821966

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

30

Simplicity 170753

PLATE, Adjusting (Not used on 990551)

$

$

Not available

31

Simplicity 176161

SUPPORT ASSY., Clamp

$

$

Not available

32

Simplicity 2106898SM

CHAIN

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 106964

SPROCKET

$

$

Not available

34

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

35

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1650988

HOUSING, W/Bearing (990551, 990652, 990742, 990869 & 1690209 Only)

$

$

Not available

36

Simplicity 1657461

HOUSING, W/Bearing (990643, 990796 & 1690255 Only)

$

$

Not available

36

Simplicity 1650764

HOUSING, W/Bearing (990656 Only)

$

$

Not available

37

Simplicity 106992

SPACER

$

$

Not available

38

Simplicity 106938

SHAFT ASSY.

Note: Used on Mfg. No. 990551, 990652, 990742, 990869, 990870 & 1690209 only.

$

$

Not available

38

Simplicity 2170763SM

SHAFT ASSY. (Used on 990643, 990796 & 1690255 Only)

$

$

Not available

38

Simplicity 171459

SHAFT ASSY. (990656 Only)

$

$

Not available

39

Simplicity 2805123SM

KEY, Woodruff #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

40

Simplicity 106899

CHAIN

$

$

Not available

41

Simplicity 1652705

GUARD, Chain (990551 Only)

$

$

Not available

41

Simplicity 170865

GUARD, Chain

$

$

Not available

42

Simplicity 2830595

SCREW, Hex, Flange, Whizlock, 5/16-18 x 1-1/4

$

$

Not available

43

Simplicity 2171370SM

PLATE, Backup

$

$

Not available

44

Simplicity 2171351SM

BLADES, Impeller

$24.99

$

In Stock, only 2 left!

0

45

Simplicity 1729266SM

SPACER

$17.99

$

Usually ships in 2-12 days

0

46

Simplicity 1685071SM

BEARING REPLACEMENT KIT (Includes Ref. Nos. 47, 48 & 49)

$73.99

$

Usually ships in 2-12 days

0

47

Simplicity 1657990SM

BEARING

$74.99

$

In Stock, only 2 left!

0

48

Simplicity 1657989ASM

FLANGE

$12.99

$

Usually ships in 2-12 days

0

49

Simplicity 2172278ASM

FLANGE

$11.99

$

In Stock, Qty 6

0

50

Simplicity 2822749SM

PIN, Roll, 5/16 x 1-7/8

$3.99

$

Usually ships in 2-12 days

0

51

Simplicity 2106962SM

SPROCKET & SHAFT ASSY.

$

$

Not available

52

Simplicity 2176010SM

IMPELLER

$164.99

$

Usually ships in 2-12 days

0

53

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available
