1008 (1600403) - Simplicity Roticul Tiller, 8hp Tine & Worm Housing Group Parts Diagram

Roticul Tiller, 8hp

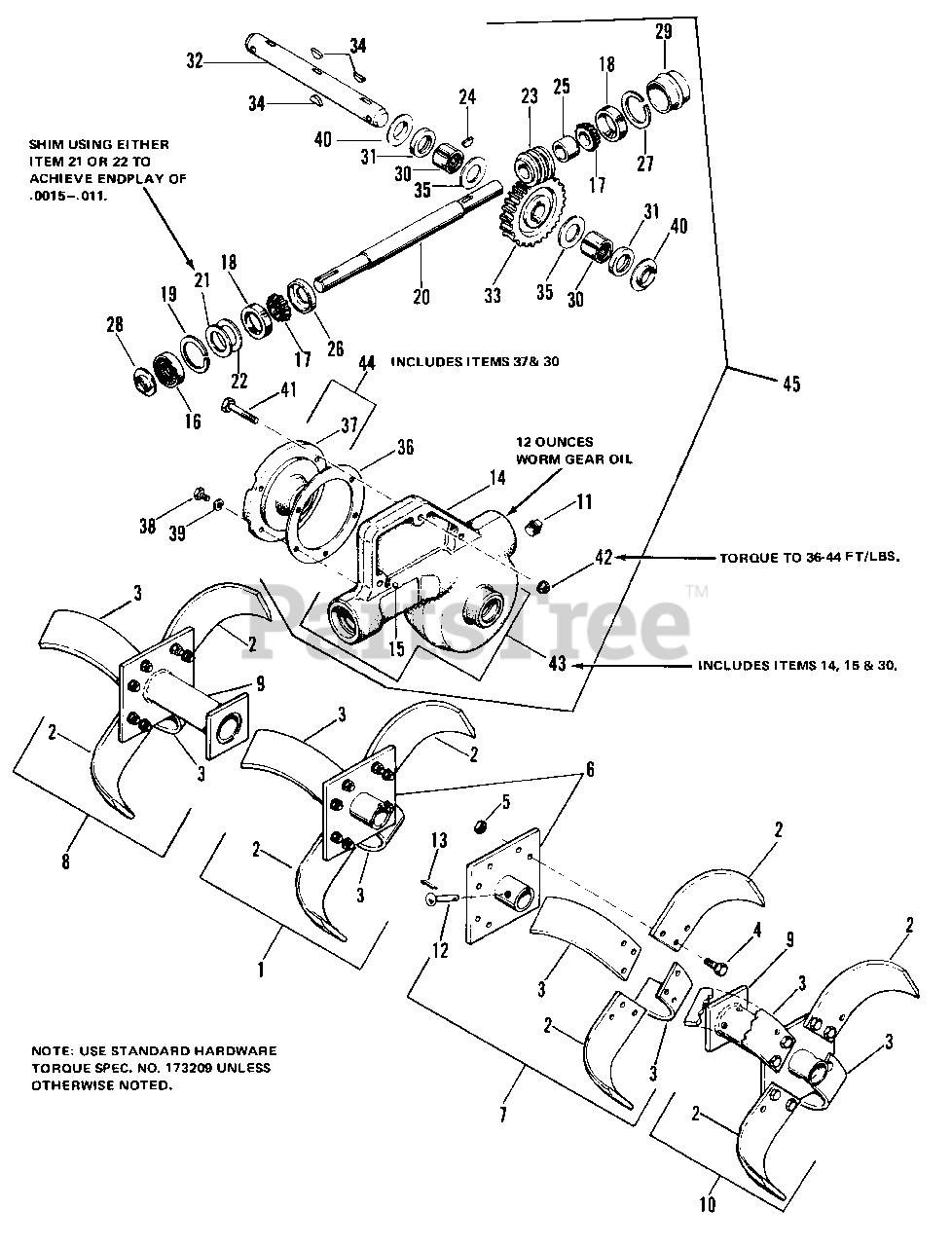

Tine & Worm Housing Group Parts Diagram

  • Title

1

Simplicity 176466

BLADE ASSY, Inner Tine, L.H.

$

$

Not available

2

Simplicity 2172511SM

TINE BLADE, R.H.
(Superseded to 2172511ASM)

$34.99

$

In Stock, Qty 20+

0

3

Simplicity 2172512SM

TINE BLADE, L.H.
(Superseded to 2172512ASM)

$34.99

$

In Stock, Qty 20+

0

4

Simplicity 2825204

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

5

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

6

Simplicity 176225

PLATE ASSY, Inner Tine

$

$

Not available

7

Simplicity 176467

BLADE ASSY, Inner Tine, R.H.

$

$

Not available

8

Simplicity 1609387

BLADE ASSY, Tine Ext., L.H.

$

$

Not available

9

Simplicity 1609386

PLATE ASSY, Tine, Outer

$

$

Not available

10

Simplicity 1609388

BLADE ASSY, Tine Ext., R.H.

$

$

Not available

11

Simplicity 2801653

PLUG, Pipe, Sq.Hd., 3/8

$

$

Not available

12

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

13

Simplicity 2818451

PIN, Cotter, 1/8-3/4

$

$

Not available

14

Simplicity 175871

HOUSING, Worm Drive

$

$

Not available

15

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

16

Simplicity 2118393SM

SEAL, Oil

$

$

Not available

17

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

18

Simplicity 2154393SM

CUP, Bearing

$22.99

$

In Stock, only 3 left!

0

19

Simplicity 118396

RING, Retaining

$

$

Not available

20

Simplicity 170888

SHAFT, Worm

$

$

Not available

21

Simplicity 170885

RING, Backing

$

$

Not available

22

Simplicity 171762

RING, Backing

$

$

Not available

23

Simplicity 176013

WORM, R.H.

$

$

Not available

24

Simplicity 911171

KEY, Hi-Pro, 3/16 x 7/8

$

$

Not available

25

Simplicity 118398

SPACER

$

$

Not available

26

Simplicity 118399

CUP

$

$

Not available

27

Simplicity 118396

RING, Retaining

$

$

Not available

28

Simplicity 118400

SHIELD

$

$

Not available

29

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

30

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

31

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

32

Simplicity 176724

SHAFT, Worm Gear

$

$

Not available

33

Simplicity 176011

GEAR, Worm

$

$

Not available

34

Simplicity 2830246SM

KEY, Woodruff, 1/4 x 3/4, No. 91
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

35

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

36

Simplicity 175872

GASKET

$

$

Not available

37

Simplicity 175873

COVER

$

$

Not available

38

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

39

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

40

Simplicity 2118403SM

SHIELD

$8.49

$

In Stock, only 2 left!

0

41

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

42

Simplicity 2828352

NUT, Flange, Hex, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

43

Simplicity 1663205

HOUSING, BEARING & PLUG ASSY

$

$

Not available

44

COVER & NEEDLE BEARING ASSY (Includes Items 37 & 30)

$

$

Not available

45

Simplicity 1608999

WORM DRIVE ASSY

$

$

Not available
