1008 (1600403) - Simplicity Roticul Tiller, 8hp Handles & Controls Group Parts Diagram

Roticul Tiller, 8hp

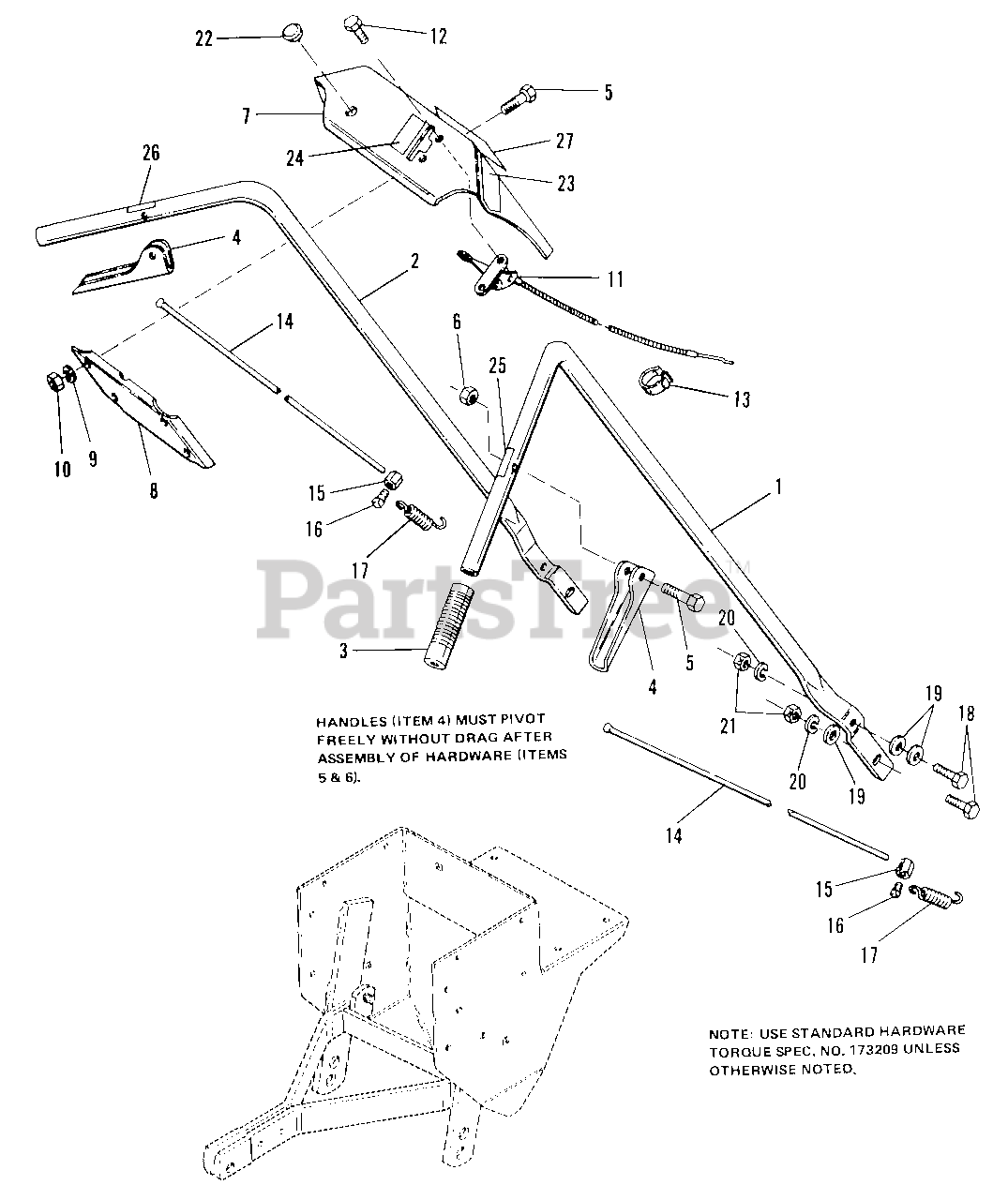

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1609344

HANDLE, R.H.

$

$

Not available

2

Simplicity 1609354

HANDLE, L.H.

$

$

Not available

3

Simplicity 2106558

GRIP

$

$

Not available

4

Simplicity 1609300

GRIP, Clutch

$

$

Not available

5

Simplicity 2822837

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available

6

Simplicity 2823358

NUT, Hex, Lock, 1/4-20

$

$

Not available

7

Simplicity 118237

HOUSING ASSY, Control

$

$

Not available

8

Simplicity 118298

COVER, Handle Upper

$

$

Not available

9

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1609383

CONTROL ASSY, Throttle

$

$

Not available

12

Simplicity 2825003

SCREW, Taptite, Wshr. Hd., Hex, 1/2-20 x 1/2

$

$

Not available

13

Simplicity 1605216

CLIP, Spring

$

$

Not available

14

Simplicity 1609378

ROD, Control

$

$

Not available

15

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

16

Simplicity 928722

SETSCREW, Sq. Hd., Cup Pt., #10-24 x 5/8

$

$

Not available

17

Simplicity 2159159SM

SPRING

Note: Used on Mfg. No. 1690239 only.

$37.99

$

In Stock, only 1 left!

0

17

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 2822611

WASHER, Plain, 3/8

$

$

Not available

20

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 2164191

BUTTON, Plug

$

$

Not available

23

Simplicity 1657168

DECAL, Stripe

Note: Used on Mfg. No. 1690239 only.

$

$

Not available

24

Simplicity 1609427

DECAL, Throttle

Note: Used on Mfg. No. 1690239 only.

$

$

Not available

25

Simplicity 1609429

DECAL, Forward

Note: Used on Mfg. No. 1690239 only.

$

$

Not available

26

Simplicity 1609430

DECAL, Reverse

Note: Used on Mfg. No. 1690239 only.

$

$

Not available

27

Simplicity 106718

DECAL, Simplicity

Note: Used on Mfg. No. 1690239 only.

$

$

Not available
