1008 (1600403) - Simplicity Roticul Tiller, 8hp Drive Group Parts Diagram

Roticul Tiller, 8hp

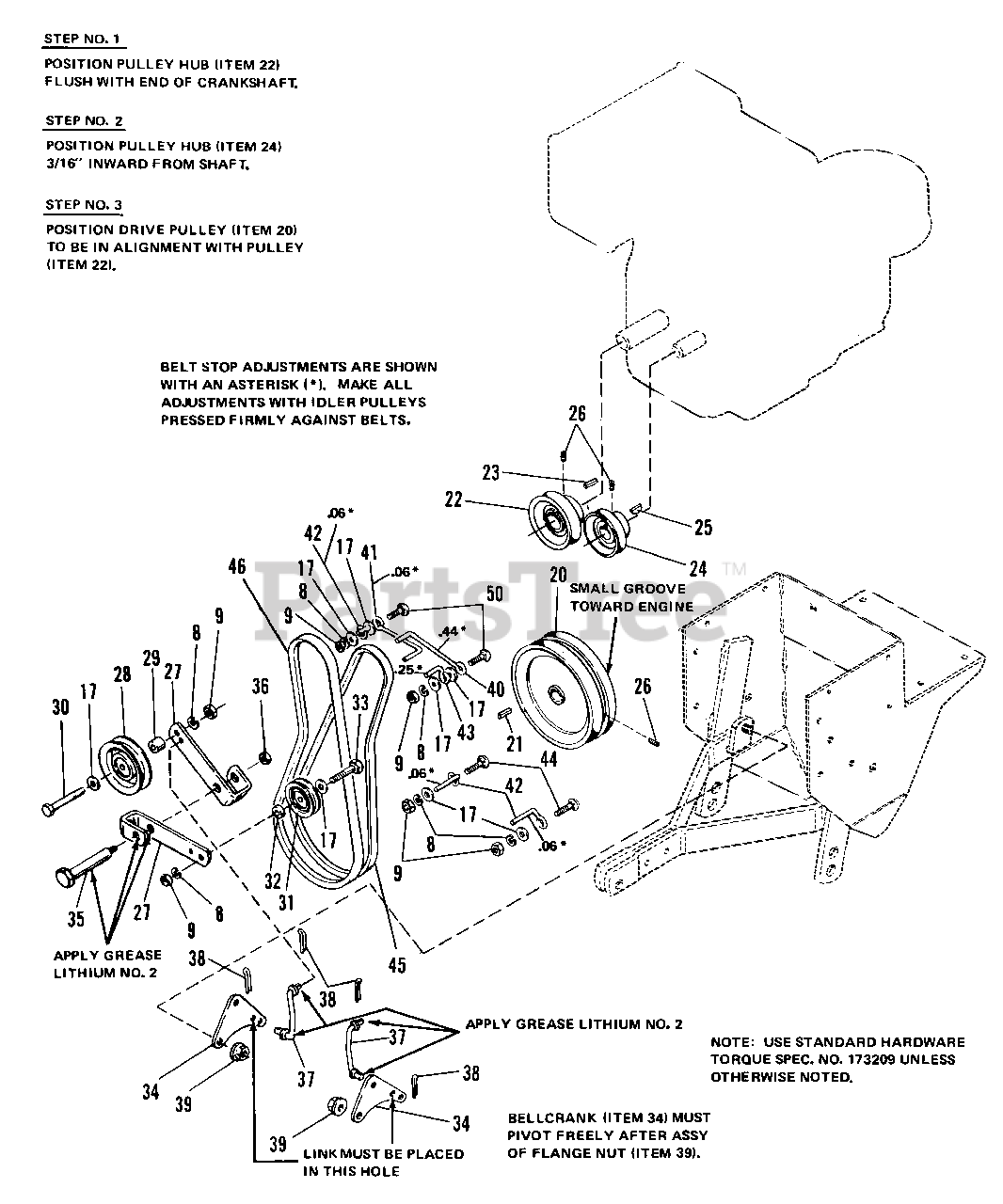

Drive Group Parts Diagram

  • Title

1

Simplicity 1609342

FRAME ASSY

$

$

Not available

2

Simplicity 177124

WHEEL & TIRE ASSY

$

$

Not available

3

Simplicity 176196

BOLT, Shoulder

$

$

Not available

4

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

5

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

6

Simplicity 118207

STOP, Plate

$

$

Not available

7

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 118081

BAR, Depth

$

$

Not available

11

Simplicity 118371

CLAMP

$

$

Not available

12

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 1918196SM

PIN, Quick, 1-/78
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

14

ENGINE, 8 HP, Briggs & Stratton, Model 190492, Type 0794-01

$

$

Not available

15

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 2822611

WASHER, Plain, 3/8

$

$

Not available

17

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 175964

PULLEY, Drive

$

$

Not available

21

Simplicity 118439

KEY

$

$

Not available

22

Simplicity 176328

PULLEY, Forward

$

$

Not available

23

Simplicity 172668

KEY

$

$

Not available

24

Simplicity 118458

PULLEY, Engine, Reverse

$

$

Not available

25

Simplicity 2810224SM

KEY, Woodruff, #6, 5/32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 2811712

SETSCREW, Hex Skt., Cup Pt., 5/16-18 x 5/16

$

$

Not available

27

Simplicity 1609352

LEVER, Idler Pulley

$

$

Not available

28

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

29

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

31

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

32

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 1609295

BELLCRANK

$

$

Not available

35

Simplicity 171336

BOLT, Pivot

$

$

Not available

36

Simplicity 2823362

NUT, Hex, Full Lock, 5/16-18

$

$

Not available

37

Simplicity 1609299

ROD, Link

$

$

Not available

38

Simplicity 2823360

PIN, Cotter, 1/16 x 3/4

$

$

Not available

39

Simplicity 2829001

NUT, Hex Lock, Flange, 5/16-18

$

$

Not available

40

Simplicity 121073

STOP, Belt

$

$

Not available

41

Simplicity 2106707SM

STOP, Belt

$

$

Not available

42

Simplicity 106346

STOP, Belt

$

$

Not available

43

Simplicity 106347

STOP, Belt

$

$

Not available

44

Simplicity 2822249

BOLT, Rd. Hd., Sq. Nk., 3/8-16 x 1

$

$

Not available

45

Simplicity 2176393SM

BELT, V (Reverse)

$19.99

$

Usually ships in 2-12 days

0

46

Simplicity 2176917SM

BELT, V (Forward)

$21.99

$

Usually ships in 2-12 days

0

47

Simplicity 1609343

COVER

$

$

Not available

48

Simplicity 2827428

SCREW, Hex, Wshr Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

48

Simplicity 176364

SCRAPER

$

$

Not available

50

Simplicity 2822109

BOLT, Rd. Hd., Sq. Nk., 3/8-16 x 1-1/4

$

$

Not available

51

Simplicity 1657125

DECAL, 1008

Note: Used on Mfg. No. 1690239

$

$

Not available

52

Simplicity 1657128

DECAL, Roticul, R.H.

Note: Used on Mfg. No. 1690239

$

$

Not available

53

Simplicity 1657129

DECAL. Roticul. L.H.

Note: Used on Mfg. No. 1690239

$

$

Not available
