10060B-0195-H1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

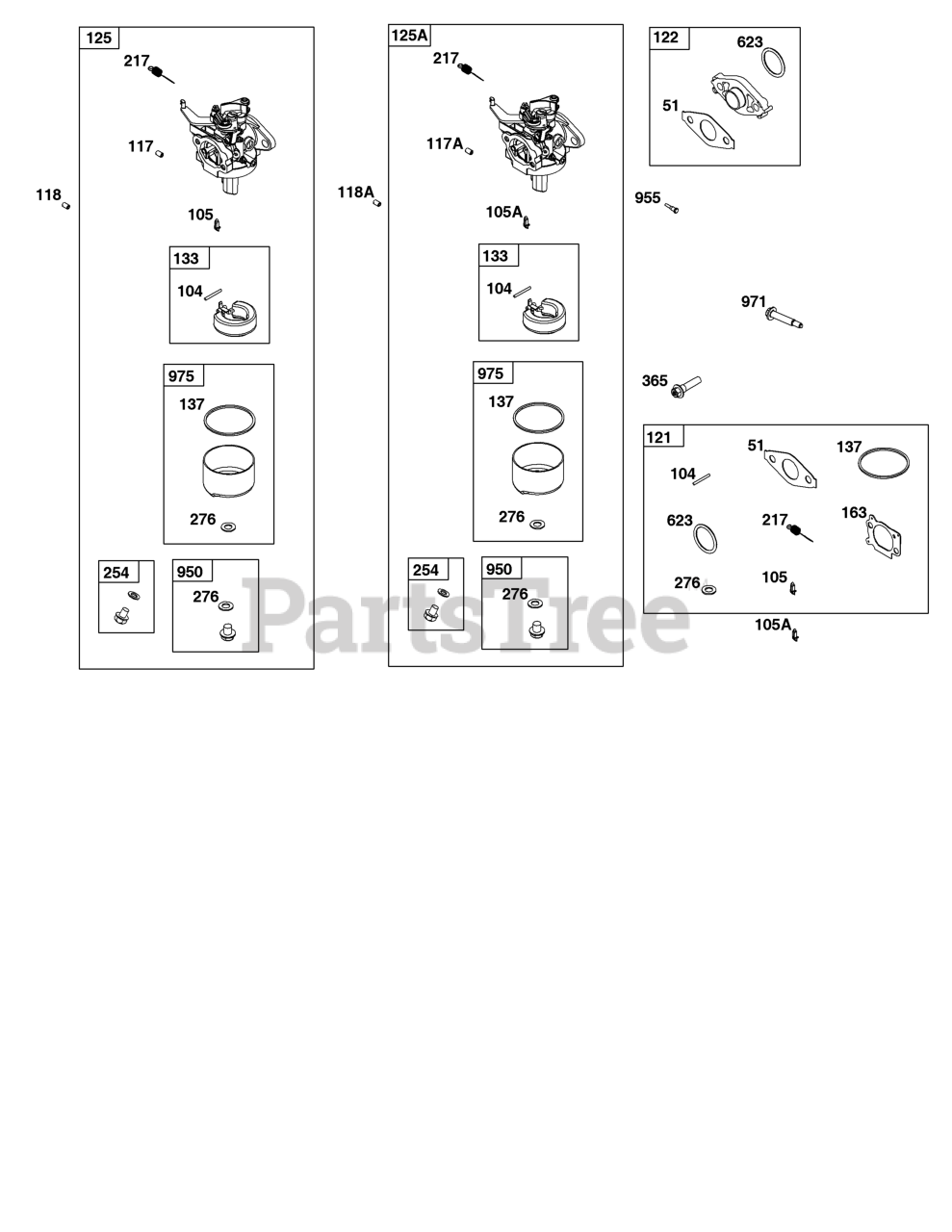

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

104

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 592491

VALVE, Float Needle

Note: Used Before Code Date 18100100

$12.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 84003155

VALVE, Float Needle

Note: Used After Code Date 18093000

$10.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 592490

JET, Main

Note: (Standard) Used Before Code Date 18100100

$16.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 84003156

JET, Main

Note: (Standard) Used After Code Date 18093000

$

$

Currently unavailable

118

Briggs & Stratton 592142

JET, Main

Note: (High Altitude) Used Before Code Date 18100100

$14.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 592142

JET, Main

Note: (High Altitude) Used After Code Date 18093000

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 592483

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$43.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 793456

SPACER, Carburetor

$12.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 595509

CARBURETOR
(Superseded to 84001115)

Note: Used Before Code Date 18100100

$55.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 84001115

CARBURETOR

Note: Used After Code Date 18093000

$55.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 592487

FLOAT, Carburetor

$9.49

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 592485

GASKET, Float Bowl

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691894

GASKET, Air Cleaner

$4.99

$

In Stock, Qty 7

0

217

Briggs & Stratton 592484

SPRING, Choke Return

$7.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 592489

WASHER, Sealing

$6.99

$

In Stock, only 1 left!

0

365

Briggs & Stratton 793458

SCREW

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

623

Briggs & Stratton 793628

SEAL, O-Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 17

0

950

Briggs & Stratton 592488

SCREW

$4.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

Briggs & Stratton 592492

BOWL, Float

$20.99

$

Usually ships in 2-12 days

0
