100602-0192-H8 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

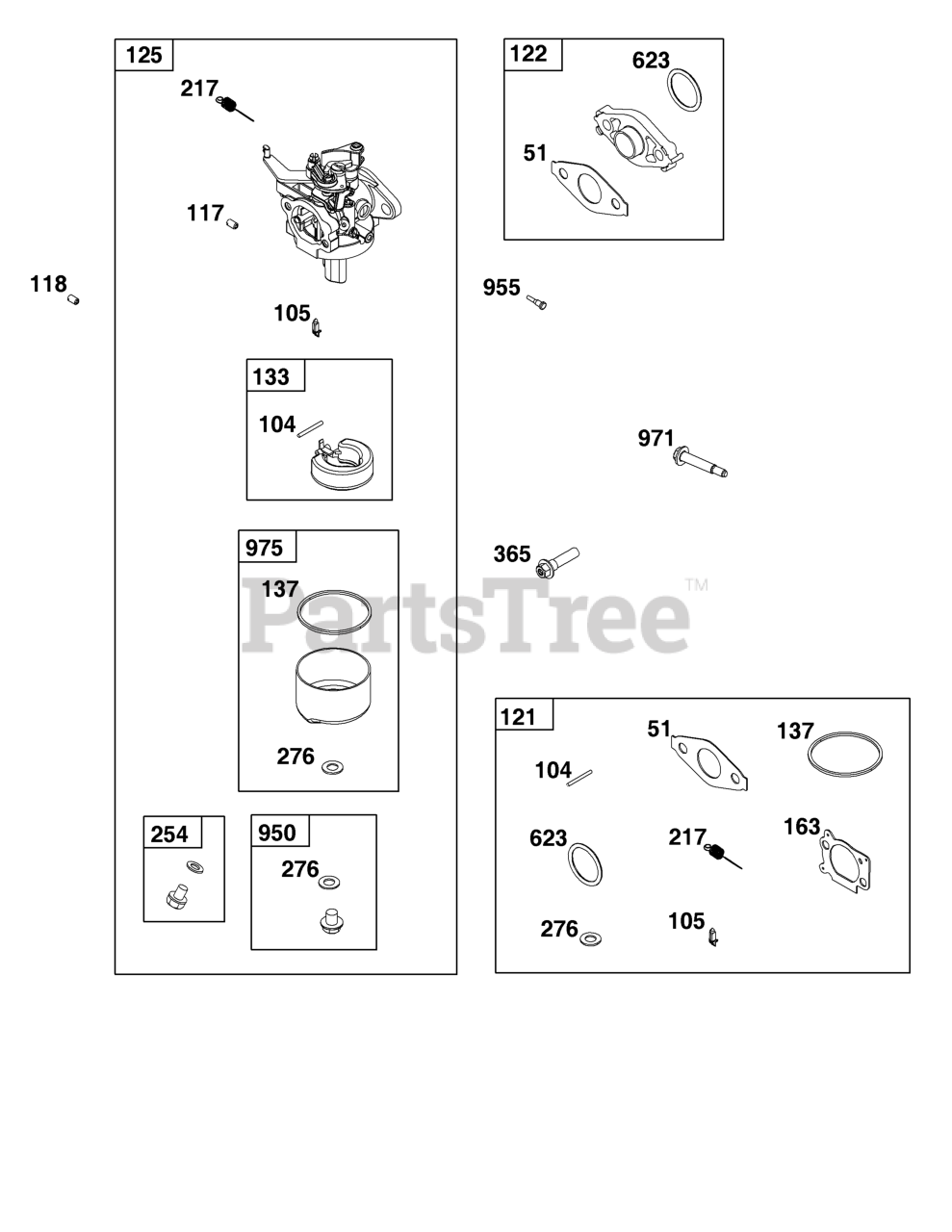

Carburetor Group Parts Diagram

  • Title
51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

104

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 592491

Valve-Float Needle

$12.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 592490

Jet-Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 592142

Jet-Main

Note: (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 592483

Kit-Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$43.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 793456

Spacer-Carburetor

$12.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 595509

Carburetor
(Superseded to 84001115)

$55.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 592487

Float-Carburetor

$9.49

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 592485

Gasket-Float Bowl

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 6

0

217

Briggs & Stratton 592484

Spring-Choke Return

$7.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 592489

Washer-Sealing

$6.99

$

In Stock, only 1 left!

0

365

Briggs & Stratton 793458

Screw

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

623

Briggs & Stratton 793628

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 17

0

950

Briggs & Stratton 592488

Screw-Float Bowl

$4.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

$20.99

$

Usually ships in 2-12 days

0
