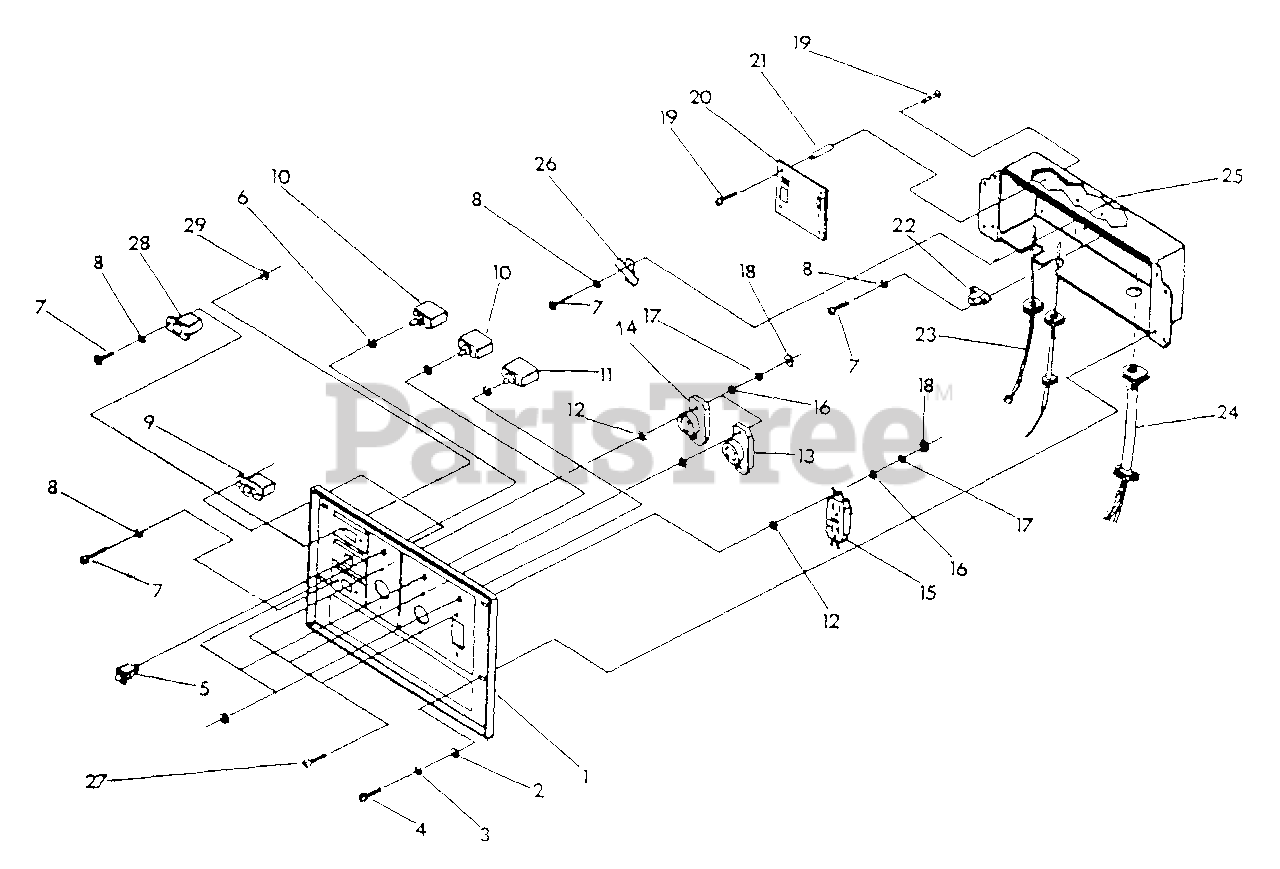

1006-0 - Generac 6,500 Watt Portable Generator Control Panel Parts Diagram

6,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 92570

Control Panel

$

$

Not available

2

Briggs & Stratton 23897

#10 (M5) Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

5

Briggs & Stratton 87968

Idle Control Switch
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881

7/16" Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

12V Outlet & Ret. Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

10

75207A

30A Circuit Breaker

$

$

Not available

11

Briggs & Stratton 75207

20A Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868

120 Volt, 30 Amp Locking Type Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437

120V/240V, 30A Locking Type Outlet

$

$

Not available

15

Briggs & Stratton 80409

Recep GFCI 20 A Duplex
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 43108

M4 Flat Washer

$

$

Currently unavailable

17

Briggs & Stratton 22264

#8 (M4) Lock Washer

$

$

Not available

18

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526

#6-32 x 3/8" Screw

$

$

Not available

20

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

21

Briggs & Stratton 64525

3/4" Hex Stand-Off

$

$

Currently unavailable

22

Briggs & Stratton 87692

12V, 10A Cir. Breaker (Auto)

$

$

Currently unavailable

23

Briggs & Stratton 84335

Wire Harness Assembly
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134

Rubber Conn. Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 92069

Control Box Panel

$

$

Not available

26

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

28

Briggs & Stratton 77604

Hour Meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0
