1005 (1600400) - Simplicity Roticul Tiller, 5hp Frame, Handles & Controls Parts Diagram

Roticul Tiller, 5hp

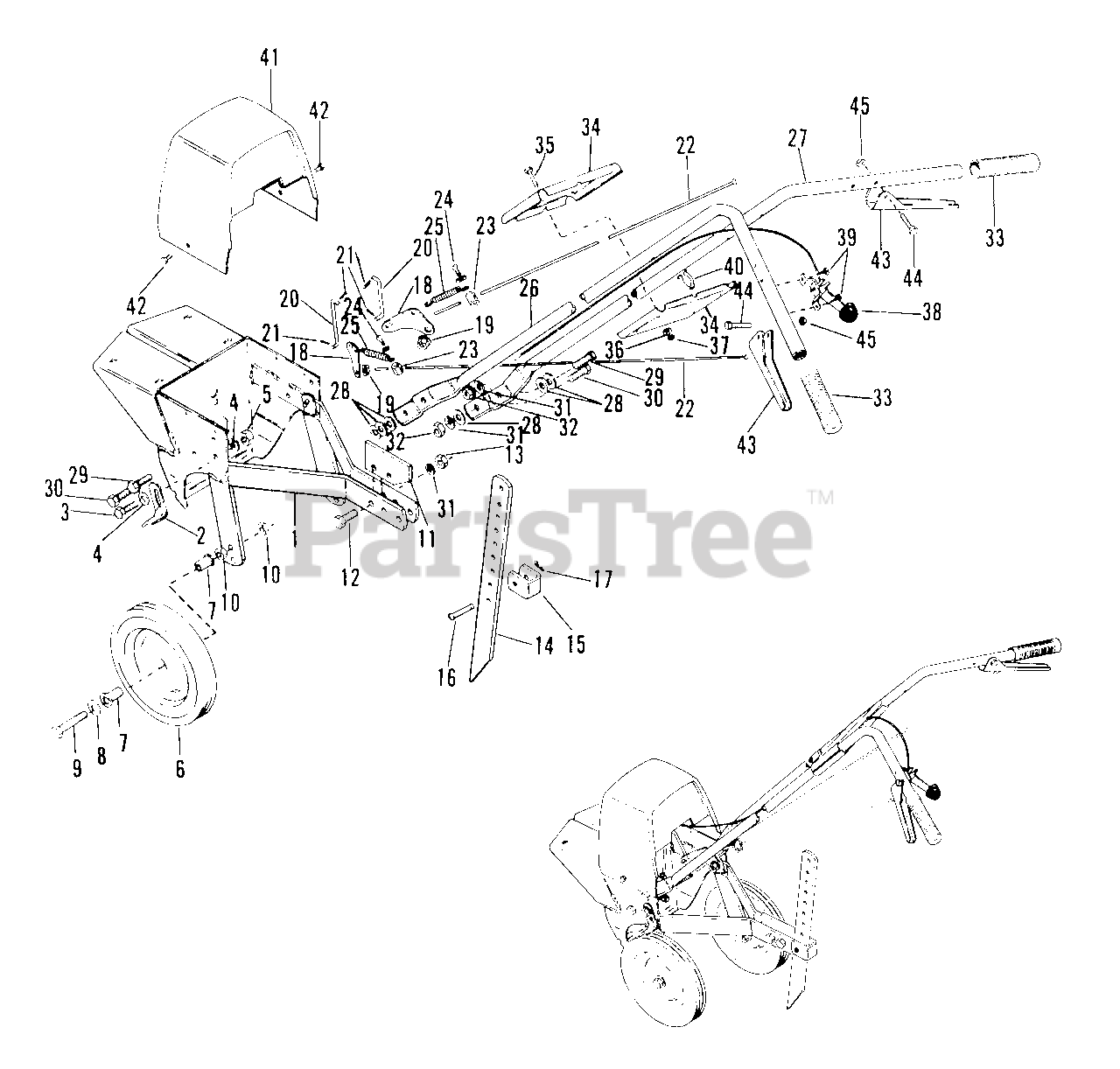

Frame, Handles & Controls Parts Diagram

  • Title

1

Simplicity 1609357

FRAME ASSY

$

$

Not available

2

Simplicity 170360

SCRAPER

Note: Used on Mfg. No. 1600400 only.

$

$

Not available

3

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

Note: Used on Mfg. No. 1600400 only.

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: Used on Mfg. No. 1600400 only.

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

Note: Used on Mfg. No. 1600400 only.

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1657033

WHEEL & TIRE ASSY

Note: Used on Mfg. No. 1600400 only.

$

$

Not available

6

Simplicity 118469

WHEEL & TIRE ASSY

$

$

Not available

7

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available

8

Simplicity 2818431

WASHER, Flat, 1/2

$

$

Not available

9

Simplicity 2808305

CAPSCREW, Hex, 1/2-13 x 3-1/4

$

$

Not available

10

Simplicity 2813744

NUT, Hex, 1/2-13

$

$

Not available

11

Simplicity 118207

PLATE, Stop

$

$

Not available

12

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 118081

BAR, Depth

$

$

Not available

15

Simplicity 118447

CLAMP

$

$

Not available

16

Simplicity 2105249SM

PIN, Inner

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1609295

BELLCRANK

$

$

Not available

19

Simplicity 2829001

LOCKNUT, Flange

$

$

Not available

20

Simplicity 1609299

LINK, Rod

$

$

Not available

21

Simplicity 2823360

PIN, Cotter, 1/16 x 3/4

$

$

Not available

22

Simplicity 1609378

ROD, Control

$

$

Not available

23

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

24

Simplicity 928722

SETSCREW, #10-24 x 5/8

$

$

Not available

25

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

26

Simplicity 1609354

HANDLE, L.H.

$

$

Not available

27

Simplicity 1609344

HANDLE, R.H.

$

$

Not available

28

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 918728

SCREW, Hex, Whiz-Lock, 3/8-16 x 1

$

$

Not available

30

Simplicity 2830579

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

32

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

33

Simplicity 2106558

GRIP

$

$

Not available

34

Simplicity 118298

COVER, Upper Handle

$

$

Not available

35

Simplicity 2818240

CAPSCREW

$

$

Not available

36

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

37

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1609382

CONTROL ASSY, Throttle

Note: Used on Mfg. No. 1600400 only.

$

$

Not available

38

Simplicity 1657200

CONTROL ASSY, Throttle

$

$

Not available

39

Simplicity 2829477

SCREW, #10-24 x 1/2

$

$

Not available

40

Simplicity 1605216

CLIP, Cable

$

$

Not available

41

Simplicity 170359

COVER

$

$

Not available

42

Simplicity 2827428

SCREW, Self-Tapping, 1/4-20 x 3/8

$

$

Not available

43

Simplicity 1609300

GRIP, Clutch

$

$

Not available

44

Simplicity 2818240

CAPSCREW

$

$

Not available

45

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available
