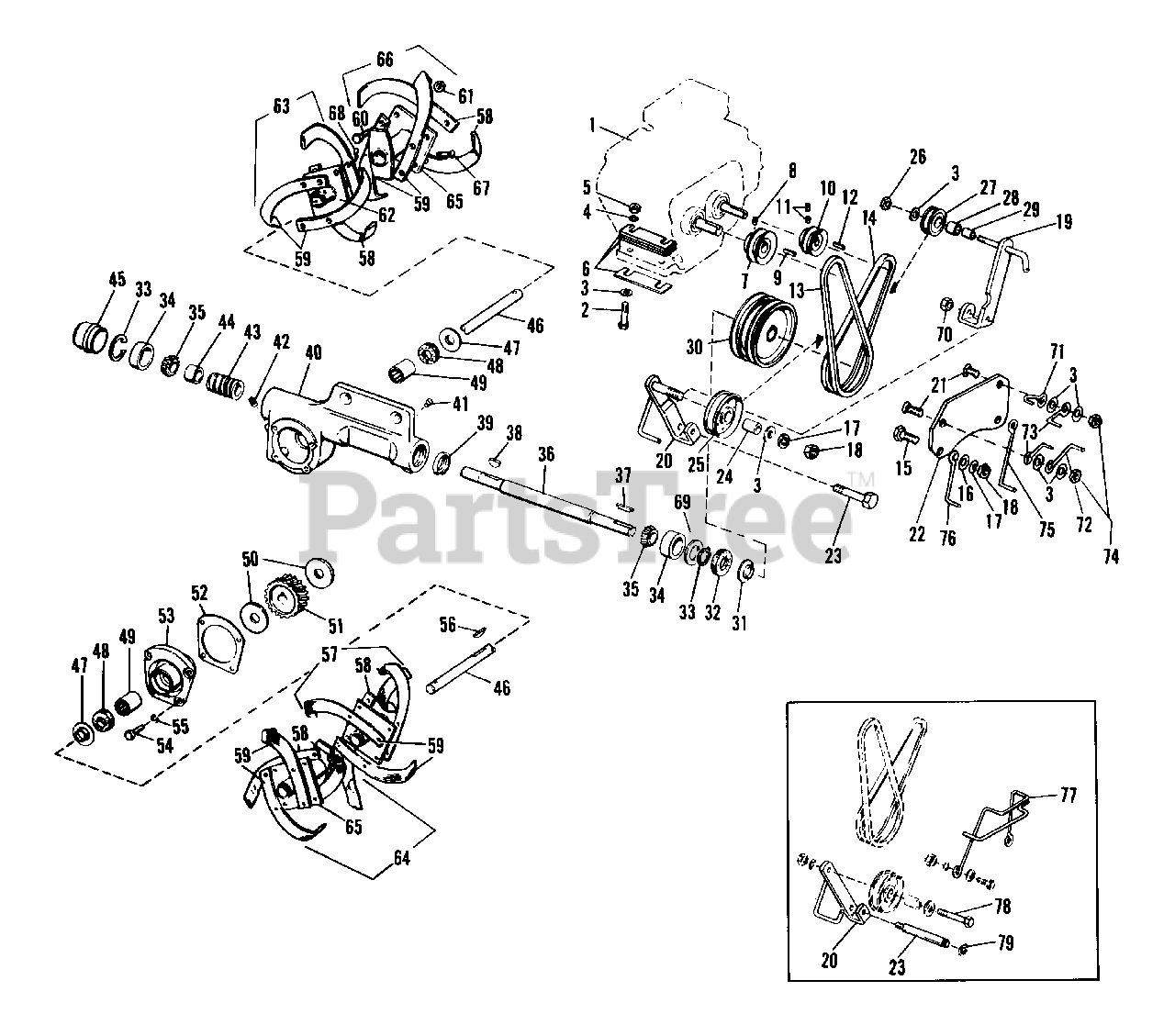

1005 (1600400) - Simplicity Roticul Tiller, 5hp Drive & Tines Parts Diagram

Roticul Tiller, 5hp

Drive & Tines Parts Diagram

  • Title

1

ENGINE, 3 HP or 5 HP, Briggs & Stratton, Model 130292, Type 0141-02

$

$

Not available

2

Simplicity 2819354

CAPSCREW, Hex Hd., 5/16-18 x 2

$

$

Not available

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 118463

SHIM

$

$

Not available

7

Simplicity 2118027SM

PULLEY, Engine

$50.99

$

Usually ships in 2-12 days

0

8

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

9

Simplicity 1729279SM

KEY, Square
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 118457

PULLEY, Engine

$

$

Not available

11

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

12

Simplicity 2805121SM

KEY

$2.99

$

In Stock, only 1 left!

0

13

Simplicity 2118494

BELT, V, Reverse

$

$

Not available

14

Simplicity 2164146SM

BELT, V, Forward

$23.99

$

Usually ships in 2-12 days

0

15

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-18 x 1

$

$

Not available

16

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

18

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 118408

LEVER ASSY, Idler

$

$

Not available

19

Simplicity 1609352

LEVER ASSY, Idler (1600400 Only)

$

$

Not available

20

Simplicity 172751

LEVER ASSY, Idler

$

$

Not available

20

Simplicity 118411

LEVER ASSY, Idler

Note: Used On Mfg. No. 990549 Only

$

$

Not available

21

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

22

Simplicity 172846

PLATE

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

23

Simplicity 171336

BOLT, Pivot

$

$

Not available

23

Simplicity 118425

PIN, Pivot

Note: Used On Mfg. No. 990549 Only

$

$

Not available

24

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 118415

SPACER

Note: Used On Mfg. No. 990549 Only

$

$

Not available

25

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

26

Simplicity 2828731

LOCKNUT, 3/8-16

$

$

Not available

27

Simplicity 101002

PULLEY, Idler Assy

$

$

Not available

28

Simplicity 8161243

BUSHING

$

$

Not available

29

Simplicity 8191020

SPACER

$

$

Not available

30

Simplicity 171987

PULLEY, Driven

$

$

Not available

30

Simplicity 118404

PULLEY, Driven

Note: Used On Mfg. No. 990549 Only

$

$

Not available

31

Simplicity 118400

SHIELD

$

$

Not available

32

Simplicity 2118393SM

SEAL, Oil

$

$

Not available

33

Simplicity 118396

RING, Snap

$

$

Not available

34

Simplicity 2154393SM

CUP, Bearing

$22.99

$

In Stock, only 3 left!

0

35

Simplicity 2154486SM

BEARING, Roller

$36.99

$

In Stock, Qty 6

0

36

Simplicity 170888

SHAFT, Worm

$

$

Not available

36

Simplicity 103199

SHAFT, Worm

Note: Used On Mfg. No. 990549 Only

$

$

Not available

37

Simplicity 118439

KEY

$

$

Not available

38

Simplicity 911171

KEY

$

$

Not available

39

Simplicity 118399

CUP

$

$

Not available

40

Simplicity 118392

HOUSING, Worm Drive

$

$

Not available

41

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

42

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

43

Simplicity 118492

WORM, R.H.

$

$

Not available

44

Simplicity 118398

SPACER

$

$

Not available

45

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

46

Simplicity 118021

SHAFT, Worm Gear

$

$

Not available

47

Simplicity 2118403SM

SHIELD

$8.49

$

In Stock, only 2 left!

0

48

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

49

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

50

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

51

Simplicity 2118022SM

GEAR, Worm, R.H.

$286.99

$

Usually ships in 2-12 days

0

52

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 3 left!

0

53

Simplicity 118402

COVER

$

$

Not available

54

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

55

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

56

Simplicity 2830246SM

KEY, Woodruff
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

57

Simplicity 118083

TINE ASSY, L.H. Inner

$

$

Not available

58

Simplicity 1729271SM

TINE BLADE, L.H

$

$

Not available

59

Simplicity 1729272SM

TINE BLADE, R.H.

$28.99

$

Usually ships in 2-12 days

0

60

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

61

Simplicity 2828867

NUT, Hex, Full, 7/16-20

$

$

Not available

62

Simplicity 118084

TINE PLATE ASSY, Inner

$

$

Not available

63

Simplicity 118120

TINE BLADE ASSY, R.H. Inner

$

$

Not available

64

Simplicity 105288

BLADE ASSY, L.H. Tine

$

$

Not available

65

Simplicity 105286

BLADE ASSY, Tine Ext.

$

$

Not available

66

Simplicity 105289

BLADE ASSY, R.H. Tine

$

$

Not available

67

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

68

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

69

Simplicity 170885

BACKING RING or 171762 BACKING RING

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

70

Simplicity 2827557

NUT, Whiz Lock

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

71

Simplicity 106347

STOP, Belt

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

72

Simplicity 2172844SM

STOP, Belt

Note: Used On Mfg. No. 990938, 990695, 990702

$26.99

$

Usually ships in 2-12 days

0

73

Simplicity 2172845SM

STOP, Belt

Note: Used On Mfg. No. 990938, 990695, 990702

$11.99

$

Usually ships in 2-12 days

0

74

Simplicity 2823428

LOCKNUT, 3/8-16

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

75

Simplicity 2106707SM

STOP, Belt

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

76

Simplicity 2165044

STOP, Belt

Note: Used On Mfg. No. 990938, 990695, 990702

$

$

Not available

77

Simplicity 118448

STOP, Belt

Note: Used On Mfg. No. 990549 Only

$

$

Not available

78

Simplicity 2819360

CAPSCREW, Hex Hd. 3/8-16 x 1-1/2

Note: Used On Mfg. No. 990549 Only

$

$

Not available

79

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

Note: Used On Mfg. No. 990549 Only

$4.49

$

In Stock, Qty 10

0
