1004 (990558) - Simplicity Sno-Away 21" Snow Thrower, 4hp Engine & Drive Group Parts Diagram

Sno-Away 21" Snow Thrower, 4hp

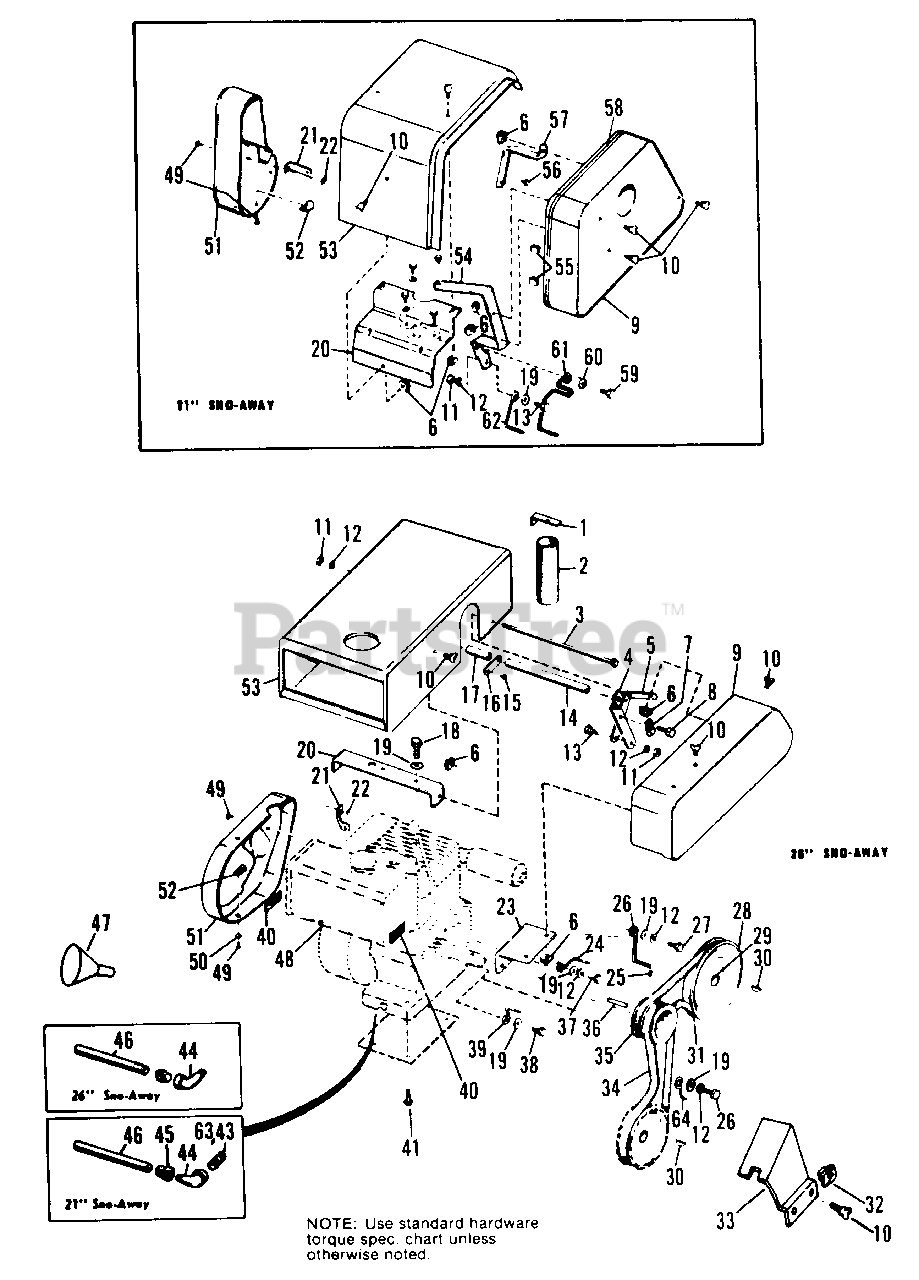

Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 106385

CLAMP, Tube (990483 & 990559 Only)

$

$

Not available

2

Simplicity 106581

TUBE, Rubber (990483 & 990559 Only)

$

$

Not available

3

Simplicity 106578

BOLT, Hood Spacer (990483 & 990559 Only)

$

$

Not available

4

Simplicity 106523

SUPPORT, Hood, Rear (990483 & 990559 Only)

$

$

Not available

5

Simplicity 106520

BRACE, Belt Guard (990483 & 990559 Only)

$

$

Not available

6

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

7

Simplicity 154247

CLAMP (990483 8 990559 Only)

$

$

Not available

8

Simplicity 2827428

SCREW, Hex Washer Hd., Taptite, 1/4-20 x 3/8 (990483 & 990559 Only)

$

$

Not available

9

Simplicity 106579

GUARD ASSY., Belt (990483 & 990559 Only)

$

$

Not available

9

Simplicity 106537

GUARD ASSY., Belt (990482 & 990558 Only)

$

$

Not available

10

Simplicity 2828693

SCREW, Thumb 5/16-18 x 3/4

$

$

Not available

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty. 1 used on 990482 & 990558 Only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 1 used on 990482 & 990558 Only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

14

Simplicity 106576

SPACER, Hood L.H. (990483 & 990559 Only)

$

$

Not available

15

Simplicity 922121

SCREW, Rd. Hd., #10-32 x 3/8 (990483 & 990559 Only)

$

$

Not available

16

Simplicity 106525

BRACE (990483 & 990559 Only)

$

$

Not available

17

Simplicity 106577

SPACER, Hood, R.H. (990483 & 990559 Only)

$

$

Not available

18

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

19

Simplicity 2817642

WASHER, Plain 5/16 (Qty. 1 used on 990482 & 990558 Only)

$

$

Not available

20

Simplicity 106519

SUPPORT, Hood (990483 & 990559 Only)

$

$

Not available

20

Simplicity 106533

SUPPORT, Hood (990482 & 990558 Only)

$

$

Not available

21

Simplicity 106586

BRACKET, Cover (990483 & 990559 Only)

$

$

Not available

21

Simplicity 106591

BRACKET, Cover (990482 & 990558 Only)

$

$

Not available

22

Simplicity 928700

NUT, Speed

$

$

Not available

23

Simplicity 106522

SUPPORT, Guard (990483 & 990559 Only)

$

$

Not available

24

Simplicity 106347

STOP, Belt (990483 & 990559 Only)

$

$

Not available

25

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

26

Simplicity 8061089

STOP, Belt (990483 & 990559 Only)

$

$

Not available

27

Simplicity 2821943

CAPSCREW, Hex Hd., 5/16-24 x 3/4 (990483 & 990559 Only)

$

$

Not available

28

Simplicity 106214

PULLEY, Transmission Drive

$

$

Not available

29

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

30

Simplicity 2805123SM

KEY, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

31

Simplicity 1665706SM

V-BELT

$24.99

$

Usually ships in 2-12 days

0

32

Simplicity 2820470

NUT, Retainer 5/16-18

$

$

Not available

33

Simplicity 106865

COVER, Belt (990483 & 990559 Only)

$

$

Not available

33

Simplicity 106866

COVER, Belt (990482 & 990558 Only)

$

$

Not available

34

Simplicity 2121078SM

V-BELT

$26.99

$

Usually ships in 2-12 days

0

35

Simplicity 106882

PULLEY, Engine (990483 & 990559 Only)

$

$

Not available

35

Simplicity 106227

PULLEY, Engine (990482 & 990558 Only)

$

$

Not available

36

Simplicity 2159129

KEY (990483 & 990559 Only)

$

$

Not available

36

Simplicity 1729279SM

KEY (990482 & 990558 Only)
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

37

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (990483 & 990559 Only)

$

$

Not available

38

Simplicity 922120

CAPSCREW, Hex Hd., 5/16-24 x 5/8 (990483 & 990559 Only)

$

$

Not available

39

Simplicity 106346

STOP, Belt (990483 & 990559 Only)

$

$

Not available

40

Simplicity 106582

PAD, Belt (990483 & 990559 Only)

$

$

Not available

41

Simplicity 2828635SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

Simplicity 2827187SM

(990483 & 990559 Only)
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 106685

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1

$

$

Not available

44

Simplicity 2801723

(990482 & 990558 Only)

$

$

Not available

44

Simplicity 901722

NIPPLE, Pipe (990482 & 990558 Only)

$

$

Not available

45

Simplicity 901751

ELBOW, Street, 90ø (990483 & 990559 Only)

$

$

Not available

46

Simplicity 154381

ELBOW, Street (990482 & 990558 Only)

$

$

Not available

47

Simplicity 154380

CAP, Pipe (990482 & 990558 Only)

$

$

Not available

48

ENGINE, 6 HP, Briggs & Stratton, Model 100202, Type 0180-01 (990483 & 990559 Only) ENGINE, 4 H.P. (990482 & 990558 Only)

$

$

Not available

49

Simplicity 2822122

SCREW, Self Tapping #10 x 1/2

$

$

Not available

50

Simplicity 2816955

WASHER, Plain, 3/16 (990483 & 990559 Only)

$

$

Not available

51

Simplicity 106585

COVER, Air Cooling (990483 & 990559 Only)

$

$

Not available

51

Simplicity 106590

COVER, Air Cooling (990482 & 990558 Only)

$

$

Not available

52

Simplicity 928702

NUT, Retainer

$

$

Not available

53

Simplicity 106573

HOOD, ASSY. (990483 & 990559 Only)

$

$

Not available

53

Simplicity 106534

HOOD, ASSY. (990482 & 990558 Only)

$

$

Not available

54

Simplicity 106541

SUPPORT, Belt Guard (990482 & 990558 Only)

$

$

Not available

55

Simplicity 106372

CLIP, Speed (990482 & 990558 Only)

$

$

Not available

56

Simplicity 2822123

SCREW, Hex Hd., Self Tapping, 1/4-20 x 3/8 (990482 & 990558 Only)

$

$

Not available

57

Simplicity 106540

BRACKET, Belt Guard (990482 & 990558 Only)

$

$

Not available

58

Simplicity 106547

STRIPE, White (990482 & 990558 Only)

$

$

Not available

59

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1 (990482 & 990558 Only)

$

$

Not available

60

Simplicity 2809589

LOCKWASHER, Int., 1/2 (990482 & 990558 Only)

$

$

Not available

61

Simplicity 106624

STOP, Belt (990482 & 990558 Only)

$

$

Not available

62

Simplicity 2106545SM

STOP, Belt (990482 & 990558 Only)

$5.99

$

Usually ships in 2-12 days

0

63

Simplicity 106601

NIPPLE, Pipe (990482 Only)

$

$

Not available

64

Simplicity 1729264

STOP, Belt (990483 Only)

$

$

Not available
