1004 (990558) - Simplicity Sno-Away 21" Snow Thrower, 4hp Body & Rotor Group Parts Diagram

Sno-Away 21" Snow Thrower, 4hp

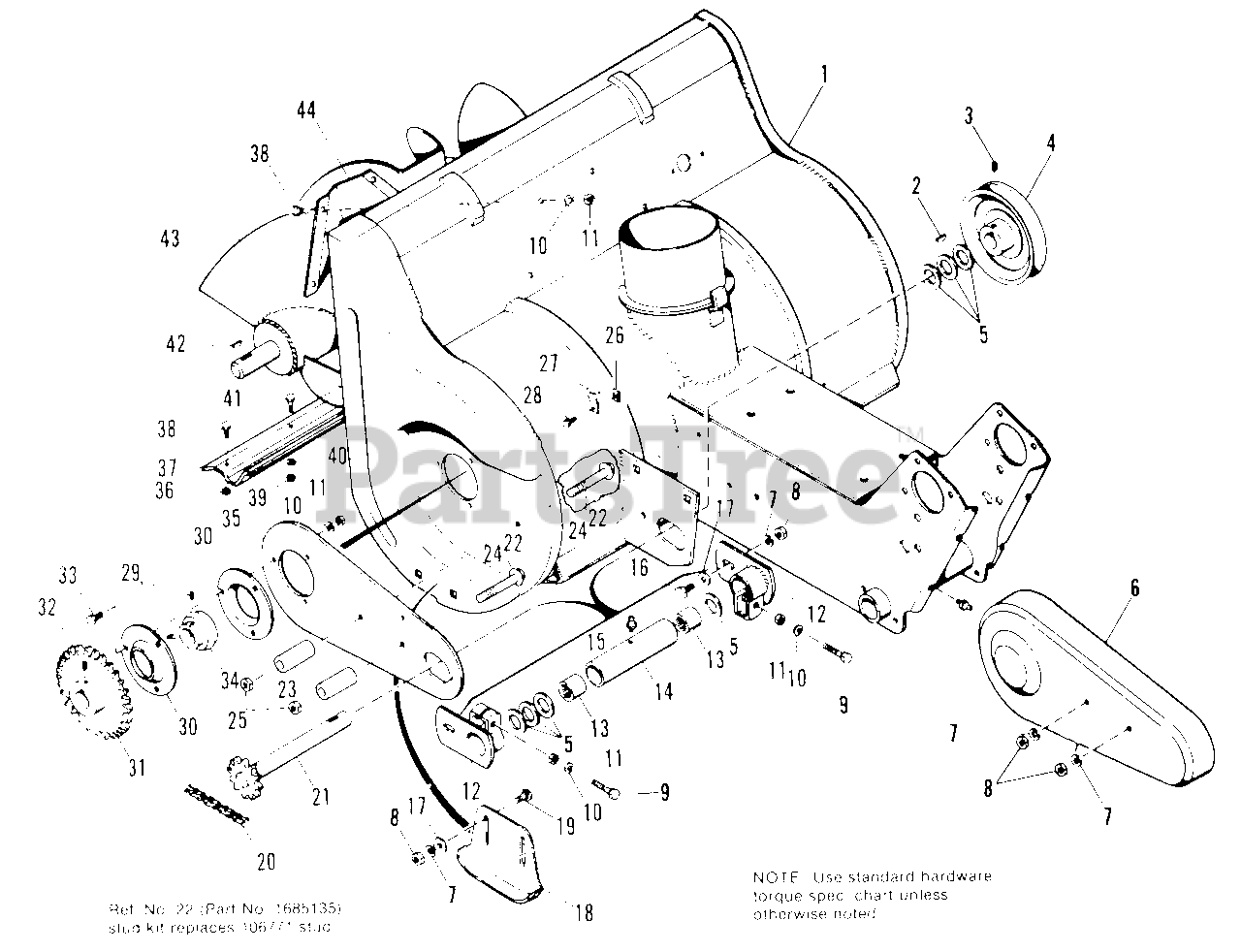

Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 161191

BODY ASSY., Frame (990483 & 990559 Only)

$

$

Not available

1

Simplicity 106814

BODY ASSY., Frame (990482 Only)

$

$

Not available

1

Simplicity 1657751

BODY ASSY., Frame (990558 & 1690305 Only)

$

$

Not available

2

Simplicity 2805123SM

KEY, Woodruff, #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

4

Simplicity 2106663SM

PULLEY (990482, 990483, 990558 & 990559 Only)

$56.99

$

Usually ships in 2-12 days

0

4

Simplicity 118470

PULLEY (1690305 Only)

$

$

Not available

5

Simplicity 1729259SM

WASHER (Qty. 2 used on 1690305)

$5.99

$

In Stock, Qty 7

0

6

Simplicity 1652705

GUARD, Chain (990482, 990483, 990558 & 990559 Only)

$

$

Not available

6

Simplicity 170865

GUARD, Chain (1690305 Only)

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 6 used on 1690305)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16 (Qty. 6 used on 1690305)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 (Qty. 1 used on 1690305)

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 8 used on 1690305)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty 8 used on 1690305)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 176161

CLAMP, Housing (Qty. 1 used on 1690305)

$

$

Not available

13

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

14

Simplicity 103163

HOUSING ASSY., W/Bearings (990483 & 990559 Only)

$

$

Not available

14

Simplicity 1657872

HOUSING ASSY., W/Bearings (990482, 990558 & 1690305 Only)

$

$

Not available

15

Simplicity 2812808SM

FITTING, Grease (990483 & 990559 Only)

$4.49

$

In Stock, Qty 20+

0

Simplicity 2821133SM

FITTING, Grease (990482, 990558 & 1690305 Only)
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1 (Qty. 1 used on 1690305 Only)

$

$

Not available

17

Simplicity 1924940SM

WASHER, Plain, 3/8 (Qty. 5 used on 1690305)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 2177434C

SKID

$

$

Not available

19

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

20

Simplicity 106058

CHAIN

$

$

Not available

21

Simplicity 106844

SHAFT ASSY. (990483 & 990559 Only)

$

$

Not available

21

Simplicity 2106827SM

SHAFT ASSY. (990482, 990558 & 1690305 Only)

$

$

Not available

22

Simplicity 1685135

STUD KIT (Includes Ref. Nos. 23, 24 & 25)

$

$

Not available

23

Simplicity 2121121

SPACER

$

$

Not available

24

Simplicity 933254

SCREW, Flange, Whiz, 3/8-16 x 2-1/4

$

$

Not available

25

Simplicity 2828352

LOCKNUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 928699

NUT, Speed (990482, 990483, 990558 & 990559 Only)

$

$

Not available

27

Simplicity 106880

CLIP, Speed (990482, 990483, 990558 & 990559 Only)

$

$

Not available

28

Simplicity 2828688

SCREW, Self Tapping, #10 x 1/2 (990482, 990483, 990558 & 990559 Only)

$

$

Not available

29

Simplicity 1960617SM

SETSCREW, 1/4-28 x 1/4 (990482, 990483, 990558 & 990559 Only)

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 2161069

FLANGE, Bearing

$

$

Not available

31

Simplicity 2106653SM

SPROCKET

$98.99

$

Usually ships in 2-12 days

0

32

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

33

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

34

Simplicity 2106732

BEARING, Cartridge (990482, 990483, 990558 & 990559 Only)

$

$

Not available

34

Simplicity 1663347

BEARINGS, Cartridge (1690305 Only)

$

$

Not available

35

Simplicity 106745

PLATE, Side (990482, 990483, 990558 & 990559 Only)

$

$

Not available

35

Simplicity 170754

PLATE, Side (1690305 Only)

$

$

Not available

36

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

37

Simplicity 106838

SCRAPER, Body (990483 & 990559 Only)

$

$

Not available

37

Simplicity 2106831SM

SCRAPER, Body (990482, 990558 & 1690305 Only)

$

$

Not available

38

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

39

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

41

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

42

Simplicity 2151040SM

KEY, Hi-Pro

$9.49

$

In Stock, only 2 left!

0

43

Simplicity 106839

ROTOR ASSY. (990483 & 990559 Only)

$

$

Not available

43

Simplicity 1663350

ROTOR ASSY. (990482, 990558 & 1690305 Only)

$

$

Not available

44

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0
