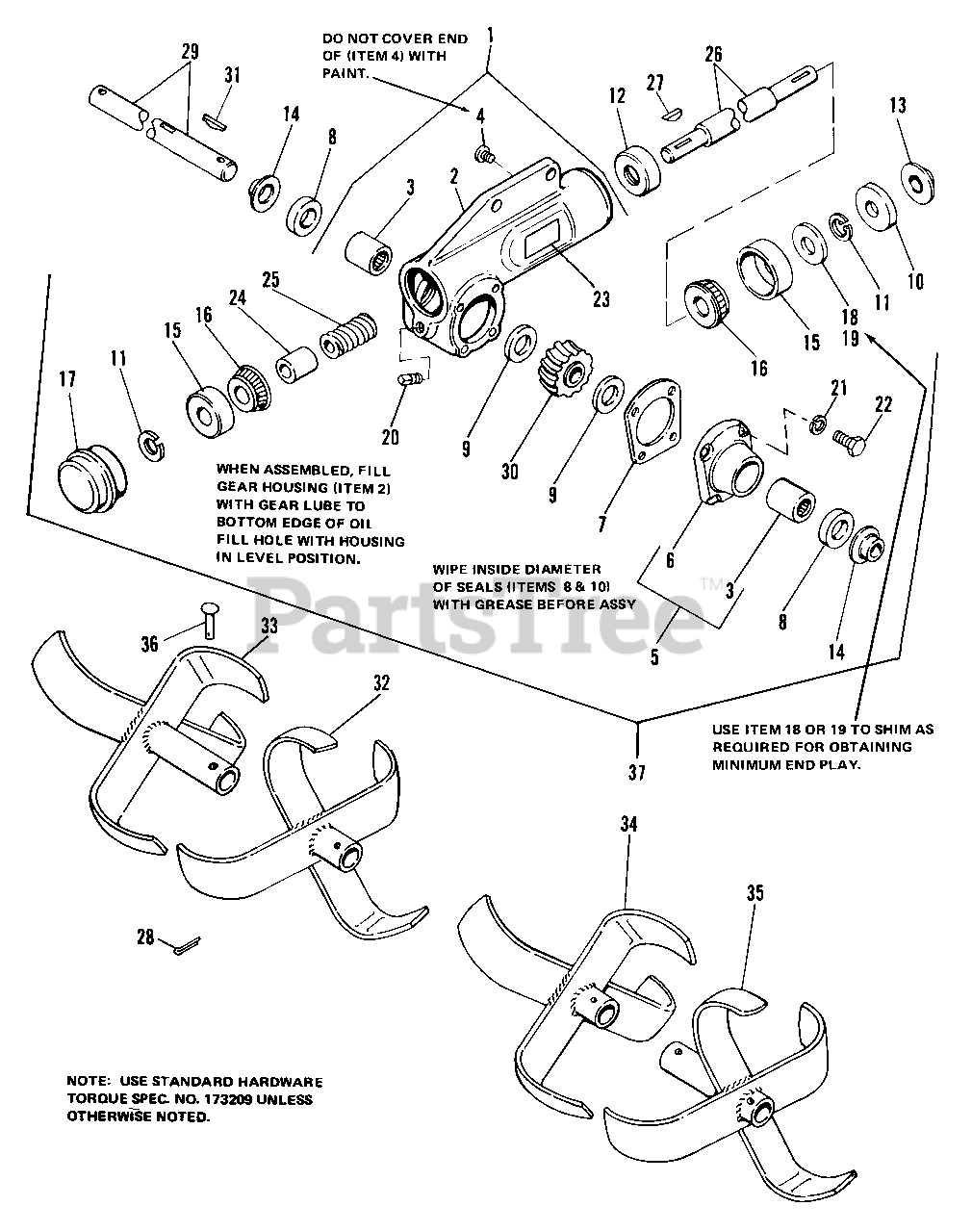

1004 (1690238) - Simplicity Roticul Tiller, 4hp Tine & Worm Housing Group Parts Diagram

Roticul Tiller, 4hp

Tine & Worm Housing Group Parts Diagram

  • Title

1

Simplicity 1657354

HOUSING, BEARING & VENT ASSY

$

$

Not available

2

HOUSING, Worm Drive (See Ref. No. 1)

$

$

Not available

3

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

5

Simplicity 1655348

BEARING & COVER ASSY, Needle

$

$

Not available

6

COVER (See Ref. No. 5)

$

$

Not available

7

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 3 left!

0

8

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

9

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

10

Simplicity 2118393SM

SEAL, Oil

$

$

Not available

11

Simplicity 118396

RING, Retaining

$

$

Not available

12

Simplicity 118399

CUP

$

$

Not available

13

Simplicity 118400

SHIELD

$

$

Not available

14

Simplicity 2118403SM

SHIELD

$8.49

$

In Stock, only 2 left!

0

15

Simplicity 2154393SM

CUP, Bearing

$22.99

$

In Stock, only 3 left!

0

16

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

17

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

18

Simplicity 170885

RING, Backing

$

$

Not available

19

Simplicity 171762

RING, Backing

$

$

Not available

20

Simplicity 2801653

PLUG, Oil

$

$

Not available

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

23

Simplicity 1609457

DECAL, Oil Fill

$

$

Not available

24

Simplicity 118398

SPACER

$

$

Not available

25

Simplicity 118492

WORM, R.H.

$

$

Not available

26

Simplicity 170888

SHAFT, Worm

$

$

Not available

27

Simplicity 911171

KEY, Hi-Pro

$

$

Not available

28

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

29

Simplicity 118021

SHAFT, Worm Gear

$

$

Not available

30

Simplicity 2118022SM

GEAR, Worm

$286.99

$

Usually ships in 2-12 days

0

31

Simplicity 2830246SM

KEY, Woodruff
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

32

Simplicity 1654175

TINE ASSY, R.H., Inner

$

$

Not available

33

Simplicity 1654179

TINE ASSY, R.H., Outer

$

$

Not available

34

Simplicity 1654176

TINE ASSY, L.H., Inner

$

$

Not available

35

Simplicity 1654180

TINE ASSY, L.H., Outer

$

$

Not available

36

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

37

Simplicity 1609000

WORM DRIVE ASSY

$

$

Not available
