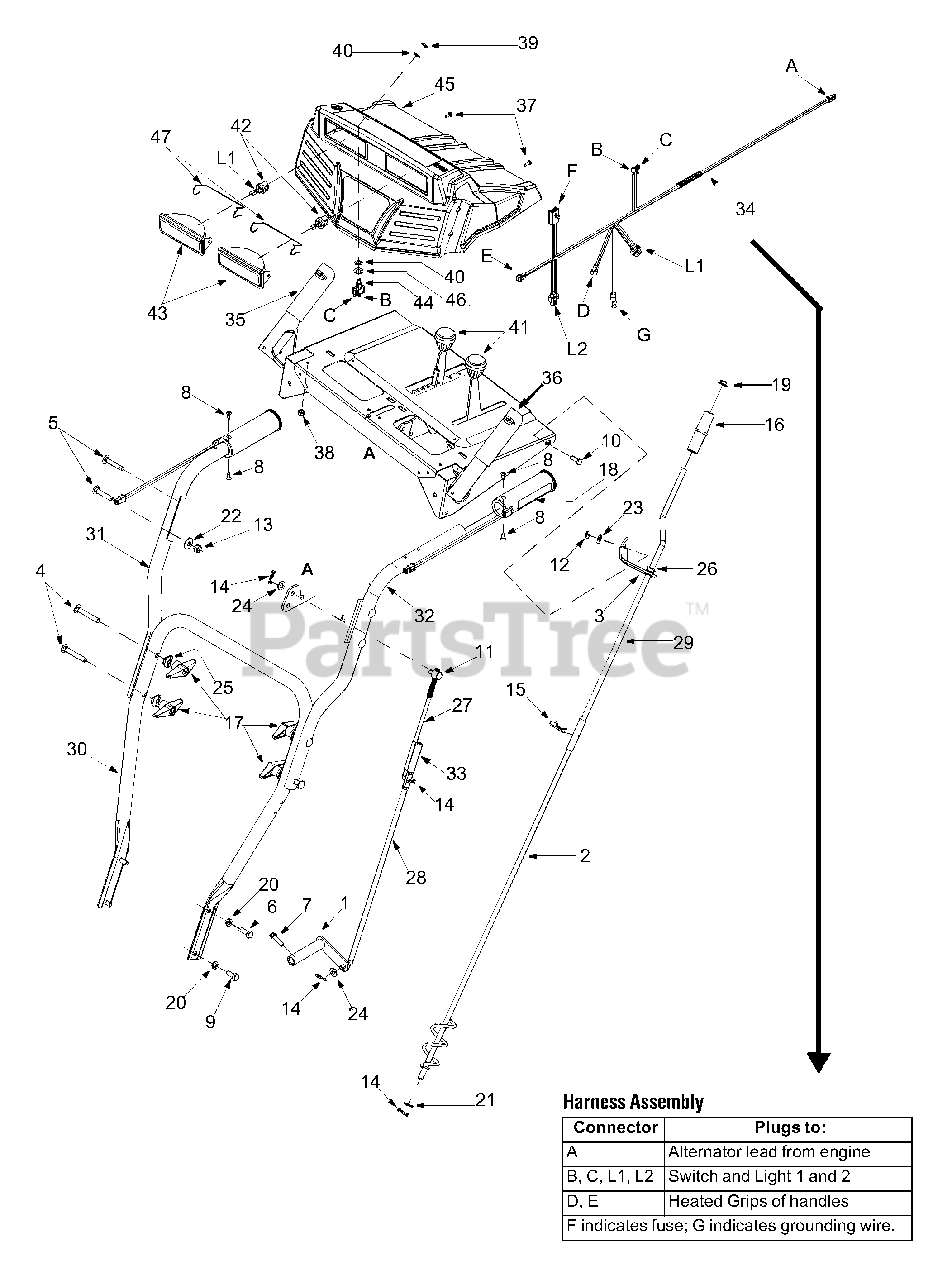

10030 (31AH5W75101) - Troy-Bilt Storm 30" Snow Thrower (2004) Handle Parts Diagram

Storm 30" Snow Thrower

Handle Parts Diagram

  • Title
1

Troy-Bilt 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Troy-Bilt 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-0053B

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

Troy-Bilt 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

Troy-Bilt 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

Troy-Bilt 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0449

Carriage Screw 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-0643

Hex Screw 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

7

Troy-Bilt 710-0788

TT Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 2 left!

0

8

$4.49

$

In Stock, Qty 5

0

9

Troy-Bilt 710-1880

Hex Screw 5/16-18 x 0.75"

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 710-3015

Hex Screw 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 712-3068

Lock Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

14

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

17

$6.99

$

In Stock, Qty 9

0

18

Troy-Bilt 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

19

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

26

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 747-0621

Shift Rod: Lower

$

$

Not available

29

Troy-Bilt 747-0737

Chute Crank: Upper
(Superseded to 747-0737-0637)

Variations

Troy-Bilt 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

Troy-Bilt 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 749-0952A

Handle: L Style Fold RH

Variations

Troy-Bilt 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

32

Troy-Bilt 749-0953A

Handle: L Style Fold LH

Variations

Troy-Bilt 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

Troy-Bilt 750-0963

Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 629-04007

Harness Assy.
(Superseded to 929-04007)

$

$

Not available

35

Troy-Bilt 684-0036A

Handle Engagement RH: Black

$44.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 684-0037B

Handle Engagement LH: Black

$38.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 710-1003

B Screw #10-16 x 0.625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

38

$4.49

$

In Stock, Qty 20+

0

39

$

$

Not available

40

Troy-Bilt 716-0398

Toggle Switch

$

$

Not available

41

Troy-Bilt 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

42

Troy-Bilt 725-1658

Halogen Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 725-1672

Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 725-1756

Toggle Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 731-04068

Handle Panel
(Superseded to 931-04068)

$

$

Not available

46

Troy-Bilt 736-0226

Flat Washer.474 x.879 x.064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0
