10030 (31AH5W75063) - Troy-Bilt Storm 30" Snow Thrower (2004) General Assembly Parts Diagram

Storm 30" Snow Thrower

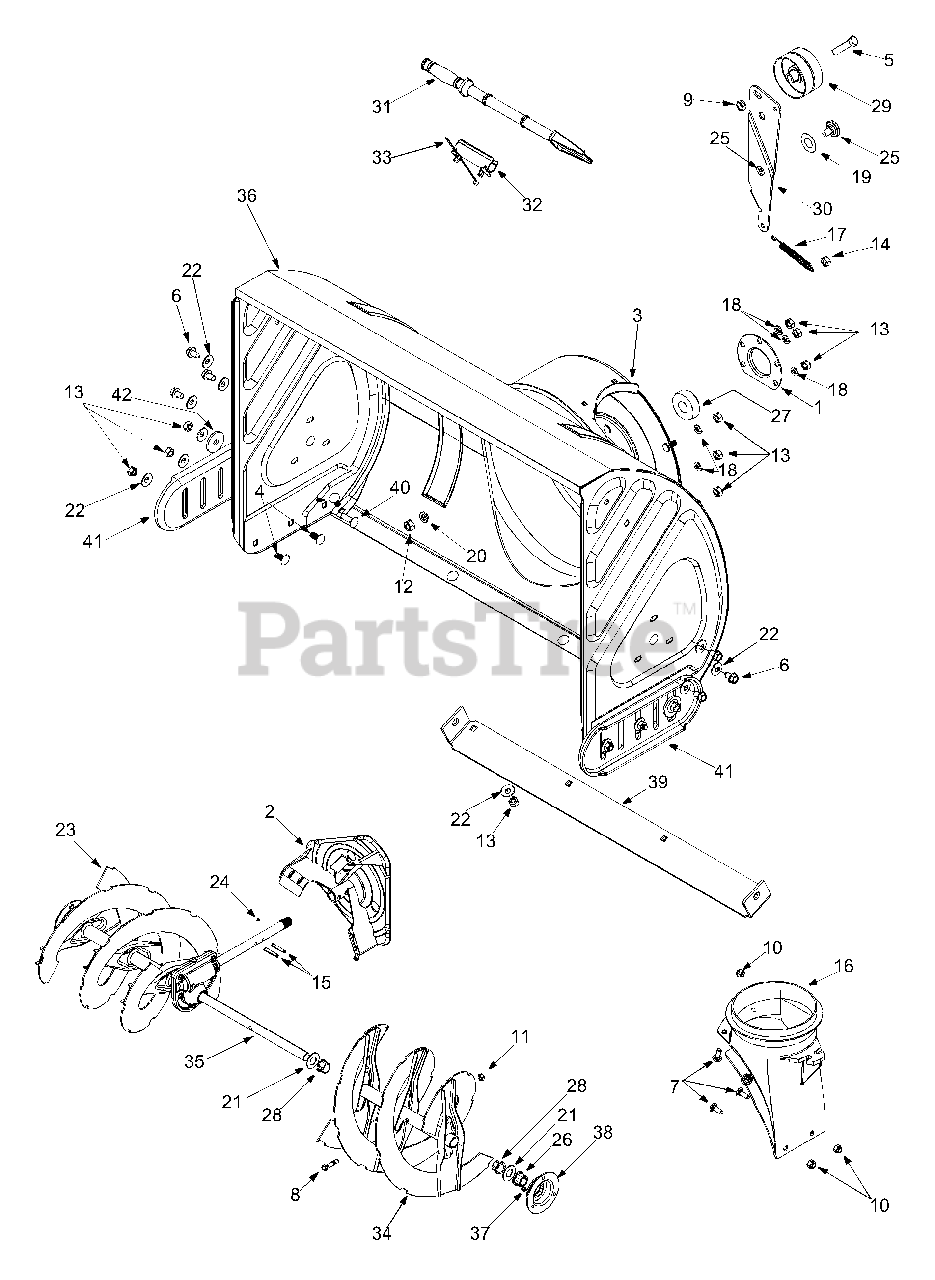

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 05931A

Bearing Housing

$10.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

Troy-Bilt 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 1 left!

0

Troy-Bilt 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 1 left!

0

$90.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 705-5226

Chute Reinforcement

Variations

Troy-Bilt 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

Troy-Bilt 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

6

Troy-Bilt 710-0726

TT Screw 5/16-12 x 0.75"

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 15

0

8

Troy-Bilt 710-0890A

Shear Bolt

$1.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0116

Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

10

Troy-Bilt 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-0429

Lock Nut

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-3068

Hex Lock Nut
(Superseded to 912-3009)

$

$

Not available

15

Troy-Bilt 715-0114

Spring Pin

$9.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-1379C

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0167

Flat Washer
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 7

0

20

Troy-Bilt 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 605-5248C

Spiral Assembly RH 30"
(Superseded to 684-04186-0637)

Variations

Troy-Bilt 605-5248C-0637

Auger Spiral Assembly, RH 30" - POWDER BLACK (0637)

$201.99

$

Usually ships in 3-6 days

0

$201.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 737-0318

Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 741-0493A

Flange Bearing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 784-5632B

Auger Idler Bracket
(Superseded to 984-0064-0637)

Variations

Troy-Bilt 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 731-2643

Chute Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 731-2635

Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

33

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 605-5249C

Spiral Assembly LH 30"
(Superseded to 684-04187-0637)

Variations

Troy-Bilt 605-5249C-0637

Auger Spiral Assembly, LH 30" - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 618-0417A

30" Auger Gear Box Assembly
(Superseded to 918-0417B)

$400.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 684-04004

Auger Housing Assembly
(Superseded to 684-04004-0638)

Variations

Troy-Bilt 684-04004-0638

HOUSING ASM-30" TB - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

37

Troy-Bilt 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 784-0399

Bearing Housing
(Superseded to 784-5618A-0637)

$13.99

$

In Stock, Qty 6

0

39

Troy-Bilt 784-5575

Shave Plate
(Superseded to 790-00119-0637)

Variations

Troy-Bilt 784-5575-0637

Shave Plate, 30" Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 3 left!

0

$39.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 710-0276

Carriage Screw 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 12

0

41

Troy-Bilt 784-5038B

Skid Shoe
(Superseded to 784-5038B-0637)

Variations

Troy-Bilt 784-5038B-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 11

0

Troy-Bilt 784-5038B-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 11

0

$27.99

$

In Stock, Qty 11

0

42

Troy-Bilt 736-0320

Flat Washer.38 x 1.38 x.125

$6.99

$

In Stock, Qty 7

0
