10030 (31AH5W75063) - Troy-Bilt Storm 30" Snow Thrower (2003) Engine Assembly Parts Diagram

Storm 30" Snow Thrower

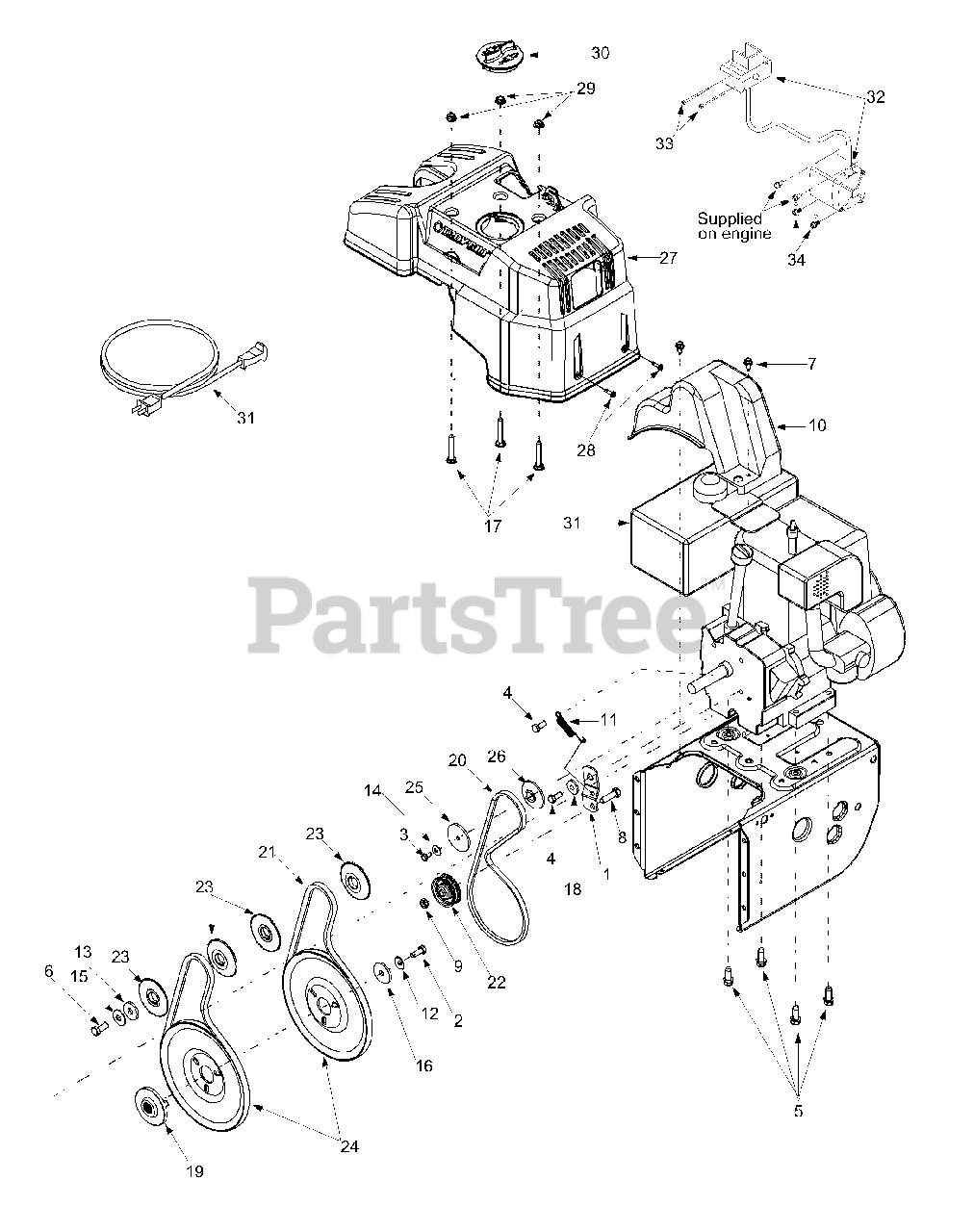

Engine Assembly Parts Diagram

  • Title

1

MTD 05896A

Idler Bracket: Drive Clutch

Variations

Troy-Bilt 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 710-1245B

Hex Bolt 5/16-24 x .875"

$8.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0230

Hex Screw 1/4-28 x .50"

$

$

Not available

4

Troy-Bilt 710-0627

Hex Screw 5/16-24 x .750"

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0654A

TT Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0696

Hex Screw 3/8-24 x .875"

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1652

TT Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3005

Hex Screw 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0181

Jam Nut

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

12

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0247

Flat Washer .406 x 1.25

$9.49

$

In Stock, Qty 12

0

14

Troy-Bilt 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0331

Bell Washer .390 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 736-0505

Flat Washer .34 x 1.5 x .150

$6.49

$

In Stock, Qty 11

0

17

UNKNOWN

$

$

Not available

18

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-0360

Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 754-0430B

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 756-0313

Flat Idler Pulley

$26.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 756-0986

Pulley Half

$

$

Not available

26

Troy-Bilt 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

27

Troy-Bilt 731-04049

Shroud
(Superseded to 984-04014A)

$

$

Not available

28

Troy-Bilt 710-04082

Hex Screw #10-16 x .75"

$

$

Not available

29

Troy-Bilt 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 684-04011

Spark Plug Access

$15.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

32

Troy-Bilt 7511A173106

Electric Starter

$

$

Currently unavailable

33

MTD 7514289474

Hex Screw #6-32 x 2.5

$

$

Not available

34

MTD 75142896

Hex Screw 1/4-20 x .500

$

$

Not available
