10030 (31AH5W75063) - Troy-Bilt Storm 30" Snow Thrower (2003) Drive Assembly Parts Diagram

Storm 30" Snow Thrower

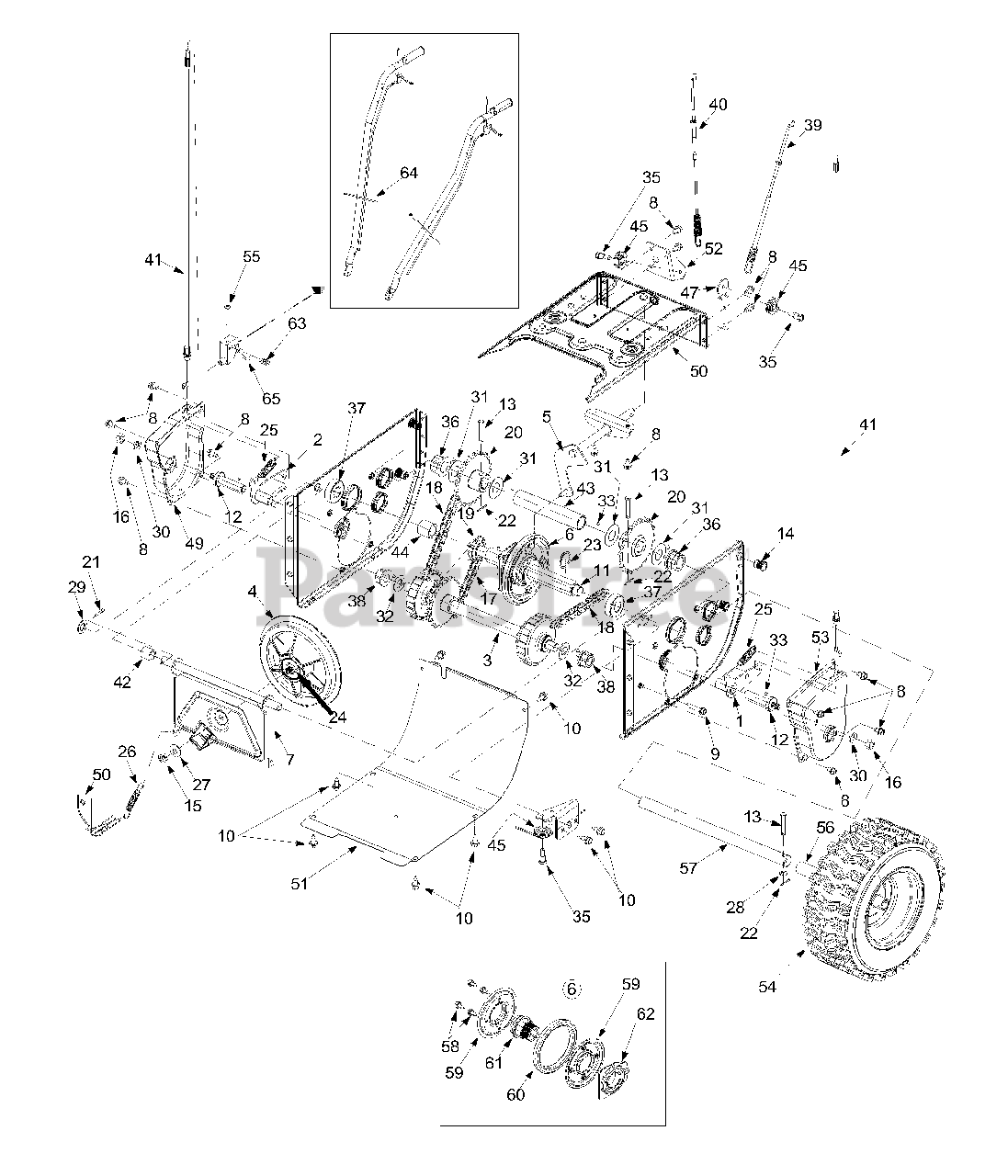

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 618-0043

Dogg Assembly RH

$23.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 618-0044

Dogg Assembly LH

$24.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 618-0575

Drive Shaft

$

$

Not available

4

Troy-Bilt 656-0012A

Friction Wheel Disc Assembly
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

5

Troy-Bilt 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

Troy-Bilt 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

Note: (Includes items 58 to 62)

$138.99

$

In Stock, Qty 17

0

7

MTD 684-0131A

Support Bracket
(Superseded to 684-0131A-0637)

$

$

Not available

8

Troy-Bilt 710-0599

TT screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0809

TT Screw 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 17

0

10

Troy-Bilt 710-1652

TT Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 711-1267

Drive Shaft

$70.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 711-1268

Actuator Shaft

$

$

Not available

13

Troy-Bilt 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 712-0703A

Nut Insert

$7.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-3017

Hex Nut

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 713-0374

Chain

$25.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

20

MTD 713-0472

Sprocket

$

$

Not available

21

Troy-Bilt 714-0474

Hairpin Clip

$4.99

$

In Stock, Qty 13

0

22

Troy-Bilt 714-0474

Hairpin Clip

$4.99

$

In Stock, Qty 13

0

23

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 721-0263

Loctite (TM)

$

$

Currently unavailable

25

Troy-Bilt 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0142

Flat Washer

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 737-0318

Loctite (TM)
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

?34

Troy-Bilt 737-04027

Lubricant

$

$

Currently unavailable

35

Troy-Bilt 738-0924

C Screw 1/4-28 x .375"
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

36

Troy-Bilt 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 741-1111

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 746-0898B

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

41

Troy-Bilt 746-0956

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 15

0

42

Troy-Bilt 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

43

Troy-Bilt 750-1161A

Support Tube: Axle

$46.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 750-1162

Spacer

$

$

Not available

45

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

?46

Troy-Bilt 784-5590

Shft Frame Bracket

Variations

Troy-Bilt 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 784-5687A

Bracket: Auger Clutch Cable Guide
(Superseded to 784-5687A-0637)

Variations

Troy-Bilt 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

?48

Troy-Bilt 784-5689A

Bracket: Auger Cable Front Support
(Superseded to 784-5689A-0637)

Variations

Troy-Bilt 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

49

Troy-Bilt 784-5730A

Shaft Retainer
(Superseded to 784-5730A-0637)

Variations

Troy-Bilt 784-5730A-0637

HOUSING-ACTR SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

50

Troy-Bilt 784-5731B

Frame
(Superseded to 684-0179)

$

$

Not available

51

Troy-Bilt 784-5732

Frame Cover
(Superseded to 784-5638A)

Variations

Troy-Bilt 784-5732-0650

FRAME COVER - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 784-5732-0662

COVER-FRAME - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 784-5732-0665

COVER-FRAME - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 784-5732-0689

COVER-FRAME - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 784-5732-0716

FRAME COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

52

Troy-Bilt 784-5733

Roller Bracket
(Superseded to 784-5733-0637)

Variations

Troy-Bilt 784-5733-0637

BRACKET-DRIVE ROLL - POWDER BLACK (0637)

$

$

Not available

$

$

53

Troy-Bilt 784-5740

Shaft Retainer
(Superseded to 784-5740-0637)

Variations

Troy-Bilt 784-5740-0637

HOUSING-ACTR SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

54

Troy-Bilt 634-0227A

Wheel Assembly LH: Complete

$

$

Not available

Troy-Bilt 634-0228A

Wheel Assembly RH: Complete

$

$

Not available

55

Troy-Bilt 710-1233

Oval C-Sunk Machine Screw

$4.99

$

In Stock, Qty 11

0

56

MTD 731-04043

Spacer

$

$

Not available

57

Troy-Bilt 738-0994A

Axle: Wheel

$67.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 710-1652

TT Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 784-5617A

Friction Plate
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

60

Troy-Bilt 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

62

Troy-Bilt 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 712-0127

Weld Nut

$3.49

$

In Stock, Qty 13

0

64

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 746-0950

Turn Trigger
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0
