10030 (31AH5LQ5766) - Troy-Bilt Storm 30" Snow Thrower (2005) Drive Parts Diagram

Storm 30" Snow Thrower

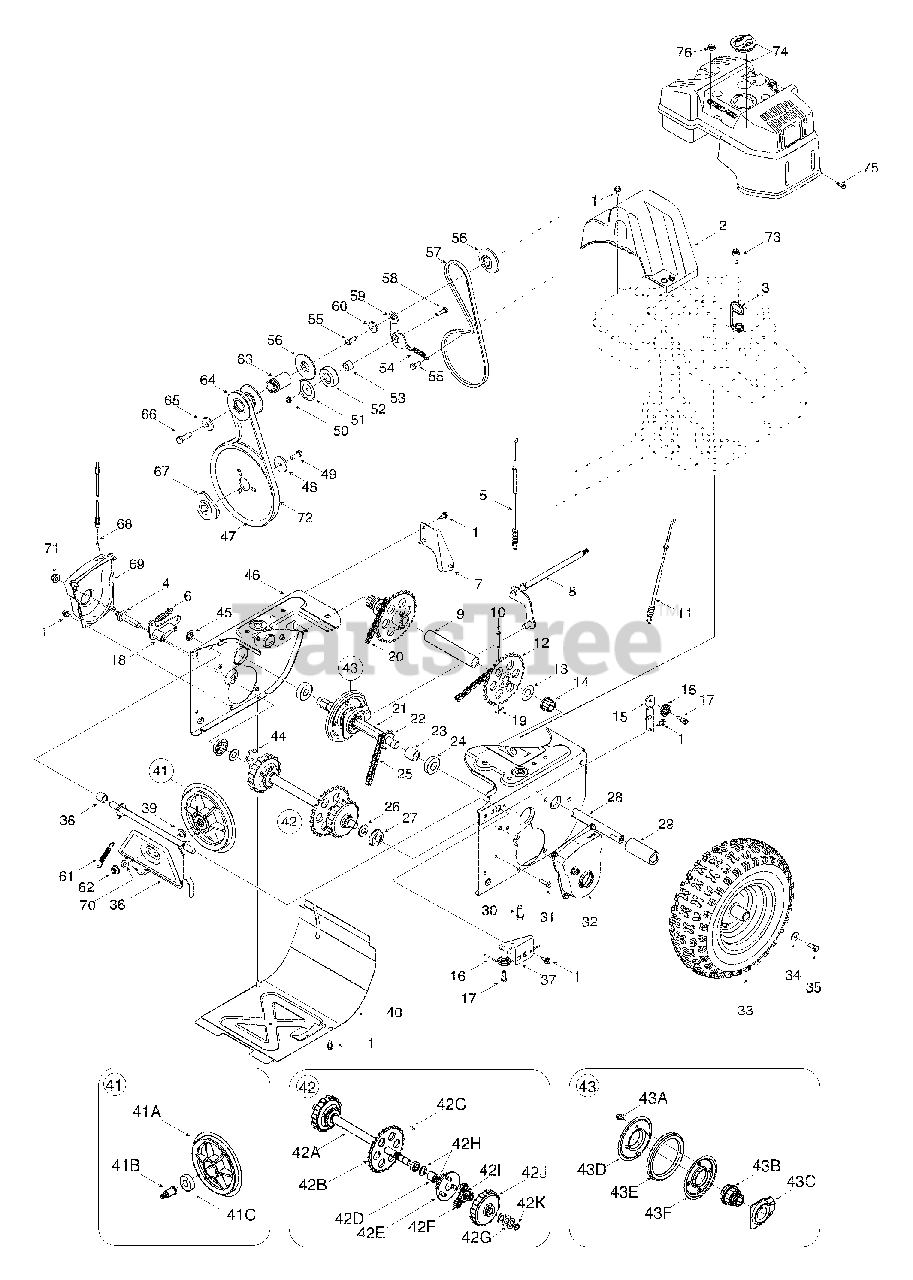

Drive Parts Diagram

  • Title

1

Troy-Bilt 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 731-04792

Belt Cover
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 711-1268A

Actuator Shaft

$

$

Not available

5

Troy-Bilt 746-04086

Drive Clutch Cable
(Superseded to 946-04086)

$40.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 790-00055

Roller Bracket

Variations

Troy-Bilt 790-00055-0637

BRACKET-DRIVE CABLE - POWDER BLACK

$

$

Not available

$

$

8

MTD 684-04140

Shift Rod Assembly

$

$

Not available

9

Troy-Bilt 750-04312

Axle Support Tube
(Superseded to 750-04312A)

$

$

Not available

10

Troy-Bilt 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 713-04009

Sprocket
(Superseded to 913-04009)

$

$

Not available

13

Troy-Bilt 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 784-5687A

Auger Clutch Cable Guide
(Superseded to 784-5687A-0637)

Variations

Troy-Bilt 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

16

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

17

Troy-Bilt 738-0924

C Screw, 1/4-28 x 0.375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

18

Troy-Bilt 618-0043

Dogg Assembly - RH

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 618-0044

Dogg Assembly - LH (not shown)

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 714-0507

Hairpin Clip

$4.49

$

In Stock, only 2 left!

0

20

Troy-Bilt 713-0286

Chain

$66.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 711-04270

Drive Shaft
(Superseded to 911-04270)

$

$

Not available

22

Troy-Bilt 713-04015

Sprocket
(Superseded to 913-04015)

$12.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 750-1162

Spacer

$

$

Not available

24

Troy-Bilt 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 713-04011

Chain

$

$

Not available

26

Troy-Bilt 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 741-04076

Ball Bearing

$14.99

$

In Stock, Qty 16

0

28

Troy-Bilt 738-04105A

Axle
(Superseded to 938-04105A)

$

$

Not available

29

Troy-Bilt 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

31

Troy-Bilt 710-0788

TT Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

32

Troy-Bilt 790-00056

Shaft Retainer - LH

Variations

Troy-Bilt 790-00056-0638

RETAINER-LH DRIVE - MTD/TROY-BILT RED

$

$

Not available

$

$

33

Troy-Bilt 634-04145

Wheel Complete - LH

Variations

Troy-Bilt 634-04145-0911

Wheel Assembly, Gray LH X-Track - Carlisle Gray (0911)

$268.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0921

Wheel Complete, LH X-Trac - Carlisle White (0921)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0931

WHEEL COMP-LH X-TRA - Carlisle Beige (0931)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0941

WHEEL COMP-LH X-TRA - Carlisle Yellow (0941)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0961

WHL COMP-LH X-TRA - Carlisle Gray (0961)

$268.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0971

WHEEL COMP-LH X-TRA - Carlisle Yellow (0971)

$234.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146

Wheel Complete - RH

Note: (Not Shown)

Variations

Troy-Bilt 634-04146-0931

Wheel Assembly, RH X-Tra - Carlisle Beige (0931)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0911

WHEEL COMP-RH X-TRA - Carlisle Gray (0911)

$267.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0921

WHL COMP-RH X-TRA - Carlisle White (0921)

$267.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0941

WHEEL COMP-RH X-TRA - Carlisle Yellow (0941)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0961

WHL COMP-RH X-TRA - Carlisle Gray (0961)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0971

WHEEL COMP-RH X-TRA - Carlisle Yellow (0971)

$233.99

$

Usually ships in 3-6 days

0

$217.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0627

Hex Bolt, 5/16-24 x 0.75

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 684-04045

Friction Wheel Support Bracket

Variations

Troy-Bilt 684-04045-0637

Friction Wheel Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

37

Troy-Bilt 790-00096

Auger Cable Guide Bracket
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 790-00054

Frame Cover

Variations

Cub Cadet 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

Troy-Bilt 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

$

$

41

Troy-Bilt 656-0012A

Friction Wheel Disc Assembly
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

41A

Troy-Bilt 756-0648A

Friction Wheel Disc
(Superseded to 956-0648A)

$51.99

$

Usually ships in 3-6 days

0

41B

Troy-Bilt 738-0865

Friction Disc Bearing Pin

$

$

Not available

41C

Troy-Bilt 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

42

MTD 618-04116

Drive Shaft Assembly
(Superseded to 918-04116)

$

$

Not available

42A

Troy-Bilt 711-04271

Drive Shaft
(Superseded to 911-04271)

$

$

Not available

42B

MTD 713-04010

Sprocket
(Superseded to 913-04010)

$

$

Not available

42C

Troy-Bilt 714-0214

Key

$

$

Not available

42D

Troy-Bilt 750-1177

Spacer

$6.49

$

In Stock, only 1 left!

0

42E

MTD 618-0577A

Planetary Carr. Assembly

$

$

Not available

42F

Troy-Bilt 717-1209A

Gear, 12T

$4.99

$

Usually ships in 3-6 days

0

42G

Troy-Bilt 736-0502

Flat Washer
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

42H

Troy-Bilt 736-0336

Flat Washer
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

42I

Troy-Bilt 717-1210A

Gear,18T

$8.99

$

In Stock, only 3 left!

0

42J

Troy-Bilt 717-1495B

Planetary Ring Gear
(Superseded to 917-1495B)

$122.99

$

Usually ships in 3-6 days

0

42K

Troy-Bilt 716-0194

Retainer Ring

$3.99

$

In Stock, only 3 left!

0

43

Troy-Bilt 684-04066

Friction Wheel Assembly
(Superseded to 984-04066)

$108.99

$

Usually ships in 3-6 days

0

43A

Troy-Bilt 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

43B

Troy-Bilt 718-04070

Friction Wheel Hub

$

$

Currently unavailable

43C

Troy-Bilt 618-04169

Bearing Assembly

$

$

Currently unavailable

43D

Troy-Bilt 790-00011

Friction Plate

$13.99

$

Usually ships in 3-6 days

0

43E

Troy-Bilt 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

43F

Troy-Bilt 790-00010

Friction Plate

$13.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 726-0221

Speed Nut

$6.49

$

In Stock, only 1 left!

0

46

Troy-Bilt 790-00073

Wheel Drive Frame

Variations

Cub Cadet 790-00073-4044

FRM DR WHL - CRAFTSMAN RED

$

$

Not available

Troy-Bilt 790-00073-0638

FRAME-DRIVE WHEEL - MTD/TROY-BILT RED

$

$

Not available

Troy-Bilt 790-00073-0691

FRAME-DRIVE WHEEL - BLACK JACK

$

$

Not available

Troy-Bilt 790-00073-0716

FRAME-DRIVE WHEEL - CUB YELLOW-99

$

$

Not available

Troy-Bilt 790-00073-4044

FRM DR WHL - CRAFTSMAN RED

$

$

Not available

$

$

47

Troy-Bilt 756-04109

Auger Pulley

$54.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

49

Troy-Bilt 710-1245B

Hex Bolt, 5/16-24 x 0.875

$8.49

$

In Stock, only 2 left!

0

50

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 790-00062

Bearing Washer
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 750-04230

Spacer
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

54

Troy-Bilt 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 8

0

55

Troy-Bilt 710-0627

Hex Bolt, 5/16-24 x 0.75

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 756-04114

Pulley Half

$13.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 754-0456

V-Belt, 3/8 x 28.6
(Superseded to 954-0456)

$29.99

$

In Stock, Qty 5

0

58

Troy-Bilt 710-0597

Hex Bolt, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

59

Troy-Bilt 790-00082

Drive Clutch Idler Bracket

Variations

Troy-Bilt 790-00082-0637

Drive Idler Bracket - POWDER BLACK

$

$

Not available

$

$

60

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 750-04303

Spacer

$17.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

65

Troy-Bilt 736-0247

Flat Washer

$9.49

$

In Stock, Qty 16

0

66

Troy-Bilt 710-0191

Hex Bolt, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

67

Troy-Bilt 748-04053

Pulley Adapter
(Superseded to 748-04053A)

$22.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 746-0956

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 7

0

69

MTD 790-00057

Shaft Retainer - RH

$

$

Not available

70

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 754-04050

V-Belt,.500 x 35.00 Lg
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 710-0602

TT Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 684-04014A

Engine Shroud
(Superseded to 984-04014A)

$

$

Not available

75

Troy-Bilt 710-04082

Screw, #10-16 x.75

$

$

Not available

76

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0
