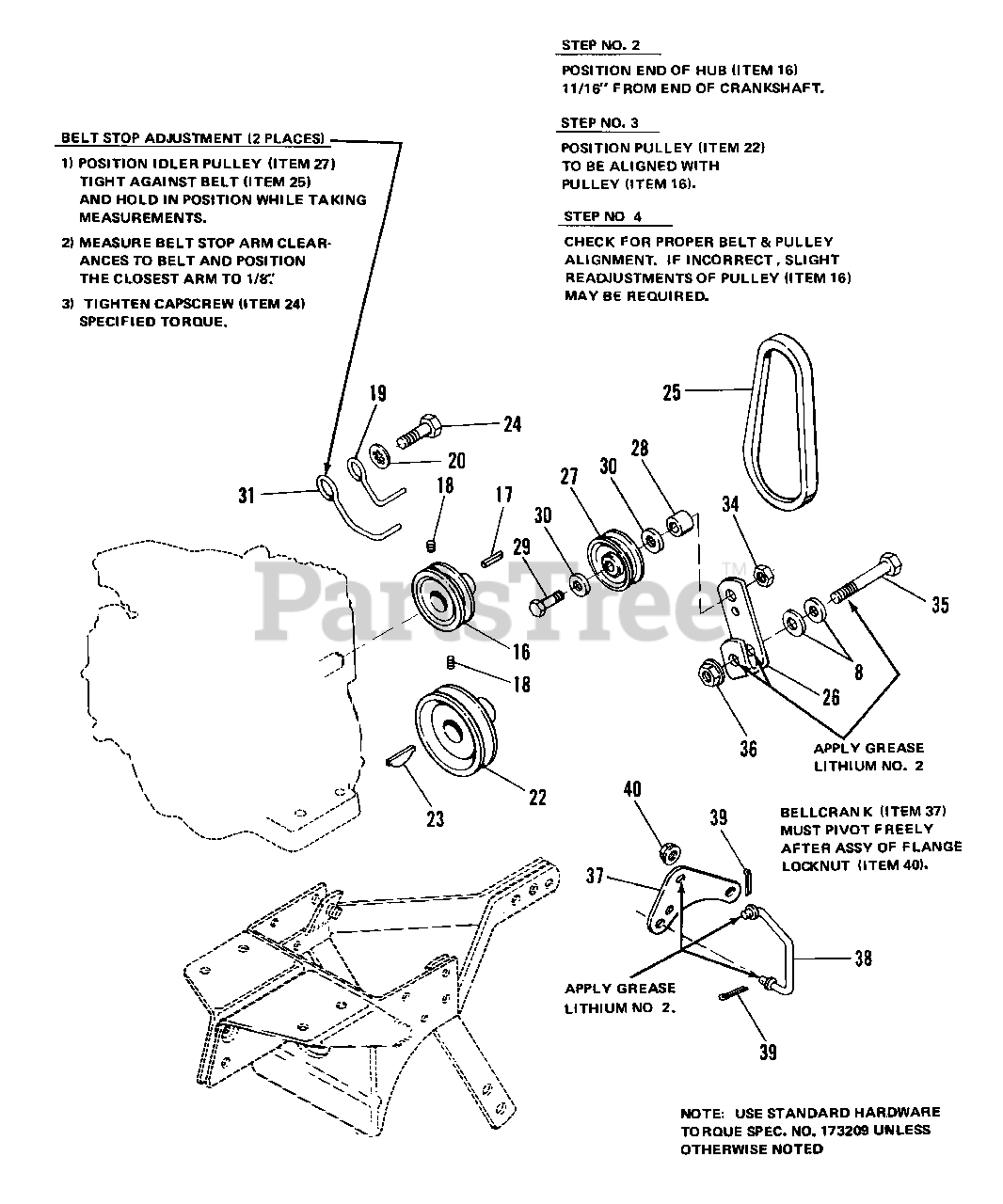

1003 (1690237) - Simplicity Roticul Tiller, 3hp Frame, Engine & Drive Group (1003) - Diagram 2 Parts Diagram

Roticul Tiller, 3hp

Frame, Engine & Drive Group (1003) - Diagram 2 Parts Diagram

  • Title

1

Simplicity 1609357

FRAME ASSY

$

$

Not available

2

Simplicity 118207

STOP, Plate

$

$

Not available

3

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 118469

WHEEL & TIRE ASSY

$

$

Not available

7

Simplicity 2808305

CAPSCREW, Hex, 1/2-13 x 3-1/2

$

$

Not available

8

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

9

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

10

ENGINE, 3 HP, Briggs & Stratton, Model 80202, Type 0833-01

$

$

Not available

11

Simplicity 118463

SHIM

$

$

Not available

12

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

14

Simplicity 106718

DECAL, Simplicity

$

$

Not available

15

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2118027SM

PULLEY, Engine, Forward

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 2805850SM

KEY, Sq., 3/16 x 1

$

$

Not available

18

Simplicity 2828691

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

19

Simplicity 2106545SM

STOP, Belt

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 2809589

LOCKWASHER, 1/2, Int. Tooth

$

$

Not available

21

Simplicity 913901

NUT, Hex, Full. 7/16-20

$

$

Not available

22

Simplicity 118470

PULLEY, Worm Gear

$

$

Not available

23

Simplicity 118439

KEY

$

$

Not available

24

Simplicity 2821370

CAPSCREW, Hex, 1/2-20 x 1

$

$

Not available

25

Simplicity 2118312

BELT, Forward

$

$

Not available

26

Simplicity 1609352

LEVER, Idler Pulley

$

$

Not available

27

Simplicity 2154534SM

PULLEY, Idler, Forward

$32.99

$

Usually ships in 2-12 days

0

28

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

29

Simplicity 2821971

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

30

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

31

Simplicity 118037

STOP, Belt

$

$

Not available

32

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

34

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

35

Simplicity 171337

BOLT, Pivot

$

$

Not available

36

Simplicity 2827557

LOCKNUT, Flange, Whiz

$

$

Not available

37

Simplicity 1609295

BELLCRANK

$

$

Not available

38

Simplicity 1609299

LINK, Rod

$

$

Not available

39

Simplicity 2823360

PIN, Cotter, 1/16 x 24

$

$

Not available

40

Simplicity 2829001

LOCKNUT, Hex, Flange

$

$

Not available

41

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

42

Simplicity 1657127

DECAL, Roticul, L.H.

$

$

Not available

43

Simplicity 170359

COVER, Engine

$

$

Not available

44

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

45

Simplicity 1657123

DECAL, 1003

$

$

Not available

46

Simplicity 1657126

DECAL, Roticul, R.H.

$

$

Not available

47

I.D. PLATE

$

$

Not available

48

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available
