1003 (1600397) - Simplicity Roticul Tiller, 3hp Engine Pulley & Control Group Parts Diagram

Roticul Tiller, 3hp

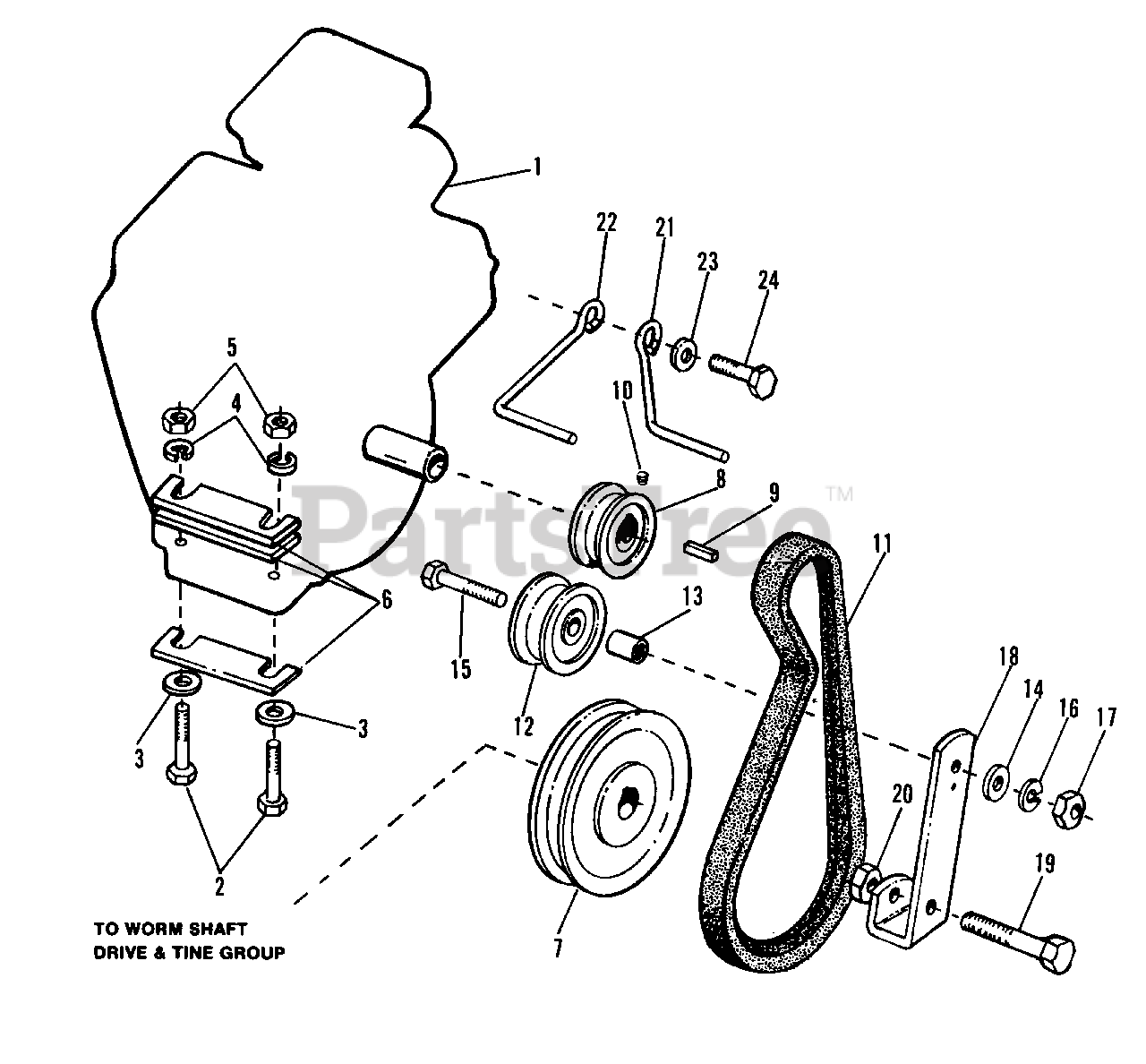

Engine Pulley & Control Group Parts Diagram

  • Title

1

Simplicity 118464

ENGINE

$

$

Not available

2

Simplicity 2819354

CAPSCREW, Hex, 5/16-18 x 2

$

$

Not available

3

Simplicity 2817642

WASHER, Flat, 5/16

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 118463

SHIM

$

$

Not available

7

Simplicity 118470

PULLEY, Driven

$

$

Not available

8

Simplicity 2118027SM

PULLEY, Engine

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 2805850SM

KEY, Square

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 2828691

SETSCREW, Cup

$

$

Not available

11

Simplicity 2118312

BELT, V

$

$

Not available

12

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

13

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 2817642

WASHER, Flat, 5/16

$

$

Not available

15

Simplicity 2821971

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

17

Simplicity 2816950SM

NUT, Hex, 3/8
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 1609352

LEVER, Idler Pulley

$

$

Not available

19

Simplicity 171337

BOLT, Pivot

$

$

Not available

20

Simplicity 2823362

LOCKNUT, Hex, 5/16

$

$

Not available

21

Simplicity 2106545SM

STOP, Belt

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 118037

STOP, Belt

$

$

Not available

23

Simplicity 2809589

LOCKWASHER, 1/2

$

$

Not available

24

Simplicity 2821370

CAPSCREW, Hex, 1/2-20 x 1

$

$

Not available
