10028 (31AE6LO4766) - Troy-Bilt Storm 28" Snow Thrower (2007) Drive Assembly Parts Diagram

Storm 28" Snow Thrower

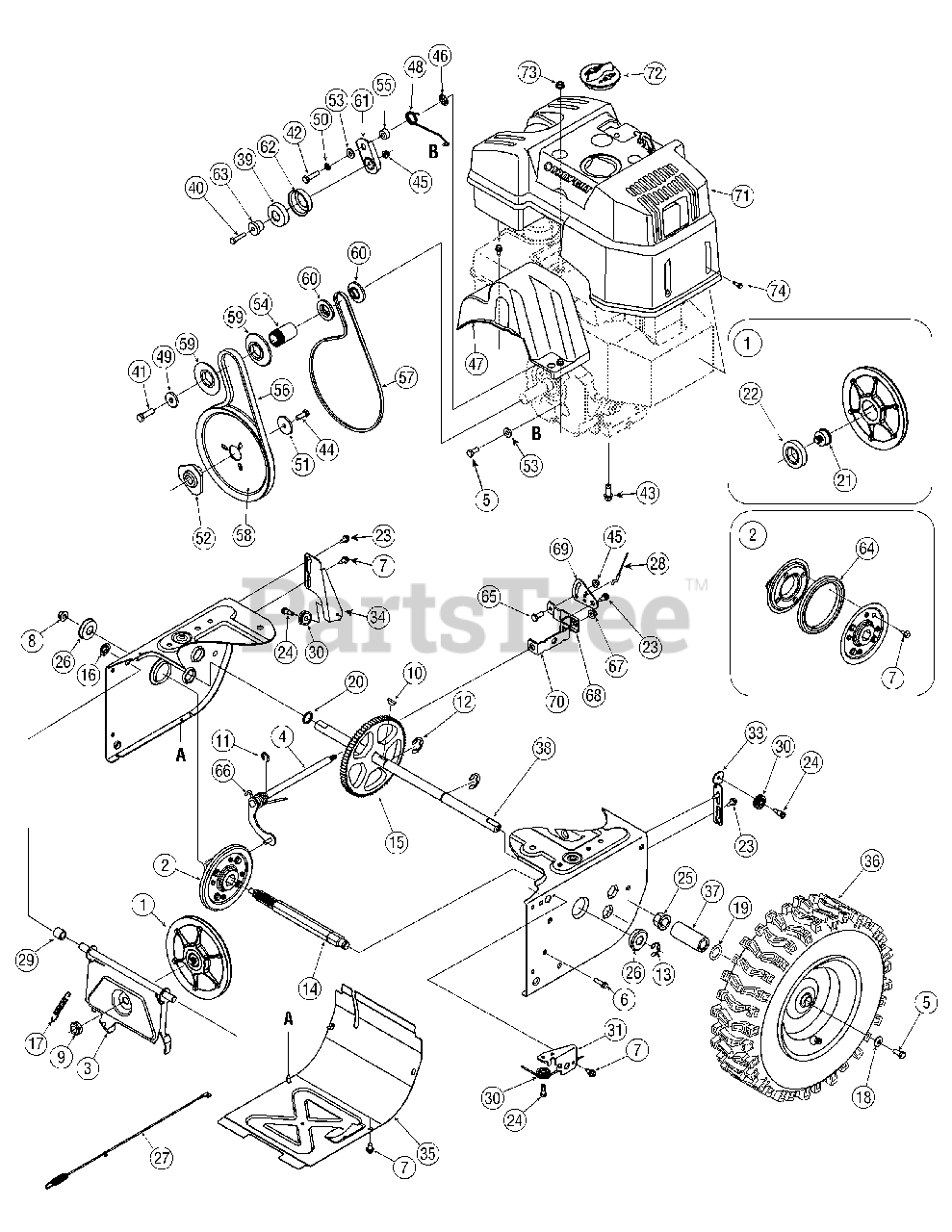

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 656-04025A

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-04153

Friction Wheel Assembly, 5.5 OD
(Superseded to 684-04153C)

$101.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 684-04154

Support Bracket, Friction Wheel
(Superseded to 684-04154B-0637)

Variations

Troy-Bilt 684-04154-0637

BRACKET ASM-SUPPORT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-04156

Shift Assembly, Rod
(Superseded to 684-04156A)

$61.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0627

Hex Screw, 5/16-24, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0413

Nut, Jam Lock, 5/8-18, Gr5, Nylon

$6.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 714-0126

Key, Hi Pro, 3/16 x 3/4 Dia.

$4.99

$

In Stock, Qty 19

0

11

Troy-Bilt 716-0104

E-ring, .500 Dia.
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 716-0136

E-ring, Retaining, .875 Dia.

$8.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 716-0231

E-ring, .750 Dia.

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 717-04209

Hex Shaft, .8125, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 717-04230

Gear, 80-Tooth
(Superseded to 917-04230)

$108.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0287

Washer, Flat, .793 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 738-04164A

Pin, Friction Disc

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 741-04098

Ball Bearing, 30 x 55 x 13

$21.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 738-04184A

Screw, Shoulder, .37 x .105, 1/4-20

$6.99

$

In Stock, Qty 15

0

24

Troy-Bilt 738-0924A

Screw, 1/4-28, .375

$6.99

$

In Stock, Qty 5

0

25

Troy-Bilt 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 741-0563

Bearing, Ball, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

27

Troy-Bilt 746-04229

Clutch Cable, Wheel, 44.95"
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 746-04228

Cable, Speed Selector
(Superseded to 746-04228A)

$23.99

$

In Stock, Qty 7

0

29

Troy-Bilt 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 16

0

31

Troy-Bilt 790-00096

Front Guide Bracket, Auger Cable
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 790-00180

Frame
(Superseded to 790-00180D)

Variations

Cub Cadet 790-00180C-0637

FRAME-WHL DRV 600 - POWDER BLACK

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0665

FRAME-DRIVE HSG - YARDMAN GREEN

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-4044

FRAME-DRIVE HSG - CRAFTSMAN RED

$153.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 790-00206A

Guide Bracket, Auger Cable
(Superseded to 790-00206B)

Variations

Troy-Bilt 790-00206A-0637

Auger Cable Guide Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$8.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 790-00207A

Guide Bracket, Drive Cable
(Superseded to 790-03997)

Variations

Troy-Bilt 790-00207A-0637

Clutch Drive Cable - POWDER BLACK (0637)

$5.49

$

In Stock, only 4 left!

0

$5.49

$

In Stock, only 4 left!

0

35

Troy-Bilt 790-00226

Cover, Frame

Variations

Troy-Bilt 790-00226-0637

Frame Cover - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 790-00226-0638

Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

36

Troy-Bilt 634-04145

Wheel Assembly Left-Hand 16 x 4.8 x 8

Variations

Troy-Bilt 634-04145-0911

Wheel Assembly, Gray LH X-Track - Carlisle Gray (0911)

$268.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0921

Wheel Complete, LH X-Trac - Carlisle White (0921)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0931

WHEEL COMP-LH X-TRA - Carlisle Beige (0931)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0941

WHEEL COMP-LH X-TRA - Carlisle Yellow (0941)

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0961

WHL COMP-LH X-TRA - Carlisle Gray (0961)

$268.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04145-0971

WHEEL COMP-LH X-TRA - Carlisle Yellow (0971)

$234.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 634-04146

Wheel Assembly Right-Hand 16 x 4.8 x 8

Variations

Troy-Bilt 634-04146-0931

Wheel Assembly, RH X-Tra - Carlisle Beige (0931)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0911

WHEEL COMP-RH X-TRA - Carlisle Gray (0911)

$267.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0921

WHL COMP-RH X-TRA - Carlisle White (0921)

$267.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0941

WHEEL COMP-RH X-TRA - Carlisle Yellow (0941)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0961

WHL COMP-RH X-TRA - Carlisle Gray (0961)

$248.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04146-0971

WHEEL COMP-RH X-TRA - Carlisle Yellow (0971)

$233.99

$

Usually ships in 3-6 days

0

$217.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 634-04140

Rim Only
(Superseded to 634-04173-0662)

Variations

Troy-Bilt 634-04140-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 734-2038

Tire Only
(Superseded to 734-2038-0901)

Variations

Troy-Bilt 734-2038-0901

TIRE-16X4.8X8XTRAC - Carlisle (0901)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 734-0255

Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 738-04168

Axle, .75 x 22"
(Superseded to 938-04493)

$63.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 710-0106

Hex Screw, 1/4-20, 1.25, Gr5

$3.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 710-0191

Hex Screw, 3/8-24, 1.25, Gr8

$4.99

$

In Stock, Qty 8

0

42

Troy-Bilt 710-04520

Hex Screw, 5/16-24, 1.25, Gr5

$

$

Not available

43

Troy-Bilt 710-0654A

Screw, Sems, 3/8-16, 1.00

$4.49

$

In Stock, only 3 left!

0

44

Troy-Bilt 710-1245B

Hex Screw, 5/16-24, .875, Gr8

$8.49

$

In Stock, only 2 left!

0

45

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 726-04012

Nut, Push-on, .25 Dia.

$7.49

$

In Stock, Qty 9

0

47

Troy-Bilt 731-04792A

Cover, Belt
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 732-04308

Spring, Torsion, .850 ID x .354
(Superseded to 732-04308C)

$5.49

$

In Stock, only 3 left!

0

49

Troy-Bilt 736-0247

Washer, Flat, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 16

0

50

Troy-Bilt 736-0119

Washer, Lock .3125
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

52

Troy-Bilt 748-04053

Pulley, Adapter, .75 Dia.
(Superseded to 748-04053A)

$22.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 748-04112

Spacer, Shoulder, .317 x .50 x .102
(Superseded to 748-04112B)

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 750-04477

Spacer, .340 x .750 x .360
(Superseded to 750-04477A)

$5.49

$

In Stock, only 4 left!

0

56

Troy-Bilt 754-04050

Belt, Auger Drive
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 754-04088

Belt, Wheel Drive

$15.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 756-04109

Pulley, Auger Drive, 8.1 x .5

$54.99

$

In Stock, only 2 left!

0

59

Troy-Bilt 756-04113

Pulley, Half, V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

60

Troy-Bilt 756-04179

Pulley, Half, 1/4-V x 1.5 OD
(Superseded to 956-04179)

$8.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 790-00208

Idler Bracket, Wheel Drive
(Superseded to 790-00208D)

$8.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 790-00230

Sleeve, Bearing Idler

$7.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 750-04571

Spacer, Shoulder, .26 x .79 x .538

$6.99

$

In Stock, only 3 left!

0

64

Troy-Bilt 735-04054

Rubber, Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 710-0751

Hex Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 732-04311

Spring, Torsion, .750 ID x .968
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

68

Troy-Bilt 790-00156

Bracket, Shift Spacer

$7.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 790-00217A

Pivot Bracket, Speed Selector

Variations

Troy-Bilt 790-00217A-0637

Pivot Bracket - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

$9.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 790-00218A

Shift Bracket, Speed Selector

Variations

Troy-Bilt 790-00218A-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 731-04049A

Engine Shroud, Troy-Bilt
(Superseded to 984-04014A)

$

$

Not available

72

Troy-Bilt 684-04011

Cap, Spark Plug Access

$15.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, GR5

$3.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 710-04082

Screw, #10-16, .75

$

$

Not available
