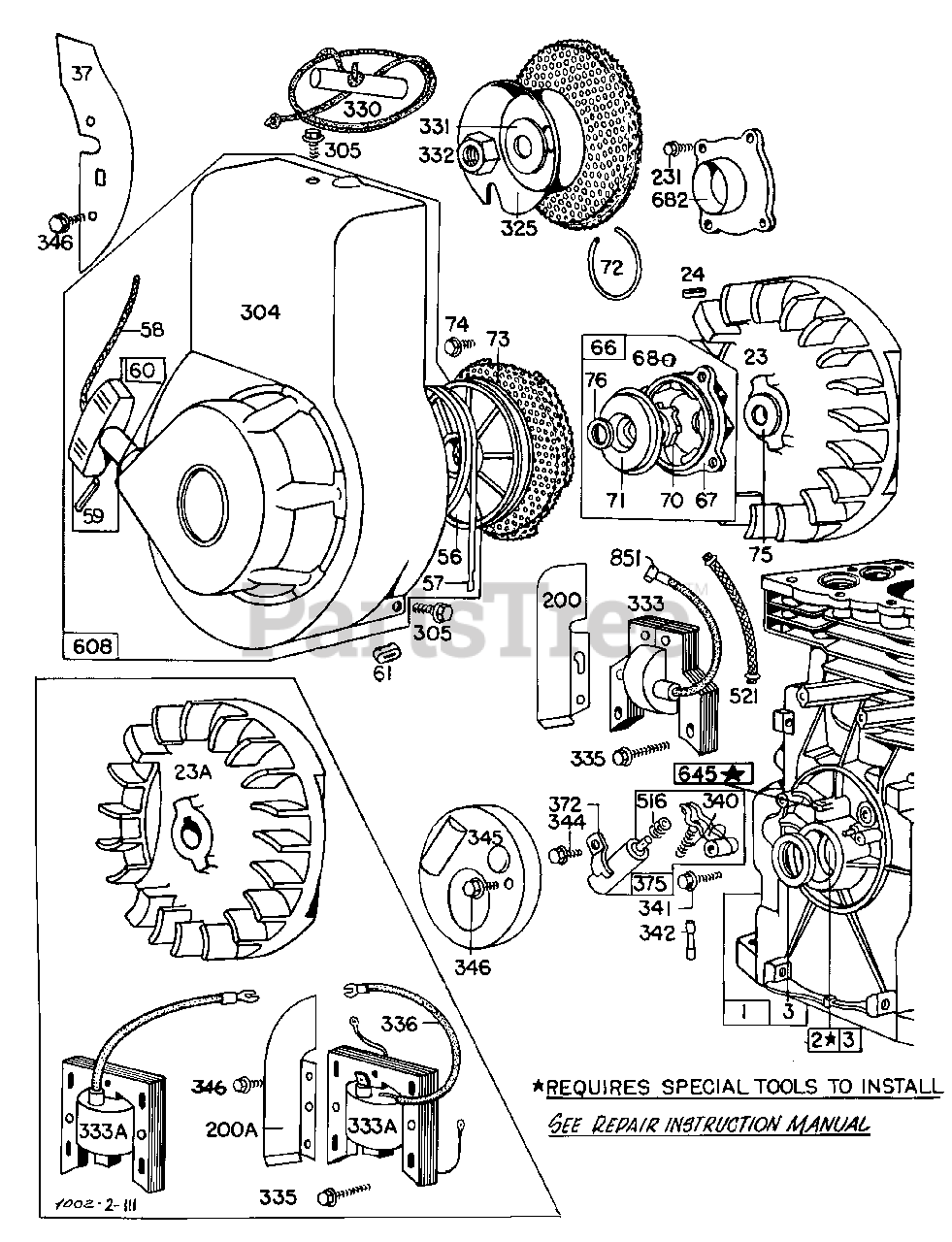

100202-0438-XX - Briggs & Stratton Horizontal Engine Blower Hsg,Flywheels,Rewinds Parts Diagram

Horizontal Engine

Blower Hsg,Flywheels,Rewinds Parts Diagram

  • Title

1

Briggs & Stratton 397412

Cylinder Assembly (Includes Piston, Rings & Conn Rod Assy)

$264.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing/Seal Kit

Note: Requires special tools for installation.

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

23A

Briggs & Stratton 297348

Flywheel-Magneto

Note: Used Before Code Date 6308261

$79.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 297229

Flywheel-Magneto

Note: Used After Code Date 6308231

$

$

Not available

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 211424

Pulley-V

$

$

Not available

56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

Note: Used After Code Date 6507211

$12.99

$

In Stock, Qty 11

0

56

Briggs & Stratton 294088

Pulley-Rewind Starter

Note: Used Before Code Date 6507221

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 395022

Rope/Grip Kit (47-1/8" Long)
(Superseded to 69932S)

Note: Used Before Code Date 6507221

$9.49

$

In Stock, only 1 left!

0

58

Briggs & Stratton 66694

Rope-Starter (47-1/8" Long)
(Superseded to 66734)

Note: Used After Code Date 6507211

$6.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 68618

Bumper-Str Pull

Note: (Used with Steel Pulley only)

$2.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 298310

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Used After Code Date 6405220

$34.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

Note: Uses: 212132 Housing-Starter Clutch 298799 Ratchet-Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 210400

Housing-Starter Clutch

Note: Used Before Code Date 6405250

$

$

Not available

67

Briggs & Stratton 212131

Housing-Str. Clutch
(Superseded to 394897)

Note: Used After Code Date 6405220

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 296597

Ratchet-Starter

Note: Used Before Code Date 6405250

$4.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet-Str. Clutch
(Superseded to 691945)

Note: Used After Code Date 6405220

$17.99

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: Uses: 66718 Washer, Thrust, Ratchet 230813 Adapter-Ratchet Spring (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221301

Washer

Note: Used Before Code Date 6405250

$1.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

Note: Used After Code Date 6405220

$9.99

$

In Stock, Qty 13

0

72

Briggs & Stratton 26032

Spring-Clutch Retainer-Washer

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 220648

Screen-Starter Pulley
(Superseded to 691725)

Note: Used Before Code Date 6405250

$

$

Not available

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

Note: Used After Code Date 6405220

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200A

Briggs & Stratton 221508

Guide-Air

Note: Used Before Code Date 6308261

$1.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

Note: Used After Code Date 6308231

$11.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 298636

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

325

Briggs & Stratton 298731

Pulley-Rope Start (5/8" Hole In Pulley)

$18.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 395022

Rope/Grip Kit (47-1/8" Long)
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

331

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 297594

Armature-Magneto

Note: Used Before Code Date 6308261

$

$

Not available

333

Briggs & Stratton 298316

Armature-Mag (For Points And Condenser)
(Superseded to 397358)

Note: Used After Code Date 6308231

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

336

Briggs & Stratton 297250

Cable-Ignition

Note: Used Before Code Date 6208220

$

$

Not available

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover-Breather Point And Condenser

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel

$

$

Not available

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 297372

Starter-Rewind (10 O'clock)

$

$

Not available

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
