10013 - Toro Sportlawn Walk-Behind Mower (SN: 003000001 - 003999999) (1973) ENGINE MODEL NO. 60102 RECOIL START Parts Diagram

Sportlawn Walk-Behind Mower

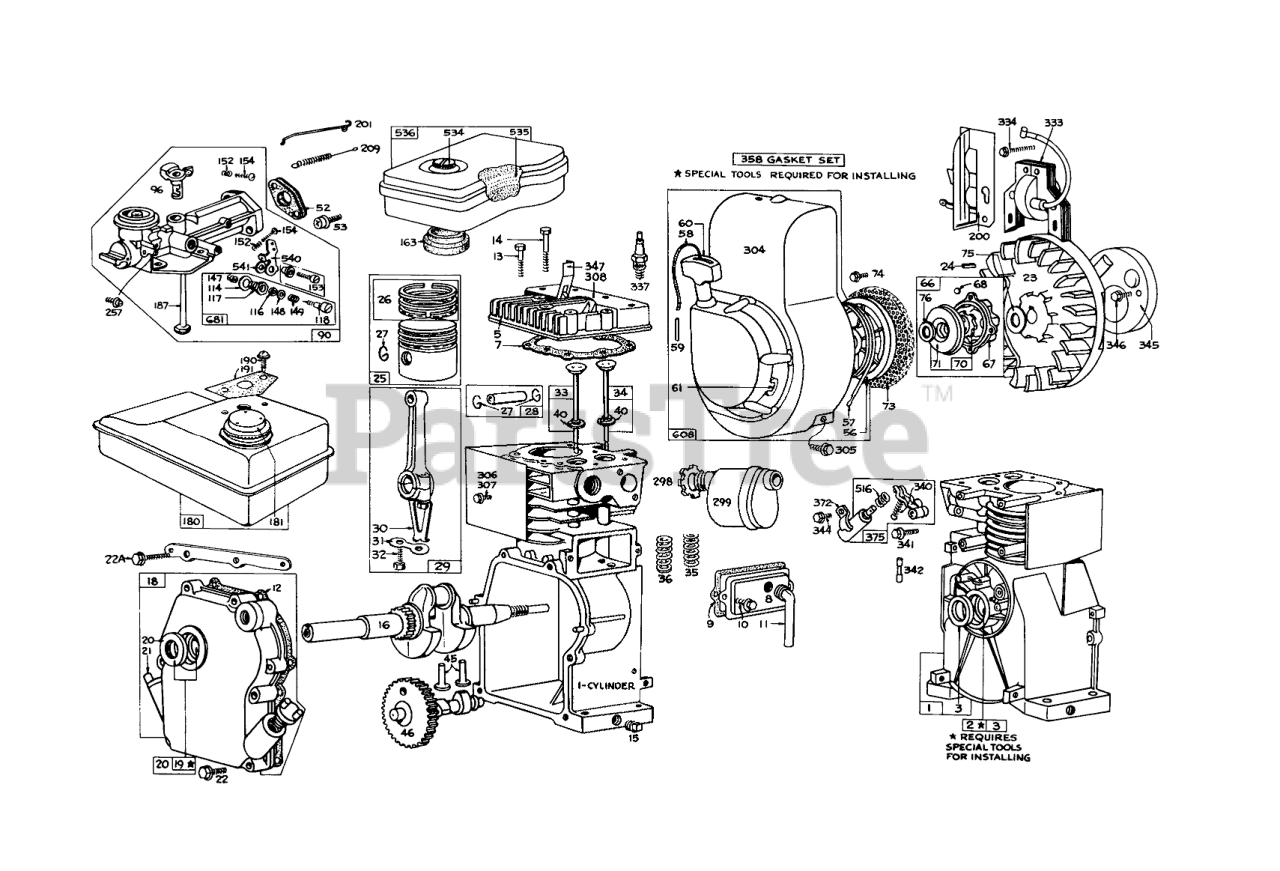

ENGINE MODEL NO. 60102 RECOIL START Parts Diagram

  • Title

1

Briggs & Stratton 296561

Cylinder Assembly
(Superseded to 395262)

$228.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

7

Briggs & Stratton 27670

Gasket-Cylinder Hd.
(Superseded to 272167)

Note: Included in Gasket Set-Part No. 297275

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297275

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66638

Tube-Breather
(Superseded to 271489)

$8.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 27586

Gasket-Crankcase" thick (Standard)
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 297275

$

$

Not available

Briggs & Stratton 27617

Gasket-Crankcase .005" thick
(Superseded to 270895)

Note: Included in Gasket Set-Part No. 297275

$9.99

$

In Stock, only 4 left!

0

Briggs & Stratton 27618

Gasket-Crankcase .009" thick
(Superseded to 270896)

Note: Included in Gasket Set-Part No. 297275

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 93113

Screw-Cylinder Head
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 260271

Crankshaft
(Superseded to 494136)

$175.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 294305

Cover Assy.-Crankcase
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

22A

Briggs & Stratton 93466

Screw-Sem

$

$

Not available

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 295587

Piston Assy.-Std.

$48.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295588

Piston Assy.-.010" O.S.

$60.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295589

Piston Assy. .020" O.S.

$132.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295590

Piston Assy.-.030" O.S.

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294232

Ring Set (Std.)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294224

Ring Set .010" OS.

$

$

Not available

Briggs & Stratton 294225

Ring Set .020" OS.

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294226

Ring Set .030" OS.

$57.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294300

Rod Assy.-Connecting

$70.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220459

Dipper-Connecting Rod

$6.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 220460

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210453

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297275

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93353

Screw, Carburetor Mtg. Sem
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

56

Toro 298738

Pulley-Rewind Starter

$

$

Currently unavailable

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66694

Rope-Rewind
(Superseded to 66734)

$6.49

$

In Stock, Qty 12

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68618

Bumper-Starter Pulley

$2.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

90

Briggs & Stratton 295490

Carburetor Assy.
(Superseded to 495821)

$

$

Not available

96

Briggs & Stratton 210719

Throttle-Carburetor

$17.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 65787

Gasket-Needle Valve

$3.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 4 left!

0

117

Briggs & Stratton 23431

Nut-Needle Valve
(Superseded to 5023431)

$1215.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

147

Briggs & Stratton 23432

Seat-Needle Valve
(Superseded to 5023432)

$683.99

$

In Stock, only 1 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

153

Briggs & Stratton 298031

Screw-Carburetor Lever

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93349

Screw, Machine

$

$

Not available

163

Briggs & Stratton 27660

51048 SUP.SHEET TIL

Note: Included in Gasket Set-Part No. 297275

$

$

Not available

180

Briggs & Stratton 291834

Tank Assembly-Fuel
(Superseded to 399390)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 296476

Pipe-Fuel

$10.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27404

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set-Part No. 297275

$6.49

$

In Stock, only 1 left!

0

200

Briggs & Stratton 297310

Blade-Governor
(Superseded to 498770)

$

$

Not available

201

Briggs & Stratton 260040

Link-Governor
(Superseded to 261662)

$7.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260041

Spring-Governor
(Superseded to 692205)

$6.99

$

In Stock, only 1 left!

0

257

Briggs & Stratton 93263

Screw-Fil. Hd.

$

$

Not available

298

Briggs & Stratton 220859

Locknut-Muffier
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 294441

Muffler-Exhaust
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 294260

Housing-Blower
(Superseded to 398034)

$65.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 220478

Muffler-Exhaust

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 220581

Cover-Cylinder Head
(Superseded to 223390)

$7.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298502

Armature-Magneto
(Superseded to 591420)

$53.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 221808

Switch, Stop

$4.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93322

Screw-Air Cleaner

$5.99

$

In Stock, Qty 8

0

535

Briggs & Stratton 27987

Element-Air Cleaner
(Superseded to 27987S)

$6.99

$

In Stock, Qty 18

0

536

Briggs & Stratton 296767

Cleaner Assy.-Air

$90.99

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 221380

Lever, Speed Adjuster
(Superseded to 394029)

$8.49

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 294259

Starter Assy.-Rewind

$

$

Not available

681

Briggs & Stratton 299059

Needle Valve Kit

$33.99

$

In Stock, only 2 left!

0
