1000Z (5901006) - Ferris 1000Z Series 61" Zero-Turn Mower, 23hp Kawasaki Floor Pan & Brake Cover Group Parts Diagram

1000Z Series 61" Zero-Turn Mower, 23hp Kawasaki

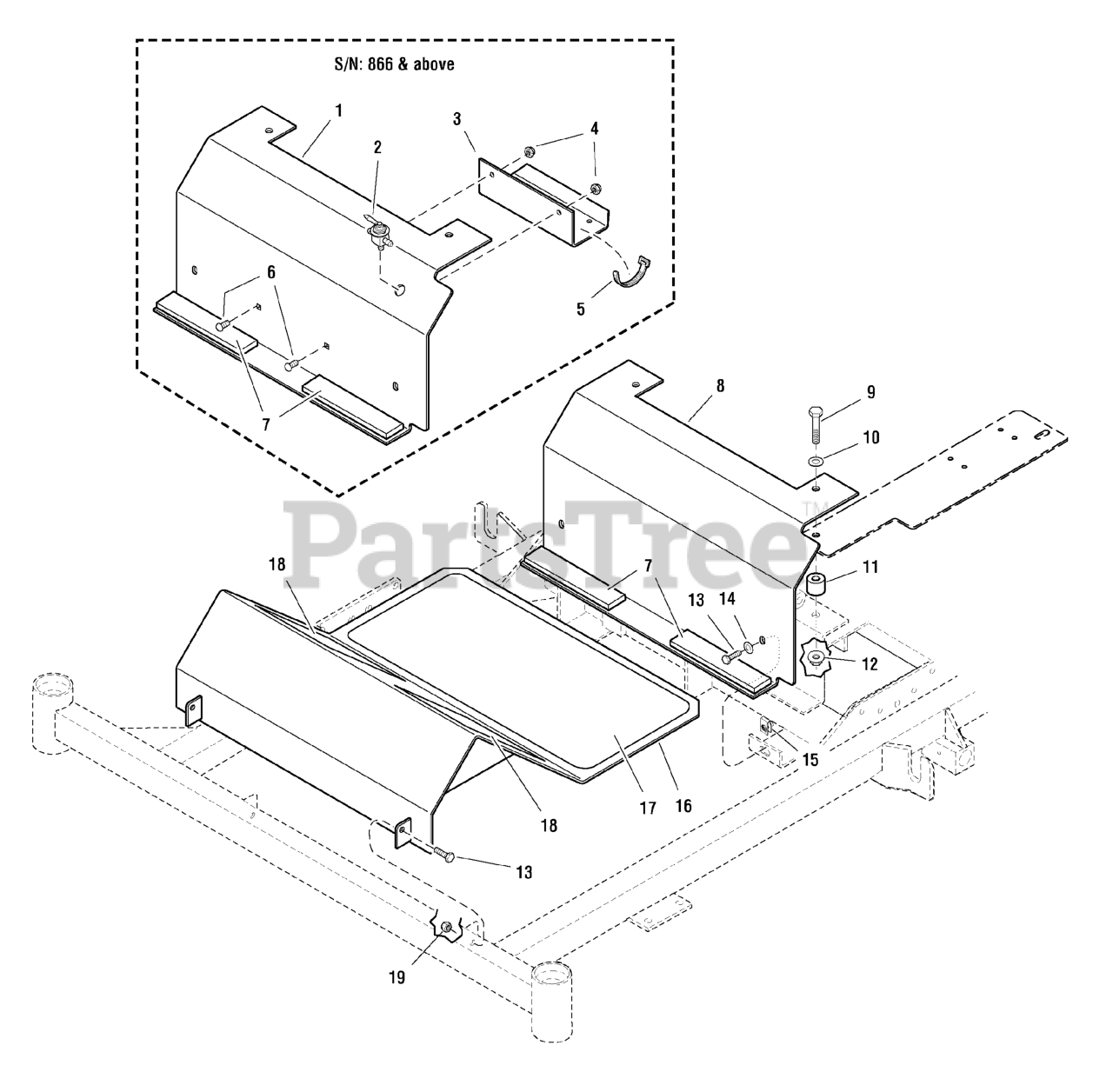

Floor Pan & Brake Cover Group Parts Diagram

  • Title

1

Ferris 5049240B

BRAKE COVER PANEL ASSEMBLY

$

$

Currently unavailable

2

Ferris 5022030

VALVE, Fuel Shut Off

$43.99

$

Usually ships in 2-12 days

0

3

Ferris 5049181B

FUEL LINE GUIDE

$

$

Currently unavailable

4

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

5

Ferris 5102581

SPACER, .33 X .63 X .50, CZ
(Superseded to 5102581YP)

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5025144X6

BOLT, 1/4-20 X 3/4", CARRIAGE
(Superseded to 5025144X6SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5021877

Pad, Rubber Mount
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

8

Ferris 5047069B

BRAKE COVER PANEL

$

$

Currently unavailable

9

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5047125

SPACER, .39 X 1.00 X .88, CZ
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

12

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

13

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

13

Ferris 5405853B

BAR, PUMP LINK, OFFSET - RED
(Superseded to 5405853BFS)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5047204B

FLOOR PLATE

$

$

Currently unavailable

17

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$68.99

$

Usually ships in 2-12 days

0

18

Ferris 5047139

SAFETY WALK
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

19

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
