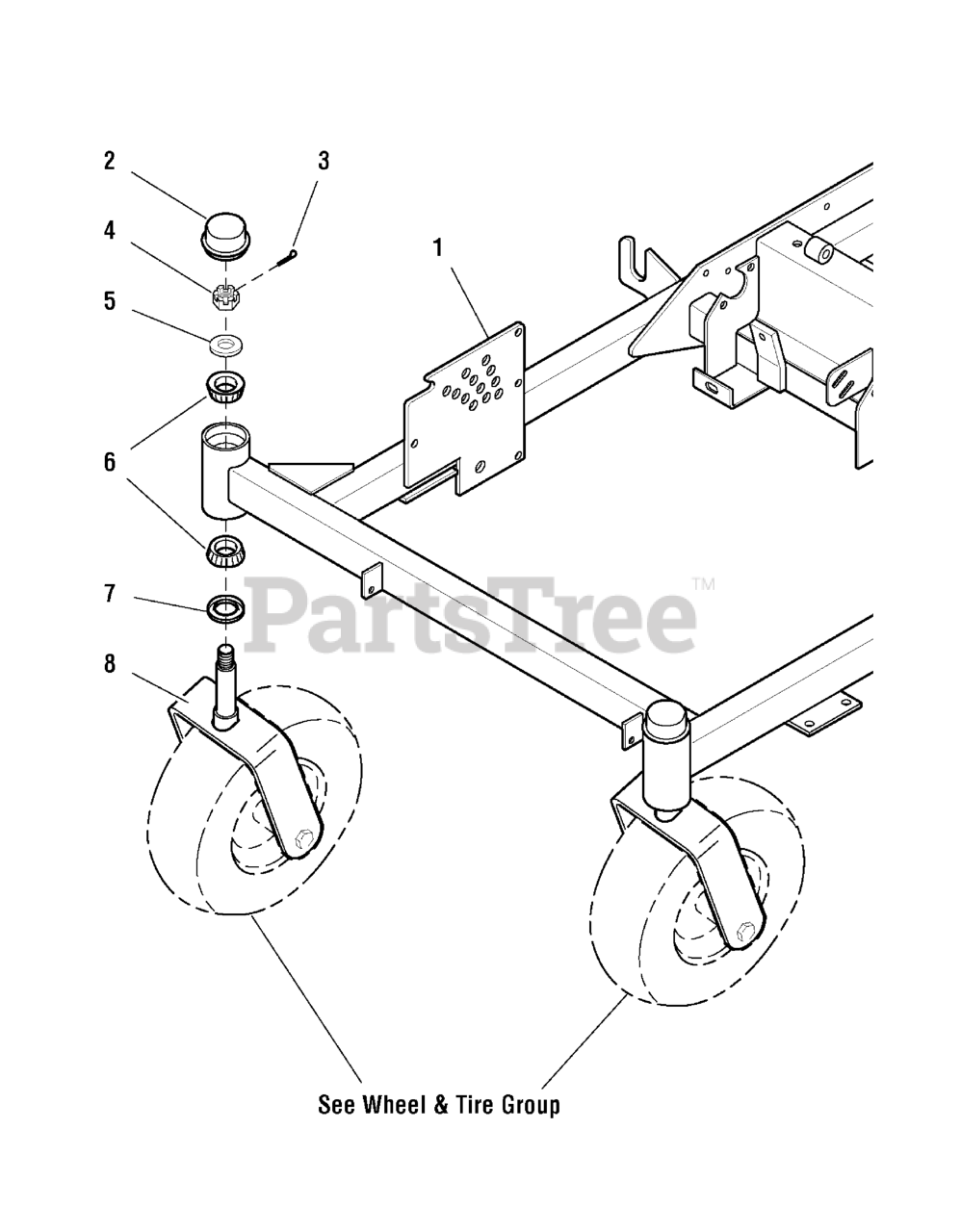

1000Z (5901005) - Ferris 1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki Main Frame Group - S/N: 2898 and below Parts Diagram

1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki

Main Frame Group - S/N: 2898 and below Parts Diagram

  • Title
1

Ferris 5047007B

MAIN FRAME

$

$

Currently unavailable

2

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

3

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025104

NUT, Hex, Slotted, 3/4-16
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

6

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

7

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

8

Ferris 5047049B

CASTER YOKE
(Superseded to 5600097)

$124.99

$

Usually ships in 2-12 days

0
