1000Z (5901005) - Ferris 1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki Fuel Supply Hose & Tank Replacement Parts Group (Early Models) Parts Diagram

1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki

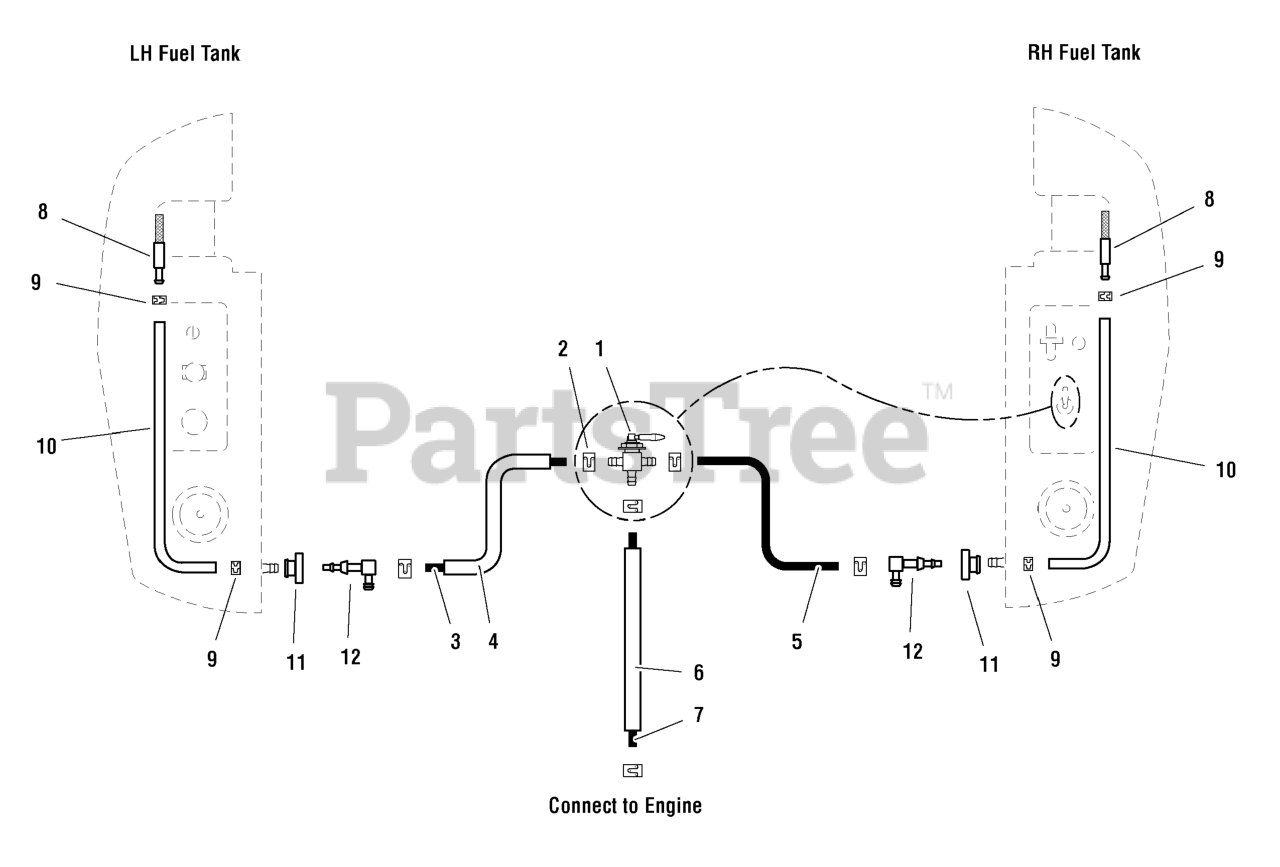

Fuel Supply Hose & Tank Replacement Parts Group (Early Models) Parts Diagram

  • Title

1

Ferris 5022030

VALVE, Fuel Shut Off

$43.99

$

Usually ships in 2-12 days

0

2

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

3

Ferris 5050831X45

1/4" Fuel Line, 45" Long

$

$

Not available

4

Ferris 5050833X43

WIRE LOOM, 43"

$6.99

$

Usually ships in 2-12 days

0

5

Ferris 5050831X6P5

1/4" Fuel Line, 6-1/2" Long

$

$

Not available

6

Ferris 5050833X40

WIRE LOOM, 40"

$

$

Not available

7

Ferris 5050831X42

1/4" Fuel Line, 42" Long

$

$

Not available

8

SEE HOSE ASSEMBLY

$

$

Not available

9

SEE HOSE ASSEMBLY

$

$

Not available

10

Ferris 5101217

ASSM, FUEL HOSE, 20"

Note: (Includes clamp & filter)

$47.99

$

Usually ships in 2-12 days

0

11

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

12

Ferris 5023061

ELBOW FITTING
(Superseded to 5023061SM)

$10.99

$

In Stock, only 1 left!

0
