1000Z (5901004) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki Instrument & Control Panel Group (Early Models) Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

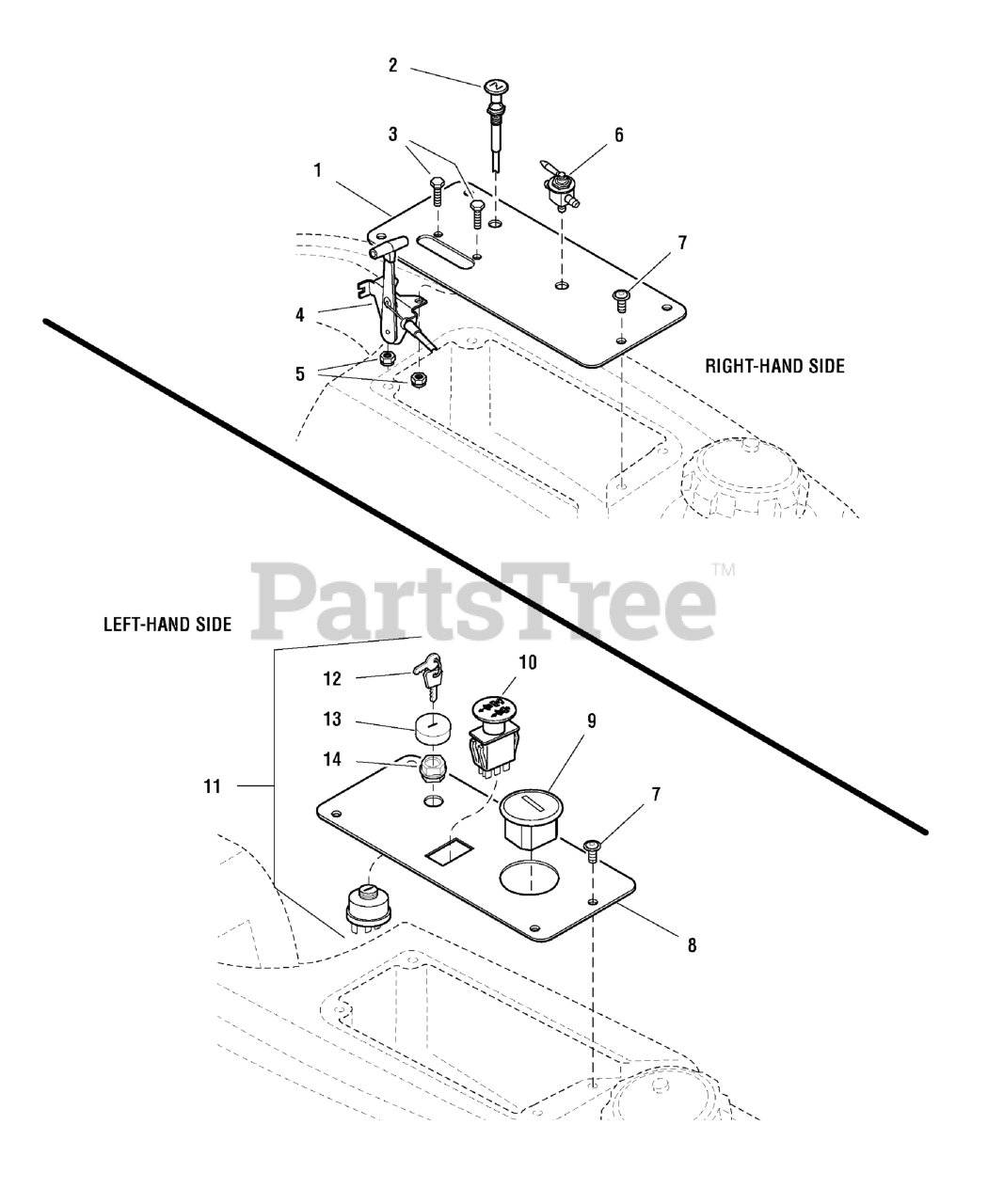

Instrument & Control Panel Group (Early Models) Parts Diagram

  • Title

1

Ferris 5047140B

PANEL, Control - RH

$33.99

$

Usually ships in 2-12 days

0

2

Ferris 5047143

CABLE, Choke Control
(Superseded to 5047143SM)

$56.99

$

Usually ships in 2-12 days

0

3

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5020811

CABLE, Throttle, 38"
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

5

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5022030

VALVE, Fuel Shut Off

$43.99

$

Usually ships in 2-12 days

0

7

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

8

Ferris 5046492B

PANEL, Control-LH

$33.99

$

Usually ships in 2-12 days

0

9

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

10

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

11

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 12 - 14)

$33.99

$

In Stock, only 3 left!

0

12

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

13

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0
