1000Z (5901004) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki 48" & 52" Mower Deck - Pulleys, Belts & Idler Arm - S/N: 2898 and below Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

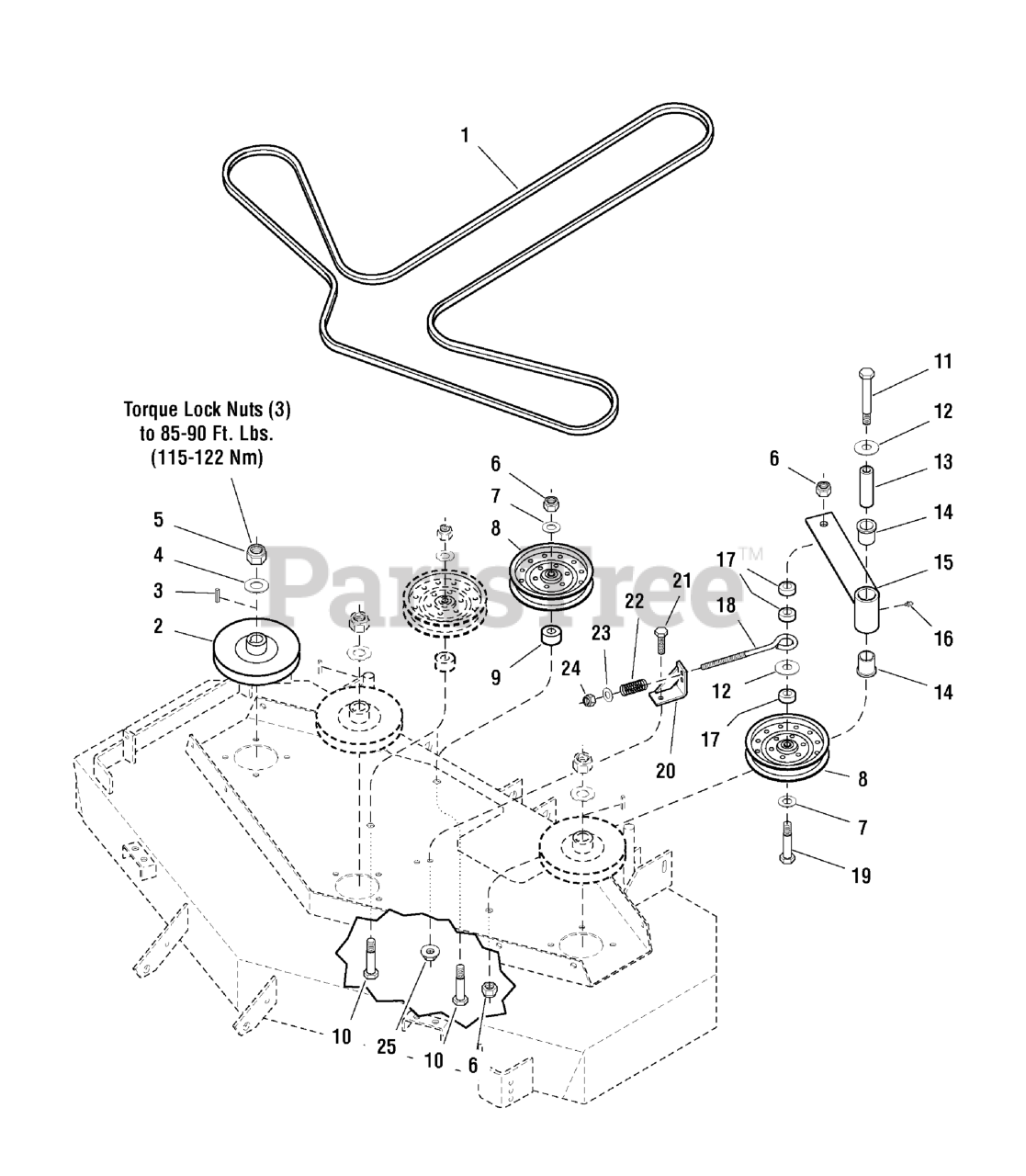

48" & 52" Mower Deck - Pulleys, Belts & Idler Arm - S/N: 2898 and below Parts Diagram

  • Title

1

Ferris 5022667

BELT (48" Deck)

$112.99

$

In Stock, only 1 left!

0

1

Ferris 5103587

BELT, 5V, 150.90"EL, ARAMID, WRPD, RC

$148.99

$

Usually ships in 2-12 days

0

2

Ferris 5022622

PULLEY, Spindle, Gold
(Superseded to 5022622SM)

Note: (48" Deck, S/N: 1500 & below)

$82.99

$

Usually ships in 2-12 days

0

2

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

Note: (48" Deck, S/N: 1501 & above)

$67.99

$

In Stock, Qty 17

0

2

Ferris 5022721

PULLEY, Spindle, Gold

Note: (52" Deck S/N: 1500 & below)

$158.99

$

Usually ships in 2-12 days

0

2

Ferris 5023178

PULLEY, 6.122 OD X .98 BORE
(Superseded to 5023178SM)

Note: (52" Deck, S/N: 1501 & above)

$71.99

$

In Stock, only 2 left!

0

3

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

4

Ferris 5025318

WASHER, Spring

$10.99

$

Usually ships in 2-12 days

0

5

Ferris 5025319

NUT, 5/8-18 Hex Nylon Lock
(Superseded to 5025319SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

7

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

8

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

9

Ferris 5047142

SPACER, .52 x 1.25 x .70
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 8

0

10

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

12

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

14

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

15

Ferris 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes Bushings & grease fittings.)

$113.99

$

Usually ships in 2-12 days

0

16

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

18

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

19

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

20

Ferris 5045200B

SPRING ANCHOR

$29.99

$

In Stock, only 2 left!

0

21

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

22

Ferris 5021680

SPRING, Compression
(Superseded to 5021680SM)

Note: (48" Deck, S/N: 101-200 / 52" Deck, S/N: 101-250)

$33.99

$

Usually ships in 2-12 days

0

22

Ferris 5022788

SPRING, Compression
(Superseded to 5022788SM)

Note: (48" Deck S/N: 201 & above / 52" Deck S/N: 251 & above)

$36.99

$

In Stock, only 1 left!

0

23

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

25

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0
