1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2899 & Above) Parking Brake Group - Lower - 61" Model Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

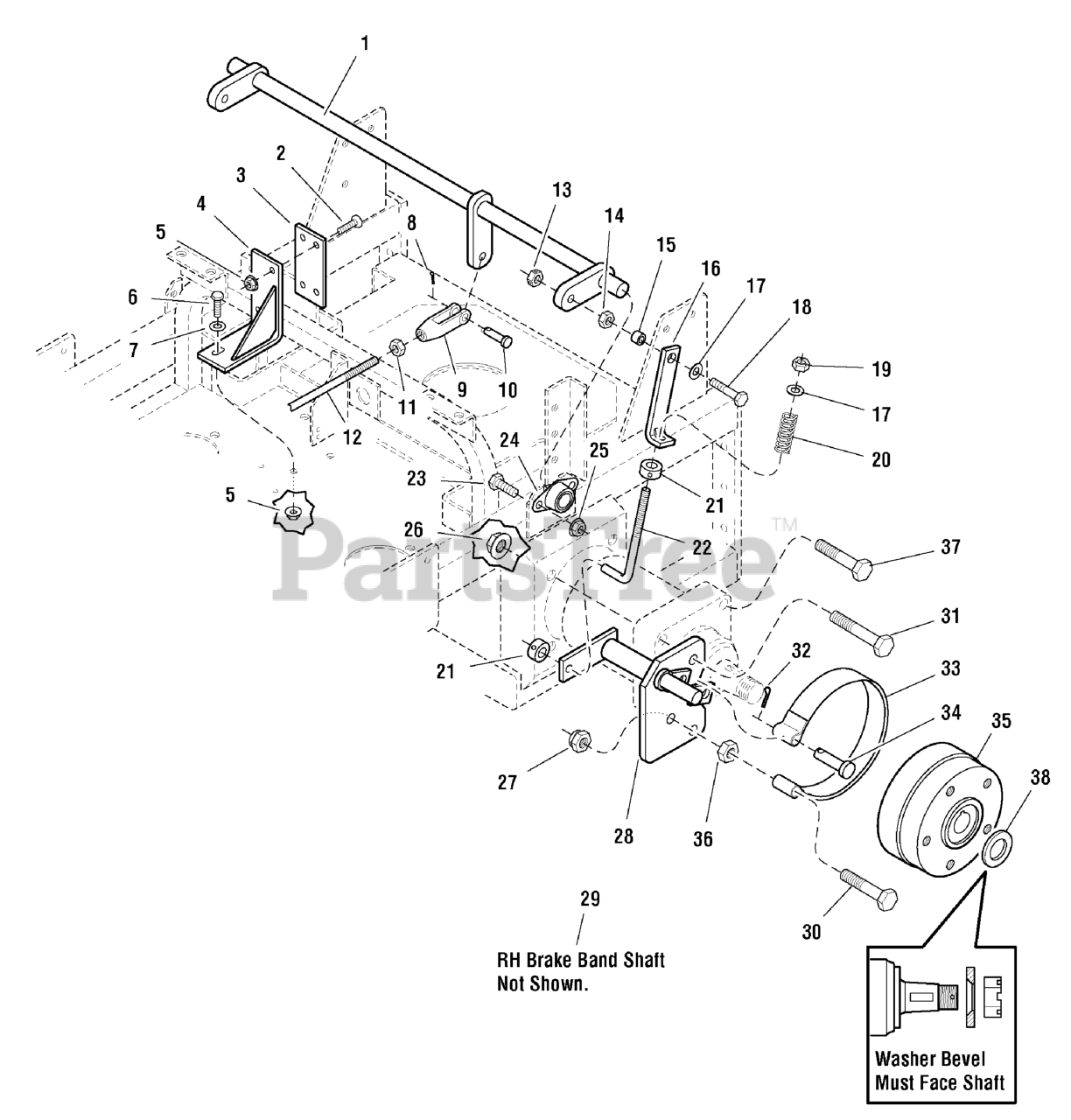

Parking Brake Group - Lower - 61" Model Parts Diagram

  • Title

1

Ferris 5047128B

BRAKE CROSS SHAFT

$

$

Currently unavailable

2

Ferris 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5045990

FRICTION PLATE

$

$

Currently unavailable

4

Ferris 5047153B

SUPPORT, Brake Shaft

$17.99

$

Usually ships in 2-12 days

0

5

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5025214X8

CLEVIS PIN, 3/8 x 1
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

11

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5047119

BRAKE CONNECTING ROD

$

$

Currently unavailable

13

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

14

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

16

Ferris 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

17

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025046

NUT, 3/8-16 Hex Top Lock
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

20

Ferris 5022361

SPRING, Compression
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

21

Ferris 5010546

COLLAR, 3/8" Set
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

22

Ferris 5047091

ROD, Brake Adjustment

$

$

Currently unavailable

23

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

25

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

26

Ferris 5025387

NUT, 1/2-20 Hex Flange Lock
(Superseded to 5025387SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

28

Ferris 5049140B

BRAKE BAND SHAFT-LH

$

$

Currently unavailable

29

Ferris 5049141B

BRAKE BAND SHAFT-RH

Note: (Not Shown)

$

$

Currently unavailable

30

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

31

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

32

Ferris 25202-10

COTTER PIN, 3/16" x 1-1/4"

$

$

Currently unavailable

33

Ferris 5022607

BRAKE BAND

$37.99

$

Usually ships in 2-12 days

0

34

Ferris 25328-16

CLEVIS PIN, 1/2 x 2

$

$

Currently unavailable

35

Ferris 5047052

BRAKE HUB

$

$

Not available

36

Ferris 5025038

NUT, 1/2-13 Hex
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

37

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

38

Ferris 5023249

WASHER, 1 x 2
(Superseded to 5023249SM)

$6.99

$

Usually ships in 2-12 days

0
