1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2899 & Above) Motion Control Group - S/N: 2899 and above Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

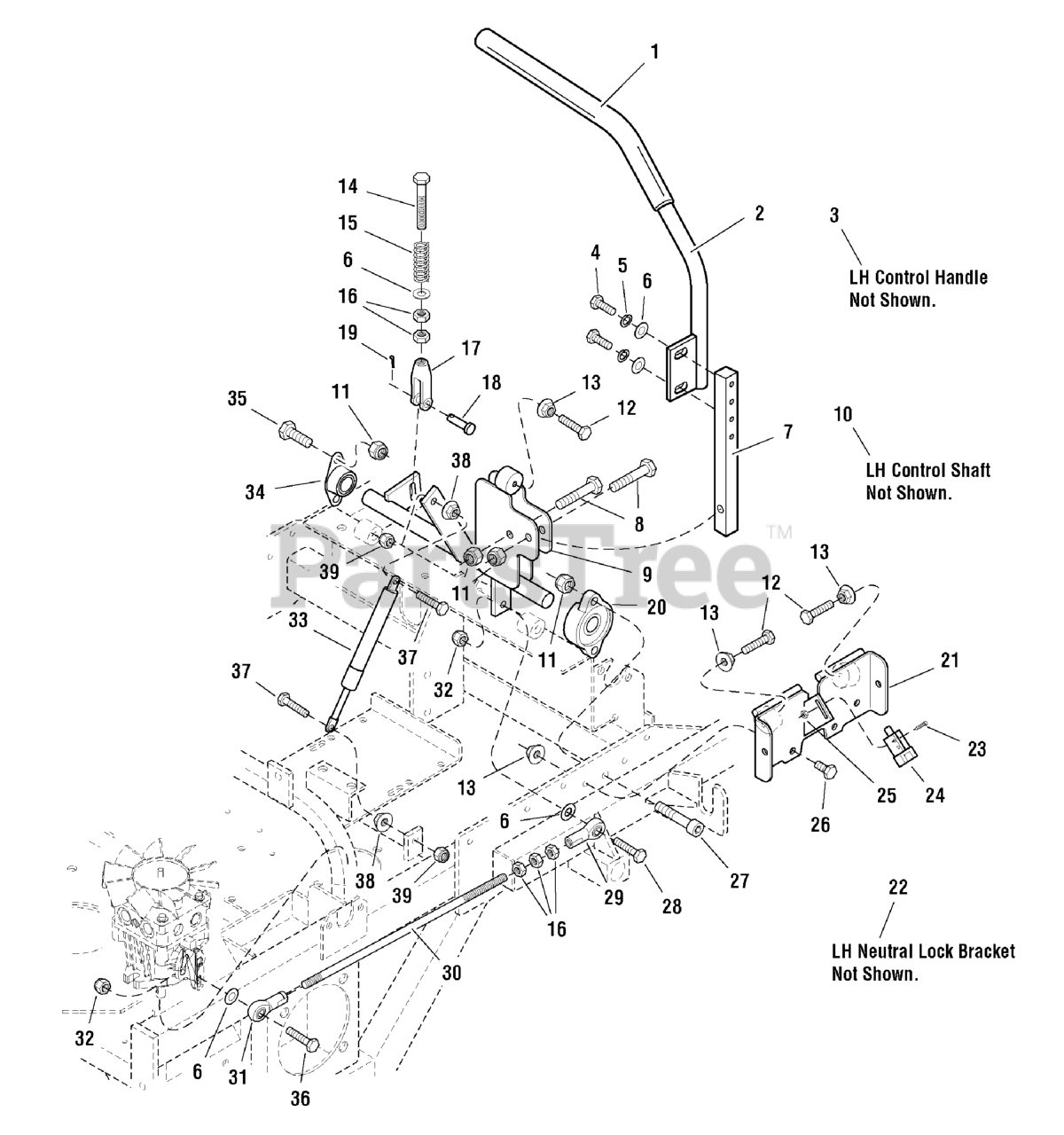

Motion Control Group - S/N: 2899 and above Parts Diagram

  • Title

1

Ferris 5022068

GRIP, Foam
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

2

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

3

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (Not Shown)(Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

8

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

9

Ferris 5047045B

CONTROL SHAFT-RH

$136.99

$

Usually ships in 2-12 days

0

10

Ferris 5047044B

CONTROL SHAFT-LH

Note: (Not Shown)

$136.99

$

Usually ships in 2-12 days

0

11

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 5025055X14

BOLT, 5/16-18 x 1-3/4 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

14

Ferris 5047137

REVERSE RETURN BOLT

$

$

Currently unavailable

15

Ferris 5022645

SPRING, Compression
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

16

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5021499

BEARING, Flange
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

21

Ferris 5047081B

NEUTRAL LOCK BRACKET-RH

$

$

Currently unavailable

22

Ferris 5047080B

NEUTRAL LOCK BRACKET-LH

Note: (Not Shown)

$36.99

$

Usually ships in 2-12 days

0

23

Ferris 25179-4

SCREW, #10-24 x 1/2

$

$

Currently unavailable

24

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

25

Ferris 25029

NUT, #10-24 Hex

$

$

Currently unavailable

26

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

27

Ferris 5025327

BOLT, Allen Head, 3/8-16 x 1-1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

30

Ferris 5047102

HYDRO CONTROL ROD

$32.99

$

Usually ships in 2-12 days

0

31

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

32

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5022978

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

34

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

35

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

36

Ferris 5025011X9

BOLT, 5/16-18 x 1-1/8
(Superseded to 5025011X9SM)

$3.99

$

In Stock, only 1 left!

0

37

Ferris 5025335

BOLT, M8 x 35MM
(Superseded to 5025335SM)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

39

Ferris 5025354

NUT, M8-1.25 Hex Nylon Lock
(Superseded to 5025354SM)

$3.49

$

Usually ships in 2-12 days

0
