1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2898 & Below) Hydraulic Group Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

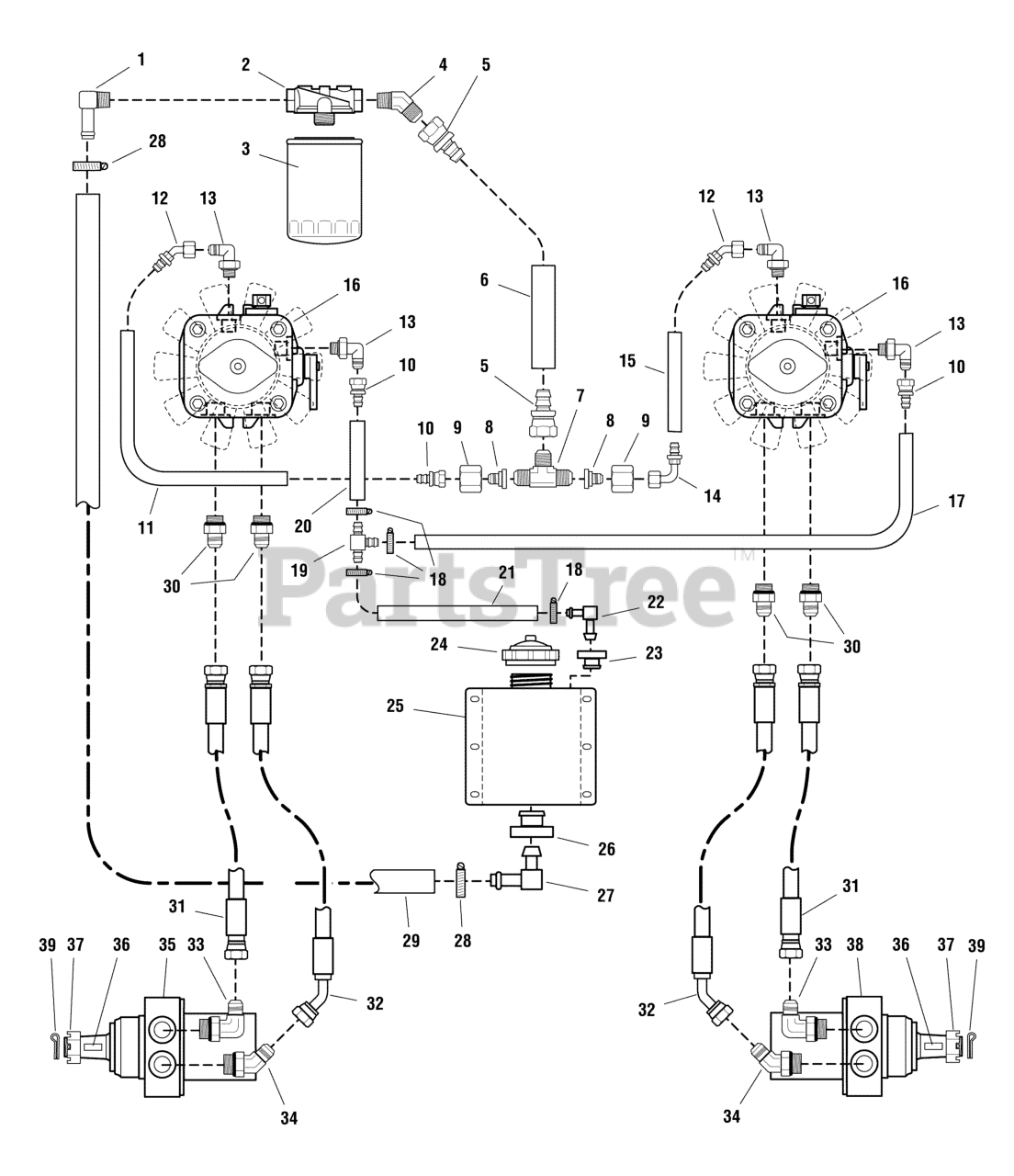

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5021233

FITTING, 1/2" NPT, 90 Deg.
(Superseded to 5021233SM)

$12.99

$

Usually ships in 2-12 days

0

2

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

3

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

4

Ferris 5022720

FITTING, 1/2" NPT, 45 Deg.
(Superseded to 5022720SM)

$

$

Not available

5

Ferris 5022719

FITTING, Straight Swivel
(Superseded to 5022719SM)

$20.99

$

Usually ships in 2-12 days

0

6

Ferris 5050933X7P5

HOSE, Hydraulic, 7-1/2"

$

$

Not available

7

Ferris 5022718

FITTING, Tee
(Superseded to 5022718SM)

$

$

Not available

8

Ferris 5022716

ADAPTER, Tee
(Superseded to 5022716SM)

$

$

Not available

9

Ferris 5022717

NUT, Adapter
(Superseded to 5022717SM)

$

$

Not available

10

Ferris 5022713

FITTING, Straight Swivel

$7.49

$

Usually ships in 2-12 days

0

11

Ferris 5050860X13P75

HOSE, Hydraulic, 13-3/4"

$

$

Not available

12

Ferris 5022714

FITTING, 45 Deg. Swivel
(Superseded to 5022714SM)

$

$

Not available

13

Ferris 5022712

FITTING, O-Ring, 90 Deg.

$

$

Currently unavailable

14

Ferris 5022715

FITTING, 90 Deg. Swivel

$

$

Currently unavailable

15

Ferris 5050860X6P75

HOSE, Hydraulic, 6-3/4"

$

$

Not available

16

Ferris 5022571

HYDRAULIC PUMP, 10CC, w/ FAN
(Superseded to 5022571SM)

$1341.99

$

Usually ships in 2-12 days

0

16

Ferris 5022571X1

HUB & FAN KIT
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

17

Ferris 5050860X16P5

HOSE, Hydraulic, 16-1/2"
(Superseded to 5050860X16P5FS)

$16.99

$

Usually ships in 2-12 days

0

18

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5022920

FITTING, TEE, 3/8" Hose
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

20

Ferris 5050860X6

HOSE, Hydraulic, 6"
(Superseded to 5050860X6SM)

$8.49

$

Usually ships in 2-12 days

0

21

Ferris 5050860X26P25

HOSE, Hydraulic, 26-1/4"

$

$

Currently unavailable

22

Ferris 5023118

FITTING, Elbow, 3/8"
(Superseded to 5023118SM)

$7.99

$

Usually ships in 2-12 days

0

23

Ferris 5023120

GROMMET
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

24

Ferris 5023191

CAP, Hydraulic Oil Only

$26.99

$

Usually ships in 2-12 days

0

25

Ferris 5048111

HYDRAULIC OIL RESERVOIR, Complete
(Superseded to 5061712SM)

Note: (Includes Ref. No. 22, 23, 26 & 27)

$154.99

$

In Stock, Qty 5

0

26

Ferris 5023121

GROMMET
(Superseded to 5023121SM)

$15.99

$

Usually ships in 2-12 days

0

27

Ferris 5023119

FITTING, Elbow, 5/8"

$

$

Currently unavailable

28

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

29

Ferris 5050933X19

HOSE, Hydraulic, 19"

$25.99

$

Usually ships in 2-12 days

0

30

Ferris 5022633

FITTING, O-Ring Adapter
(Superseded to 5022633SM)

$12.99

$

In Stock, only 3 left!

0

31

Ferris 5102121

HOSE ASSEMBLY 16.75, HP, ST X ST

$75.99

$

Usually ships in 2-12 days

0

32

Ferris 5023247

HYDRAULIC HOSE ASSEMBLY, 22"

$112.99

$

Usually ships in 2-12 days

0

33

Ferris 5023276

FITTING, O-Ring, 90 Deg.
(Superseded to 5023276SM)

$53.99

$

In Stock, only 1 left!

0

34

Ferris 5022709

FITTING, O-Ring, 45 Deg.
(Superseded to 5022709SM)

$46.99

$

In Stock, only 2 left!

0

35

Ferris 5022974L

HYDRAULIC WHEEL MOTOR-LEFT, Complete

Note: (Includes Ref No. 36 & 37)

$

$

Currently unavailable

36

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

37

Ferris 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

38

Ferris 5022974R

HYDRAULIC WHEEL MOTOR-RIGHT, Complete

Note: (Includes Ref No. 36 & 37)

$1972.99

$

Usually ships in 2-12 days

0

39

Ferris 5025203X16

PIN, COTTER, 1/8" X 2"
(Superseded to 5025203X16SM)

$3.99

$

Usually ships in 2-12 days

0
