1000Z (5901002) - Ferris 1000Z Series 52" Zero-Turn Mower, 23hp Kohler (SN: 2898 & Below) Engine & PTO Group - Kohler - S/N: 2898 and below Parts Diagram

1000Z Series 52" Zero-Turn Mower, 23hp Kohler

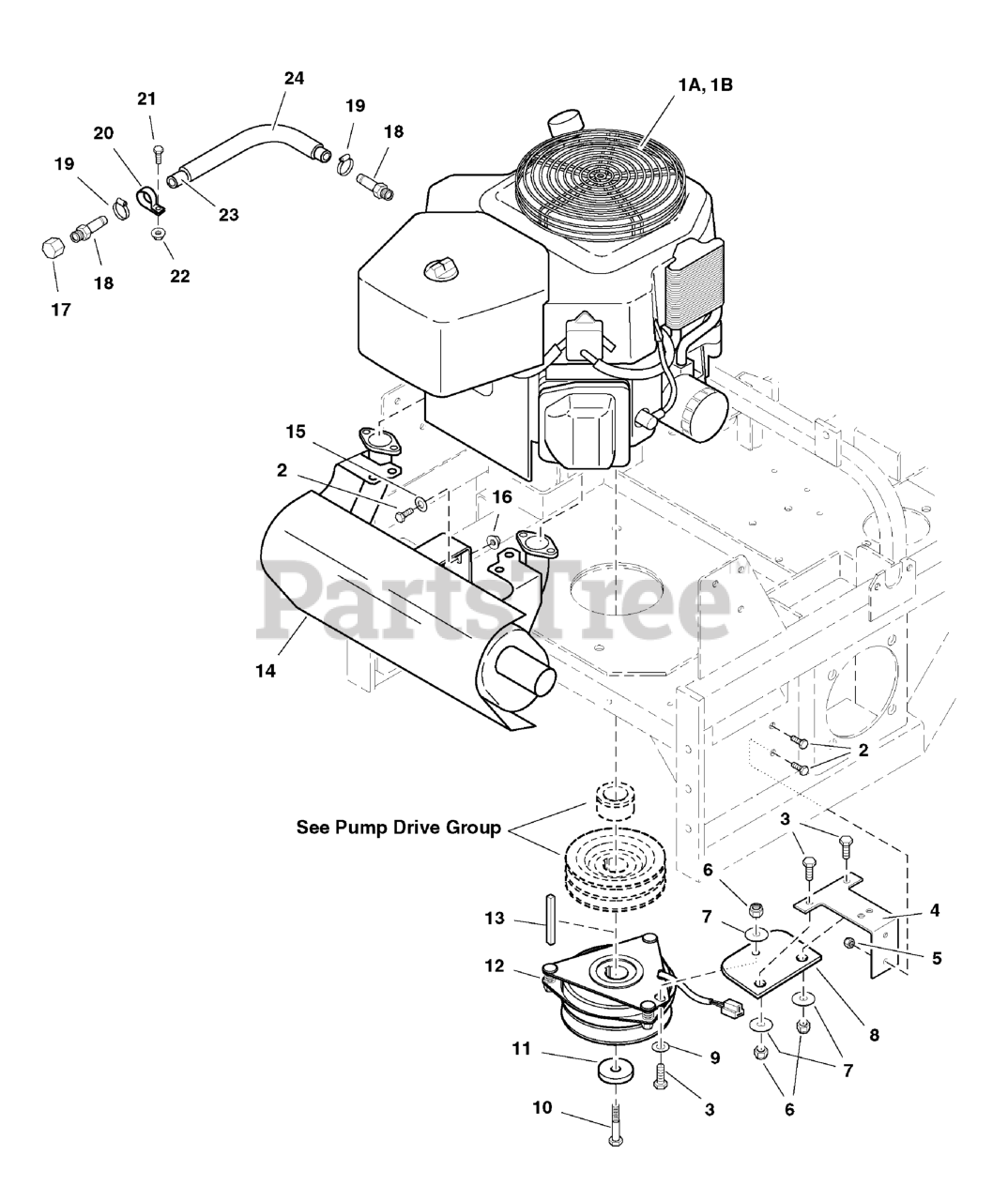

Engine & PTO Group - Kohler - S/N: 2898 and below Parts Diagram

  • Title

1

ENGINE, Kohler

Note: (Refer to Note: *)

$

$

Not available

2

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

4

Ferris 5047134B

CLUTCH ANCHOR

$13.99

$

Usually ships in 2-12 days

0

5

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

8

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5044853

CRANKSHAFT BOLT, 7/16 x 2
(Superseded to 5102862)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

12

Ferris 5023231

ELECTRIC CLUTCH
(Superseded to 5023432SM)

$683.99

$

In Stock, only 1 left!

0

13

Ferris 5050407X28

KEY, 1/4 SQ. X 3-1/2

$

$

Currently unavailable

14

Ferris 5022952

MUFFLER
(Superseded to 5101275SM)

$329.99

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

17

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

18

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

22

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5050857X13

HOSE, 13"
(Superseded to 5050857X13SM)

$8.49

$

Usually ships in 2-12 days

0

24

Ferris 5050862X12

WIRE LOOM, 12"
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0
