1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2899 & Above) Rear Bumper, Shield & Battery Retainer Group - S/N: 2899 and above Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

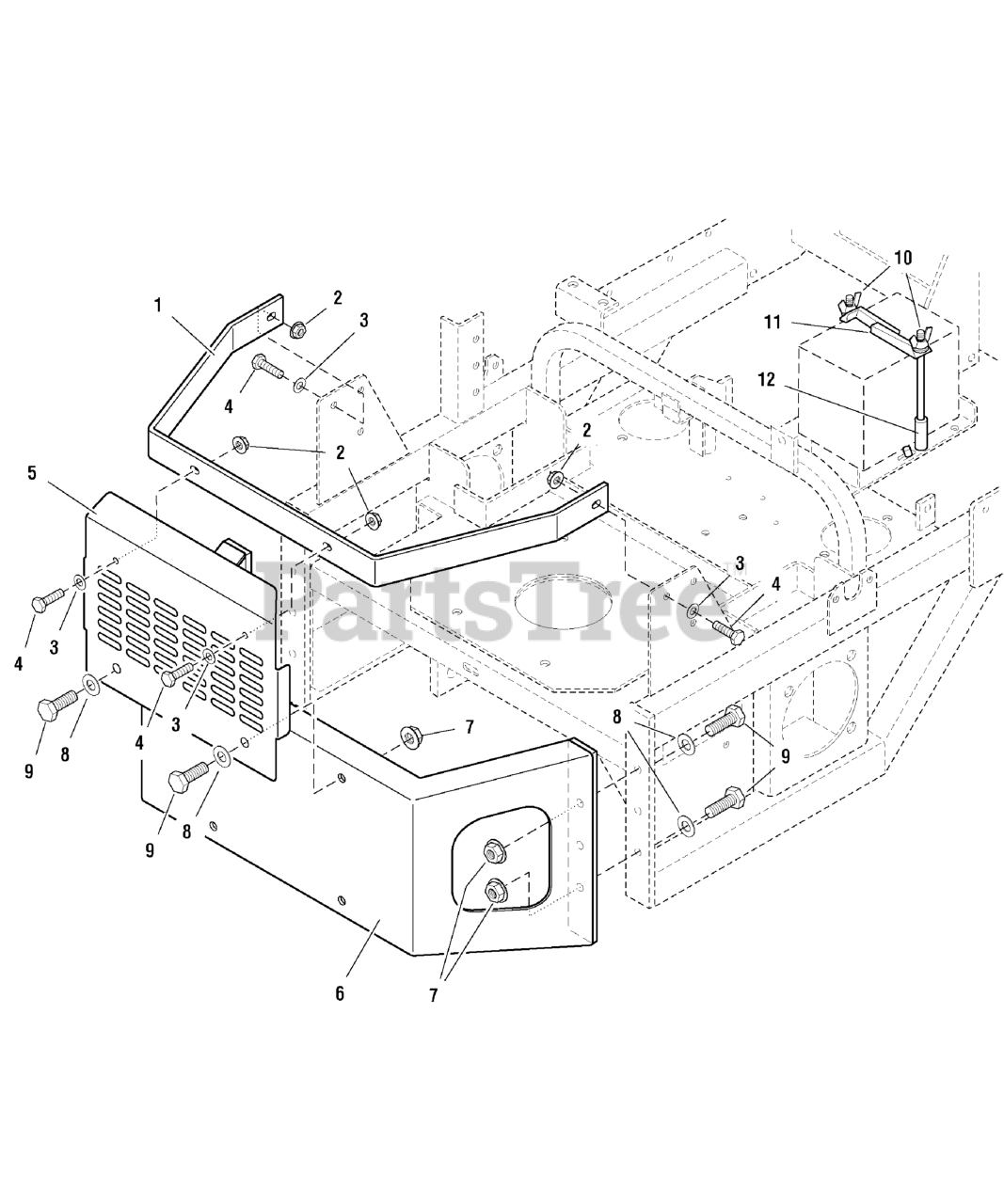

Rear Bumper, Shield & Battery Retainer Group - S/N: 2899 and above Parts Diagram

  • Title

1

Ferris 5049142B

BUMPER BAR

$

$

Currently unavailable

2

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

5

Ferris 5049147B

BUMPER SHIELD

$17.99

$

Usually ships in 2-12 days

0

6

Ferris 5047851B

BUMPER

$182.99

$

Usually ships in 2-12 days

0

7

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Ferris 5022596

BATTERY HOLDDOWN BOLT

$6.99

$

Usually ships in 2-12 days

0

11

Ferris 5022595

BATTERY HOLDDOWN
(Superseded to 5022595SM)

$23.99

$

Usually ships in 2-12 days

0

12

Ferris 5050831X3

1/4" Fuel Line, 3" Long

$

$

Not available
