1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2899 & Above) Floor & Brake Cover Group - 48" & 52" Models - S/N: 2899 and above Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

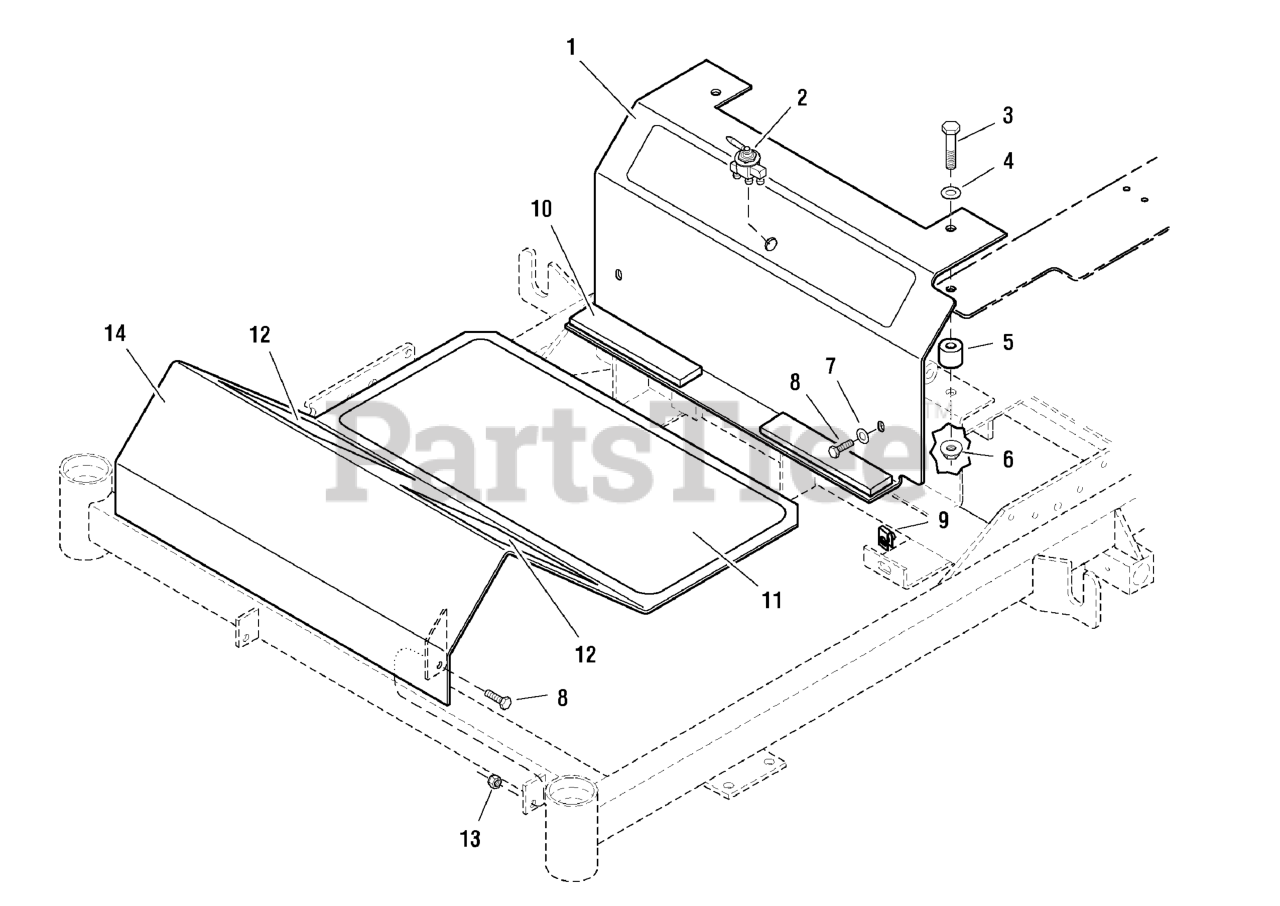

Floor & Brake Cover Group - 48" & 52" Models - S/N: 2899 and above Parts Diagram

  • Title

1

Ferris 61589

BRAKE COVER PANEL ASSEMBLY

Note: (Includes decal)

$

$

Currently unavailable

2

Ferris 5023359

VALVE, Fuel Shut Off
(Superseded to 5023359SM)

$58.99

$

Usually ships in 2-12 days

0

3

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5047125

SPACER, .39 x 1.00 x .88
(Superseded to 5047125SM)

$7.99

$

In Stock, only 3 left!

0

6

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

9

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

11

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$68.99

$

Usually ships in 2-12 days

0

12

Ferris 5047139

SAFETY WALK
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

13

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5047113B

FLOOR PLATE

$233.99

$

Usually ships in 2-12 days

0
