1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2898 & Below) Fuel Tank, Mount & Fan Shield Group - S/N: 2899 and above Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

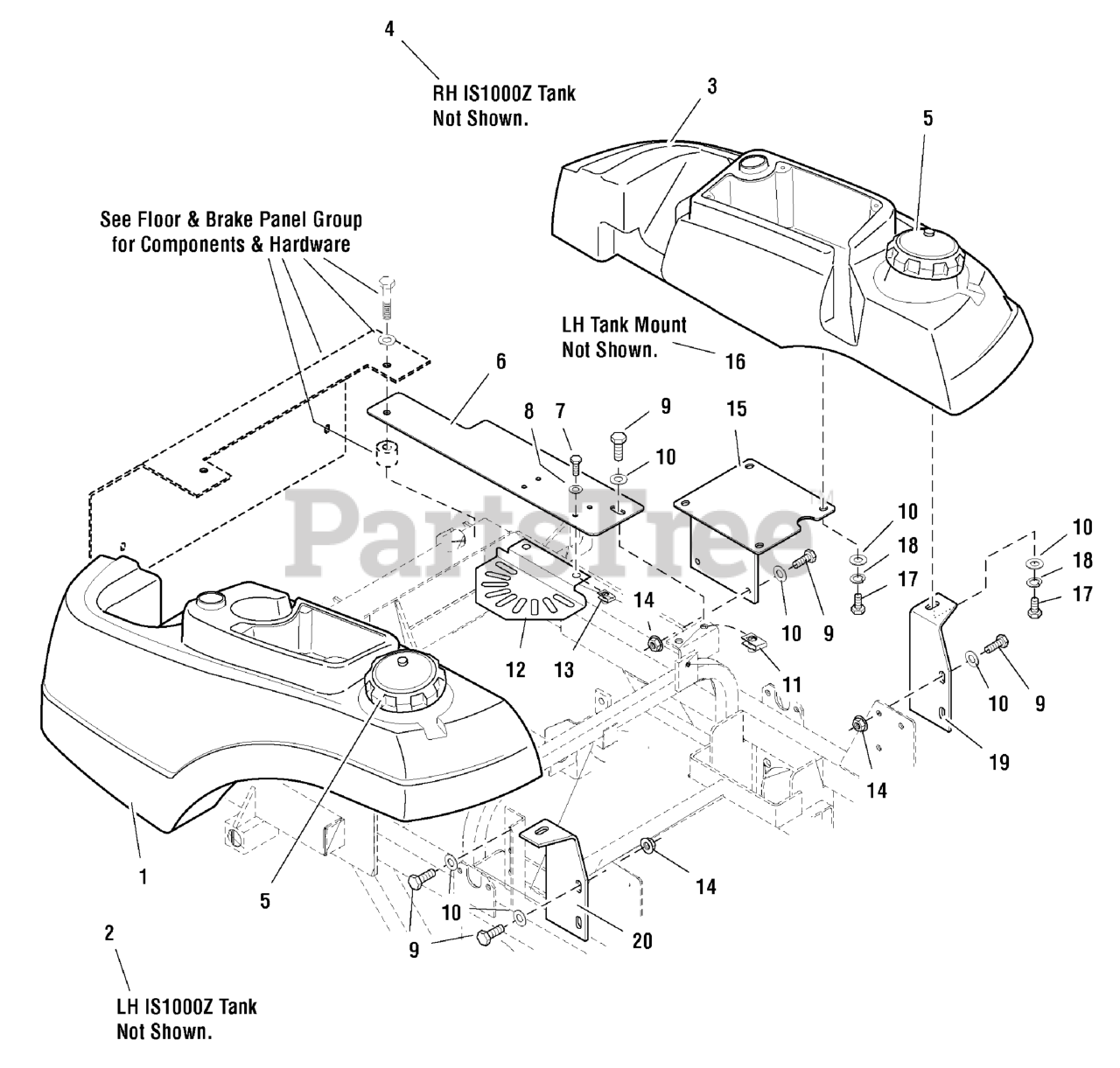

Fuel Tank, Mount & Fan Shield Group - S/N: 2899 and above Parts Diagram

  • Title
1

Ferris 5049115

FUEL TANK, 1000Z, LH

$

$

Currently unavailable

2

Ferris 5049149

FUEL TANK, IS1000Z, LH

Note: (Not Shown)

$497.99

$

Usually ships in 2-12 days

0

3

Ferris 5049116

FUEL TANK, 1000Z, RH

$456.99

$

Usually ships in 2-12 days

0

4

Ferris 5049150

FUEL TANK, IS1000Z, RH

Note: (Not Shown)

$341.99

$

Usually ships in 2-12 days

0

5

Ferris 5022158

CAP, FUEL TANK, 3-1/2 NECK

$33.99

$

Usually ships in 2-12 days

0

6

Ferris 5047073B

COVER, Fan Shield Mount

$35.99

$

Usually ships in 2-12 days

0

7

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5046645B

FAN SHIELD

$38.99

$

Usually ships in 2-12 days

0

13

Ferris 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

15

Ferris 5047149B

FUEL TANK MOUNT-RH

$45.99

$

Usually ships in 2-12 days

0

16

Ferris 5047133B

FUEL TANK MOUNT-LH

Note: (Not Shown)

$22.99

$

Usually ships in 2-12 days

0

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5047167B

BRACKET, Fuel Tank Support-RH

$

$

Currently unavailable

20

Ferris 5047166B

BRACKET, Fuel Tank Support-LH

$

$

Currently unavailable
