1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2898 & Below) 48" & 52" Mower Deck - Housing, Covers, Spindles & Blades - S/N: 2898 and below Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

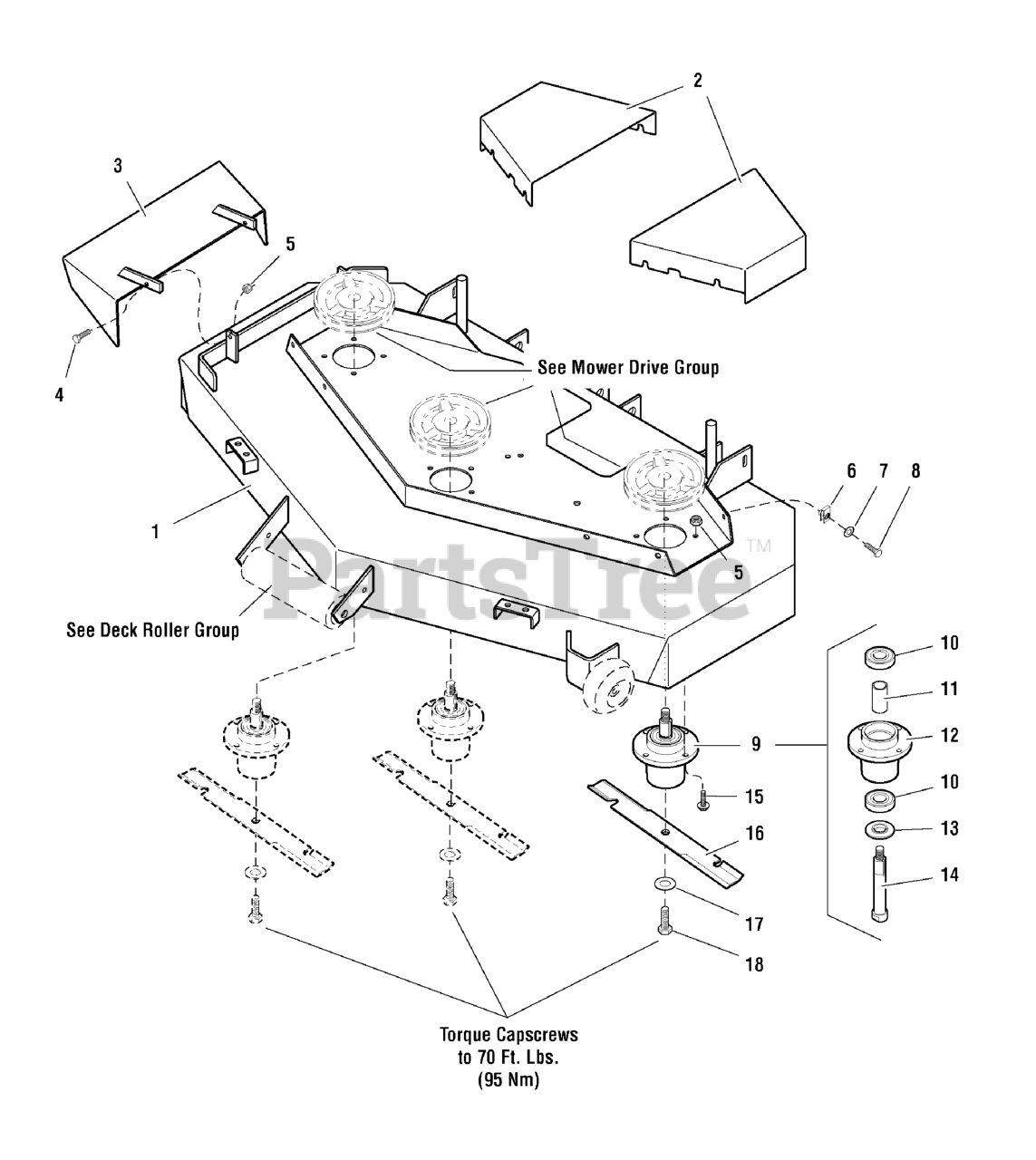

48" & 52" Mower Deck - Housing, Covers, Spindles & Blades - S/N: 2898 and below Parts Diagram

  • Title

1

Ferris 5647065

DECK SHELL W/DECALS, 48"

Note: (Includes safety decals)

$1709.99

$

Usually ships in 2-12 days

0

1

Ferris 6647098

DECK SHELL W/DECALS, 52"

Note: (Includes safety decals)

$

$

Currently unavailable

2

Ferris 5047129B

MOWER HOUSING GUARD

$131.99

$

Usually ships in 2-12 days

0

3

Ferris 5046445B

DISCHARGE CHUTE

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5046363

* SPINDLE ASSEMBLY, Complete
(Superseded to 5061095SM)

Note: (Includes Ref No. 10 - 14)

$222.99

$

In Stock, only 1 left!

0

10

Ferris 5046363X5

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

11

Ferris 5046363X4

USE 61095
(Superseded to 5046363X4YP)

$11.99

$

Usually ships in 2-12 days

0

12

Ferris 5046363X1

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

13

Ferris 5046363X3

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

14

Ferris 5046363X2

USE 61095
(Superseded to 5061095SM)

$222.99

$

In Stock, only 1 left!

0

15

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5020843S

BLADE SET, 48 DECK (SET OF 3 BLADES)

$

$

Currently unavailable

16

Ferris 5021227S

BLADE, 18" (SET OF THREE)(SV)

$80.99

$

Usually ships in 2-12 days

0

17

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

18

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0
