1000 - Weed Eater String Trimmer, Electric (Original) POWER UNIT Parts Diagram

String Trimmer, Electric

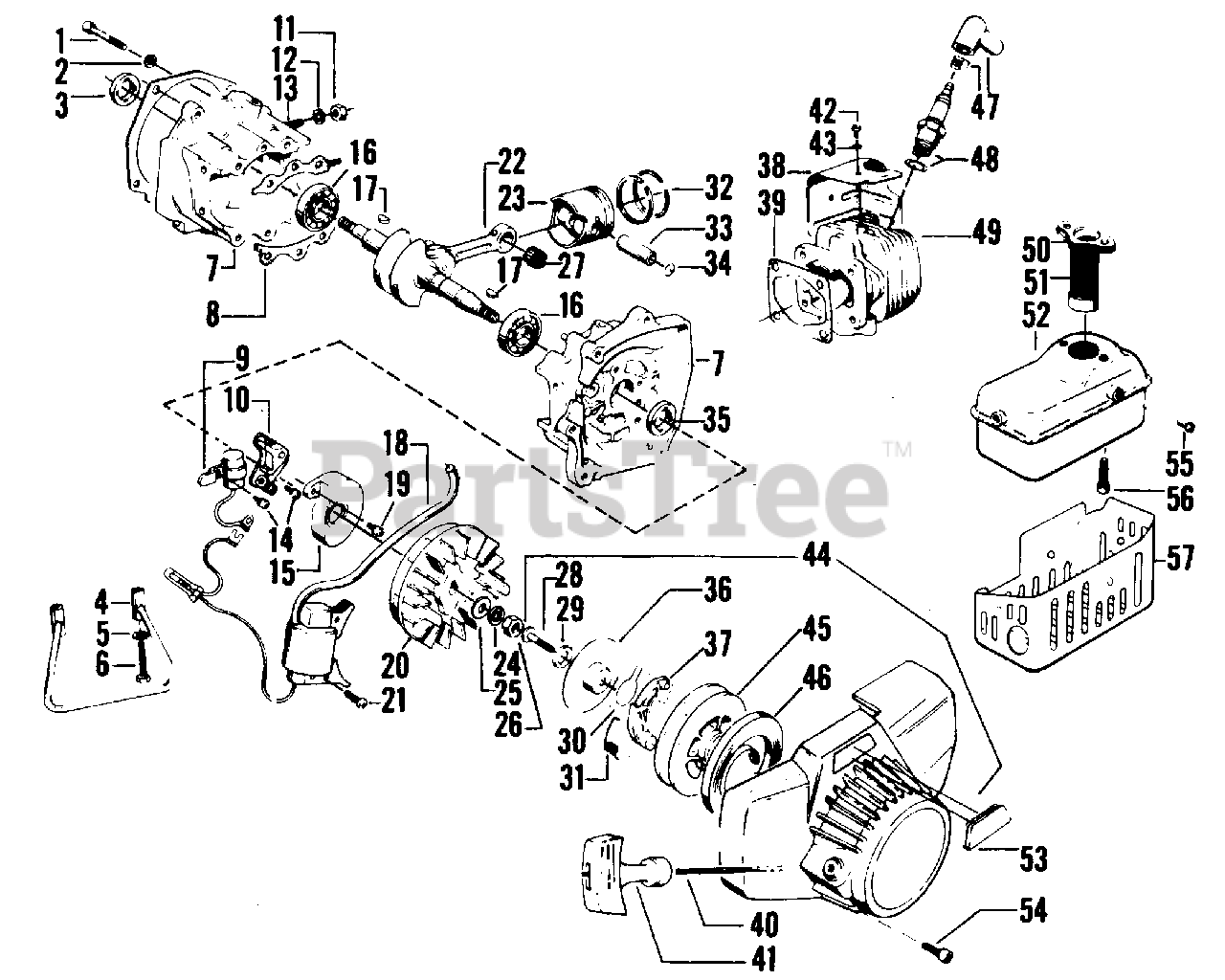

POWER UNIT Parts Diagram

  • Title

1

Poulan 530092508

Bolt

$

$

Not available

2

Poulan 530089072

Lockwasher

$

$

Not available

3

Poulan 530092495

Oil Seal (Rear)

$

$

Not available

4

Poulan 530092538

Stand

$

$

Not available

5

Poulan 530092541

Lockwasher

$

$

Not available

6

Poulan 530092539

Bolt

$

$

Not available

7

Poulan 530092513

Crankcase Complete (Incl. 3, 8, 16, 35, 39 & 56)

$

$

Not available

8

Poulan 530092493

Crankcase Gasket Set

$

$

Not available

9

Poulan 530092456

Condenser

$

$

Not available

10

Poulan 530092455

Point Set

$

$

Not available

11

Poulan 530089067

Nut, Cylinder

$

$

Not available

12

Poulan 530091578

Washer, Cylinder

$

$

Not available

14

Poulan 530092499

Screw & Washer Assembly

$

$

Not available

15

Poulan 530092457

Cover

$

$

Not available

16

Poulan 530092496

Bearing

$

$

Not available

17

Poulan 530092435

Woodruff Key

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530092458

Ignition Coil

$

$

Not available

19

Poulan 530092459

Screw

$

$

Not available

20

Poulan 530092454

Flywheel

$

$

Not available

21

Poulan 530092461

Screw

$

$

Not available

22

Poulan 530092428

Crankshaft Assembly

$

$

Not available

23

Poulan 530092429

Piston

$

$

Not available

24

Poulan 530092515

Lock washer

$

$

Not available

25

Poulan 530092542

Washer - Flywheel Flat

$

$

Not available

26

Poulan 530092517

Nut

$

$

Not available

27

Poulan 530092433

Needle Bearing

$

$

Not available

28

Poulan 530092445

Screw

$

$

Not available

29

Poulan 530092522

Washer

$

$

Not available

30

Poulan 530092433

Friction Spring

$

$

Not available

31

Poulan 530092444

Return Spring

$

$

Not available

32

Poulan 530092431

Piston Ring

$

$

Not available

33

Poulan 530092432

Piston Pin

$

$

Not available

34

Poulan 530092434

Retaining Ring

$

$

Not available

35

Poulan 530092494

Oil Seal (Front)

$

$

Not available

36

Poulan 530092442

Friction Plate

$

$

Not available

37

Poulan 530092441

Ratchet

$

$

Not available

38

Poulan 530092498

Cylinder Cover

$32.99

$

Usually ships in 3-10 days

0

39

Poulan 530092497

Cylinder Gasket

$

$

Not available

40

Poulan 530092446

Starter Rope

$

$

Not available

41

Poulan 530092447

Starter Handle

$

$

Not available

42

Poulan 530092512

Screw - Cylinder Cover

$1.49

$

Usually ships in 3-10 days

0

43

Poulan 530091623

Lockwasher, Cylinder Cover

$

$

Not available

44

Poulan 530092436

Recoil Starter Assembly (Inc.28,29,30,31,36, 37,40,41,45,46)

$143.99

$

Usually ships in 3-10 days

0

45

Poulan 530092438

Starter Pulley

$

$

Not available

46

Poulan 530092439

Recoil Spring

$

$

Not available

47

Poulan 530092505

Spark Plug Cap Assembly

$

$

Not available

48

Poulan 530092506

Spark Plug (NGK B7HS)

$

$

Not available

49

Poulan 530092491

Cylinder
(Superseded to 531838124)

$

$

Not available

50

Poulan 530092504

Muffler Gasket

$

$

Not available

51

Poulan 530092531

Screen, Spark Arrestor

$

$

Not available

52

Poulan 530092503

Muffler Assembly

$

$

Not available

53

Poulan 530092516

Plug

$

$

Not available

54

Poulan 530092437

Bolt

$

$

Not available

55

Poulan 530092514

Screw

$

$

Not available

56

Poulan 530092509

Bolt

$

$

Not available

57

Poulan 530092507

Muffler Cover Assembly

$

$

Not available
