1000 - Weed Eater String Trimmer, Electric (Original) DRIVE SHAFT Parts Diagram

String Trimmer, Electric

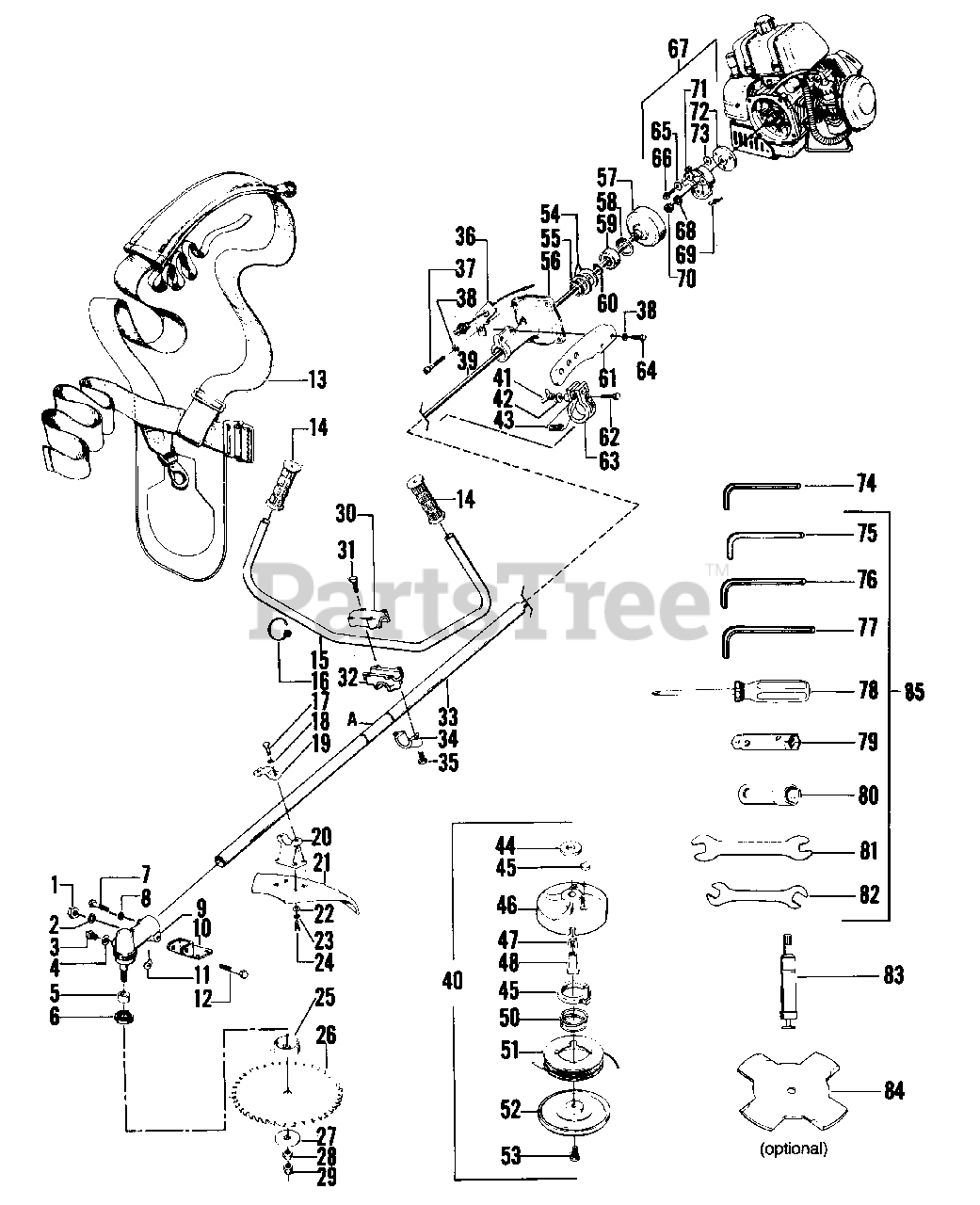

DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530093703

Nut - 6mm - Housing (Gear Box)

$

$

Not available

2

Poulan 530091578

Lockwasher - 6mm - Housing (Gear Box)

$

$

Not available

3

Poulan 530091581

Plug - Oil Hole

$

$

Not available

4

Poulan 530091582

Washer

$

$

Not available

5

Poulan 530091591

Collar Shaft

$

$

Not available

6

Poulan 530091589

Oil Seal

$

$

Not available

7

Poulan 530091579

Bolt, Housing - 6 x 12mm

$

$

Not available

8

Poulan 530091578

Lockwasher, Bearing Housing

$

$

Not available

9

Poulan 530092417

Gear Box Assembly

$

$

Not available

10

Poulan 530093706

Bracket Shield/Gear Box See Service Ref.1

$

$

Not available

11

Poulan 530091584

Filter, Washer

$

$

Not available

12

Poulan 530093704

Bolt, Gear Box - 6mm x 34mm

$

$

Not available

13

Poulan 530092117

Shoulder Strap Assembly

$

$

Not available

14

Poulan 530091402

Grip, Handlebar

$

$

Not available

15

Poulan 530092248

Handiebar

$

$

Not available

16

Poulan 530024675

Throttle Cable Tie Strap

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530091616

Bolt, Bracket Shield Assembly

$

$

Not available

18

Poulan 530091615

Washer, Bracket Shield Assembly

$

$

Not available

19

Poulan 530092414

Upper Cap Bracket, Shield Assembly

$

$

Not available

20

Poulan 530092415

Lower Bracket, Shield Assembly

$

$

Not available

21

Poulan 530093743

Shield

$14.99

$

Usually ships in 3-10 days

0

22

Poulan 530091622

Flat Washer

$

$

Not available

23

Poulan 530091623

Lock Washer

$

$

Not available

24

Poulan 530093705

Screw, Shield

$1.49

$

Usually ships in 3-10 days

0

25

Poulan 530092143

Upper Blade Adaptor

$

$

Not available

26

Poulan 952701547

10" Brush Blade

$25.99

$

Usually ships in 3-10 days

0

27

Poulan 530091594

Blade Adaptor (Lower)

$

$

Not available

28

Poulan 530091596

Nut

$

$

Not available

29

Poulan 530091595

Cap Nut

$

$

Not available

30

Poulan 530092411

Upper Cap, Handle Clamp Assembly

$

$

Not available

31

Poulan 530092409

Screw, Handlebar Clamp Assembly

$

$

Not available

32

Poulan 530092412

Middle Block, Handlebar Clamp Assembly

$

$

Not available

33

Poulan 530092402

Drive Shaft Housing Assembly

$

$

Not available

34

Poulan 530092413

Lower Cap, Handlebar Clamp Assembly

$

$

Not available

35

Poulan 530093165

Screw, Handlebar Clamp Assembly

$

$

Not available

36

Poulan 530010395

Run/Stop Switch Assembly

$15.99

$

Usually ships in 3-10 days

0

37

Poulan 530092368

Bolt, Motor Leg

$

$

Not available

38

Poulan 530092369

Lockwasher

$

$

Not available

39

Poulan 530092401

Drive Shaft

$

$

Not available

40

Poulan 530093954

Cutting Head Ass'y, (Incl. #44-53 & 74)

$

$

Not available

41

Poulan 530092422

Wing Nut

$

$

Not available

42

Poulan 530092423

Washer

$

$

Not available

43

Poulan 530092424

Spring

$

$

Not available

44

Poulan 530091664

Spacer

$

$

Not available

45

Poulan 530093602

Release Button Ass'y, (Incl. Lock Ring)

$

$

Not available

46

Poulan 530091656

Hub

$21.99

$

Usually ships in 3-10 days

0

47

Poulan 530091425

Line Saver

$

$

Not available

48

Poulan 530091423

Drive Adaptor

$

$

Not available

50

Poulan 530091657

Spring

$

$

Not available

51

Poulan 952701526

Spool w/line
(Superseded to 952711515)

$

$

Not available

52

Poulan 530091424

Cover, Cutting Head

$

$

Not available

53

Poulan 530091662

Screw, Cover

$

$

Not available

54

Poulan 530092396

Spacer, Clutch Housing

$

$

Not available

55

Poulan 530092397

Snap Ring, Clutch Housing

$

$

Not available

56

Poulan 530092398

Clutch Housing

$

$

Not available

57

Poulan 530092393

Drum, Clutch

$

$

Not available

58

Poulan 530092394

Snap Ring, Clutch Housing

$

$

Not available

59

Poulan 530092395

Bearing, Clutch Housing

$13.99

$

Usually ships in 3-10 days

0

60

Poulan 530091592

Snap Ring, Clutch Housing

$

$

Not available

61

Poulan 530092399

Bracket, Shoulder Harness

$14.99

$

Usually ships in 3-10 days

0

62

Poulan 530092421

Bolt

$

$

Not available

63

Poulan 530092419

Clamp - Tension

$

$

Not available

64

Poulan 530089008

Bolt, Shoulder Harness Bracket

$

$

Not available

65

Poulan 530092385

Washer, Clutch Shoe

$

$

Not available

66

Poulan 530092389

Bolt, Clutch Shoe

$

$

Not available

67

Poulan 530092092

Clutch Assembly (Inc.65,66,69,71,72,73)

$95.99

$

Usually ships in 3-10 days

0

68

Poulan 530092391

Washer, Clutch Assembly

$

$

Not available

69

Poulan 530092388

Spring, Clutch

$3.99

$

In Stock, only 1 left!

0

70

Poulan 530092392

Nut, Clutch Assembly

$

$

Not available

71

Poulan 530092387

Clutch Shoe

$

$

Not available

72

Poulan 530092384

Clutch Rotor

$

$

Not available

73

Poulan 530092386

Washer, Clutch Shoe

$2.49

$

Usually ships in 3-10 days

0

74

Poulan 530091663

Allen Wrench - Cutting Head

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530091357

Head Removal Tool

$

$

Not available

76

Poulan 530092259

Wrench - 5 mm Hex

$

$

Not available

77

Poulan 530092258

Wrench - 4 mm Hex

$

$

Not available

78

Poulan 530092425

Screwdriver - Phillips

$

$

Not available

79

Poulan 530092256

Wrench - 10 mm & 12 mm Socket

$

$

Not available

80

Poulan 530092257

Wrench - Spark Plug Socket

$

$

Not available

81

Poulan 530091361

Wrench - 14 mm & 17 mm

$

$

Not available

82

Wrench - 8 mm & 10 mm

$

$

Not available

83

Poulan 530091413

Grease Gun

$

$

Not available

84

Poulan 952701546

Weed Blade (Optional)

$22.99

$

Usually ships in 3-10 days

0

85

Poulan 530092255

Tool Kit (Incl.#75-82)

$

$

Not available

A

Poulan 530024693

Decal - Handlebar Locator

$

$

Not available

Poulan 530064344

Operator's Manual

$

$

Not available
