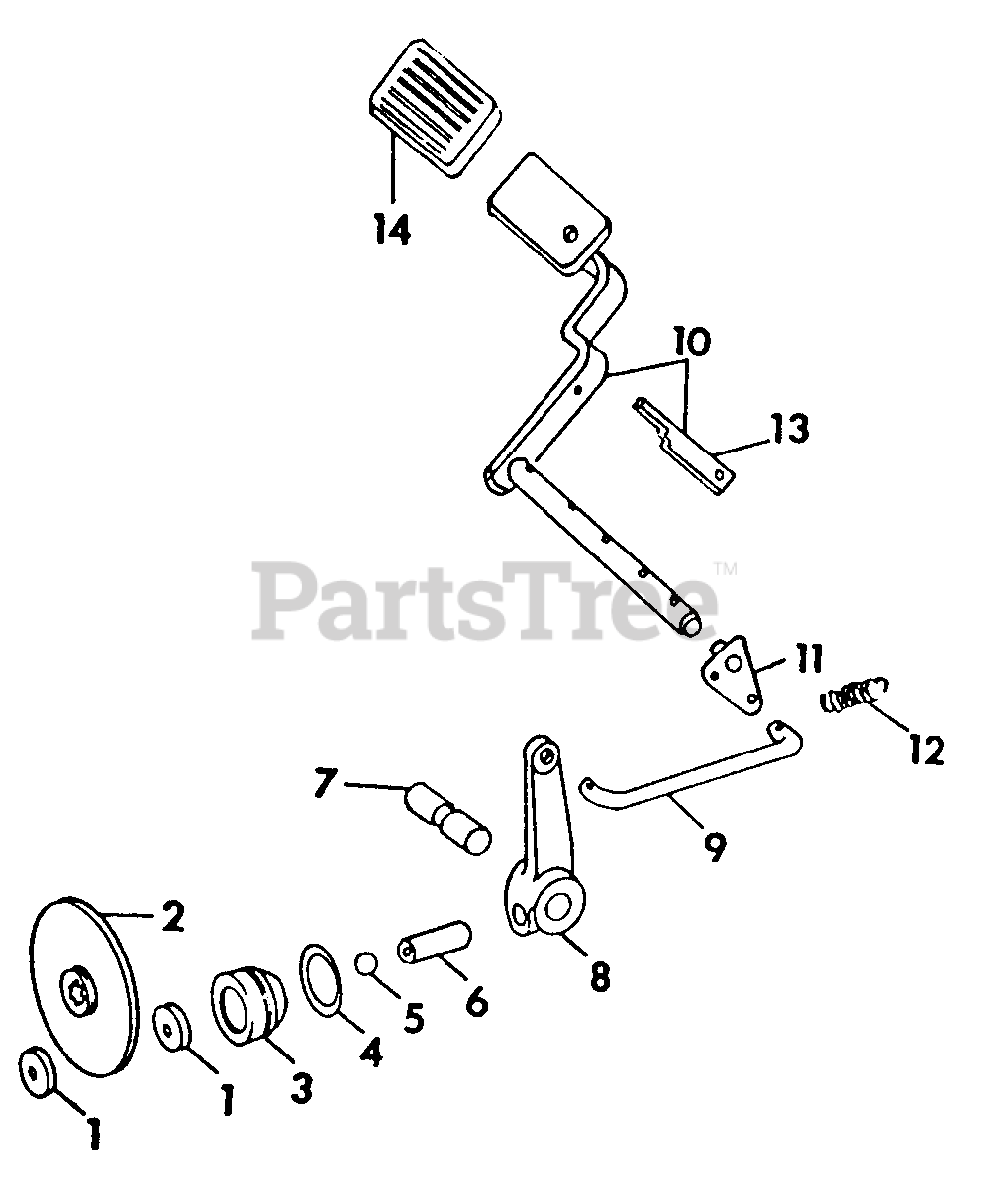

1000 (2050550U) - Cub Cadet Garden Tractor Brakes & Connections-Tractors W/internal Wet Brakes Parts Diagram

Garden Tractor

Brakes & Connections-Tractors W/internal Wet Brakes Parts Diagram

  • Title

1

Cub Cadet IH-384719-R1

Disc, Brake Lining
(Superseded to IH-384719-R2)

$25.99

$

In Stock, Qty 17

0

2

Cub Cadet IH-384717-R11

Disc Assy, Brake

$

$

Not available

3

Cub Cadet IH-384720-R2

Retainer, Brake Lining

$

$

Not available

4

Cub Cadet IH-378031-R1

O-Ring, 1-3/16 X 1-3/8 X 3/32

$

$

Not available

5

Cub Cadet IH-17018-R1

Ball, 9/16 Cr Stl

$

$

Not available

6

Cub Cadet IH-384721-R1

Rod, Brake Push

$

$

Not available

7

Cub Cadet IH-384722-R1

Pin, Brake Lever Pivot

$

$

Currently unavailable

8

Cub Cadet IH-384723-R1

Lever, Brake

$

$

Not available

Cub Cadet 712-0342

Nut, 3/8-16 Hex Jam
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

Screw, 3/8-16 X 1-3/4 Sq Hd Ov Pt Set

Note: (Common Hardware, Purchase Locally)

$

$

Not available

9

Cub Cadet 747-3020

Rod, Brake

$

$

Currently unavailable

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cotter

$4.99

$

In Stock, Qty 13

0

Cub Cadet 736-0140

Washer, 13/32 X 3/4 X .056 Znd

$7.49

$

In Stock, Qty 6

0

10

Cub Cadet 759-3110

Pedal Assy, Clutch & Brake

$

$

Not available

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Coiled Spring
(Superseded to 915-3000)

$

$

Not available

11

~NLA

Arm, Clutch & Brake Pedal

$

$

Not available

Cub Cadet IH-19689-R1

Pin, 1/4 X 1-1/4 Hv Coiled Spring
(Superseded to IH-19689-R2)

$

$

Not available

12

Cub Cadet 732-3015

Spring, Clutch Pedal Return
(Superseded to 932-3015)

$12.99

$

In Stock, Qty 10

0

13

Cub Cadet 703-0006

Ratchet

$

$

Not available

~NLA

Rivet, 1/4 X 11/16 F Hd Solid

$

$

Not available

14

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$19.99

$

In Stock, Qty 9

0
