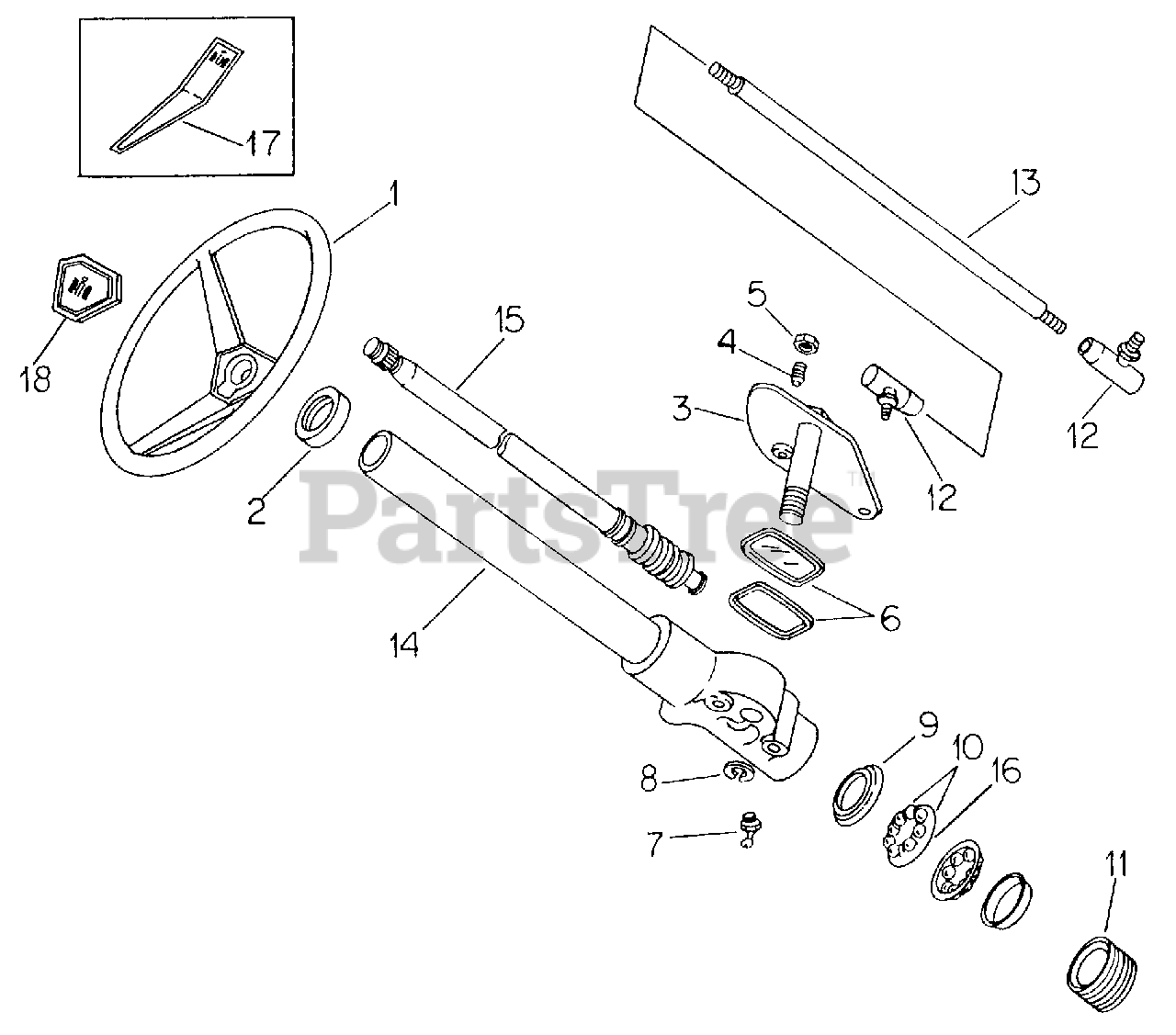

1000 (2050540U) - Cub Cadet Garden Tractor Steering Gear & Connections Parts Diagram

Garden Tractor

Steering Gear & Connections Parts Diagram

  • Title

Cub Cadet IH-548085-R91

Gear Assy, Steering
(Superseded to 703-1085)

Note: (Serial No. 530857 & below)

$

$

Not available

Cub Cadet IH-400884-R91

Gear Assy, Steering
(Superseded to 703-1085)

Note: (Serial No. 530858 & above)

$

$

Not available

Cub Cadet 703-1085

Gear Assy, Steering

Note: (Marked CCC)

$

$

Not available

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .88 Lg GR5

$7.49

$

In Stock, Qty 9

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

1

Cub Cadet 731-3000

Wheel, Steering

Note: (Replaces IH-545719-R1 steering wheel)

$

$

Not available

Cub Cadet 712-3056

Nut, 5/8-NF Jam Type 5

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 741-3000

Bearing, Upper Column
(Superseded to 941-3023)

$8.49

$

In Stock, Qty 15

0

Cub Cadet 723-3001

Seal, Steering Gear
(Superseded to 723-3040)

$

$

Not available

Washer, 3/8 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 710-3001

Screw, 3/8-16 X 7/8 Hex Hd Cap

$7.49

$

In Stock, Qty 9

0

3

Cub Cadet IH-385522-R1

Lever & Bolt Assy

$

$

Not available

Cub Cadet 712-3056

Nut, 5/8-NF Jam Type 5

$4.99

$

In Stock, only 3 left!

0

4

Cub Cadet IH-62806-C1

Stud, Cam Follower
(Superseded to IH-62806-C2)

$

$

Not available

5

Cub Cadet IH-192510-R1

Nut, Cam Follower Stud
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

6

Cub Cadet IH-394936-R91

Package, Seal & Seal Retainer

$

$

Not available

7

Cub Cadet IH-273360

Fitting, 1/4-65 Deg Angle Drive Lube

$

$

Not available

8

Cub Cadet IH-308362-C1

Washer, Flat Cdp

$

$

Not available

9

Cub Cadet 703-1029

Cup, Bearing Ball
(Superseded to 903-1029)

$

$

Not available

10

Cub Cadet IH-389081-R91

Bearing & Ball Assy
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

11

Cub Cadet IH-394288-R1

Plug, Adjusting

$

$

Not available

Cub Cadet 714-3015

Pin, 1/8 X 1/2 Cot

$

$

Not available

12

Cub Cadet 723-3000

Joint Assy, Drag Link Ball
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 12

0

Cub Cadet 712-3002

Nut, 3/8-24 C-Z Slt Hex
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

Cub Cadet 714-0507

Pin, 3/32 X 3/4 C-Z Cot

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 711-3000

Link, Drag

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex Jam
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

14

Cub Cadet IH-548086-R1

Tube Assy, Housing & Jacket

Note: (For steering gear IH-548085-R91)

$

$

Not available

Cub Cadet IH-401277-R1

Tube Assy, Housing & Jacket

Note: (For steering gear IH-400884-R91)

$

$

Not available

15

Cub Cadet IH-548087-R1

Cam & Tube Assy
(Superseded to 703-1085)

Note: (For steering gear IH-548085-R91)

$

$

Not available

Cub Cadet IH-385984-R91

Cam & Tube Assy
(Superseded to 703-1085)

Note: (For steering gear IH-400884-R91)

$

$

Not available

16

Cub Cadet IH-389081-R91

Retainer, Ball
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

17

Cub Cadet IH-546708-R2

Product Graphic, Steering Wheel Insert

Note: (Use w/IH-545719-R1 steering wheel)

$

$

Not available

18

Cub Cadet 731-3001

Cap, Steering Wheel

$

$

Not available

Cub Cadet 721-3000

O-Ring, 1-3/4 X 2.028 X 1/8

$12.99

$

Usually ships in 3-6 days

0
