100 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

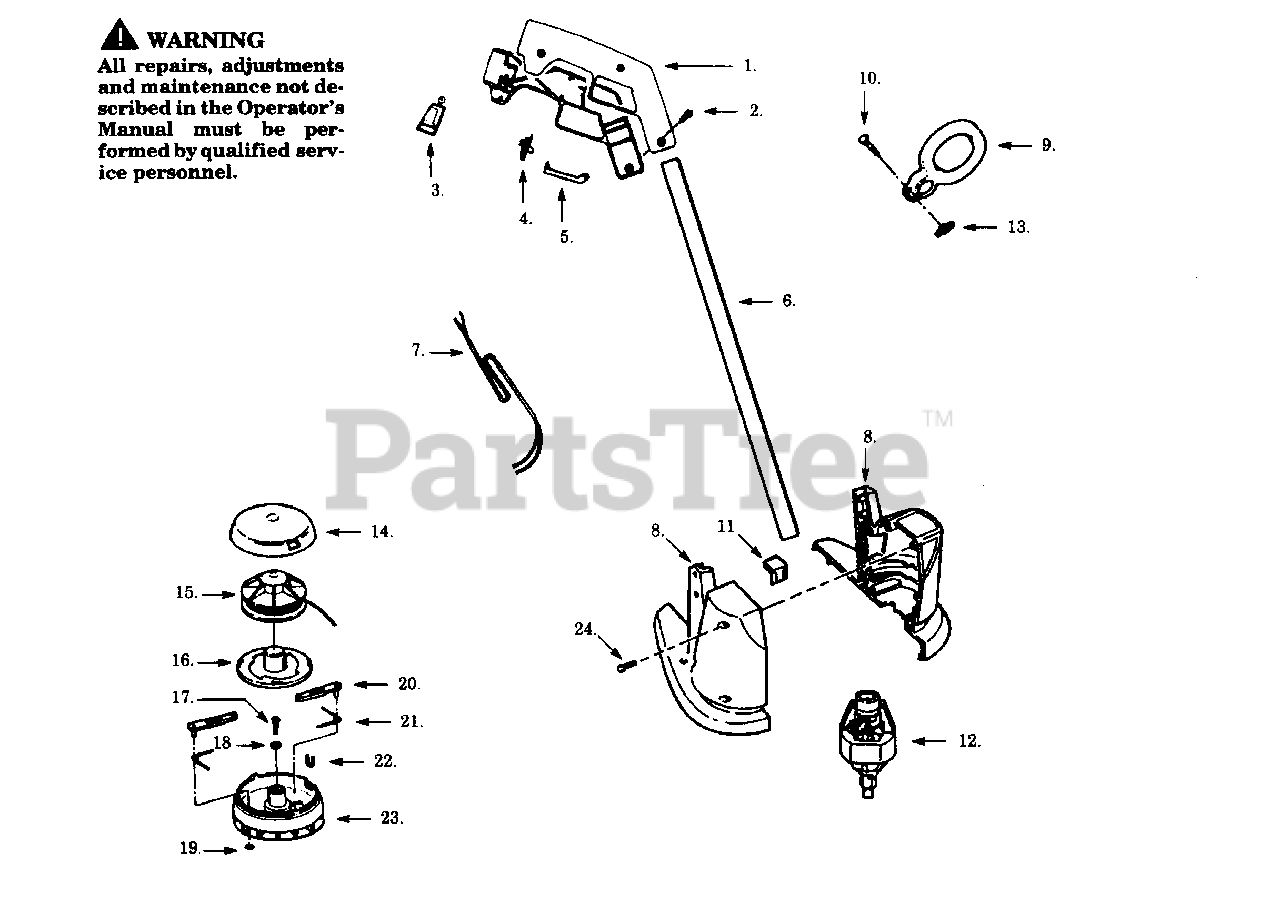

TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Poulan 530347598

Handle Set

$

$

Not available

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530347653

Cord Retainer

$

$

Not available

4

Poulan 530347897

On/Off Switch

$

$

Not available

5

Poulan 530347654

Trigger Switch

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530401592

Tube Ass'y.

$

$

Not available

7

Poulan 530401660

Plug/Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 534014580

Housing Set

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 530322295

Assist Handle

$

$

Not available

$1.99

$

Usually ships in 3-10 days

0

11

Poulan 534938002

Blade/Bracket Ass'y.

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 534102003

Motor Ass'y.

$66.99

$

Usually ships in 3-10 days

0

13

Poulan 530400013

Wing Nut

$

$

Not available

14

$

$

Not available

15

Poulan 534919002

Spool w/Line

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

17

$2.49

$

Usually ships in 3-10 days

0

18

$

$

Not available

19

Poulan 534400701

Push Nut

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

21

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534918500

Line Shield

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 530400739

Housing Ass'y.

$

$

Not available

24

$

$

Not available

Poulan 530082297

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530085012

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
