100 - Cub Cadet Garden Tractor Engine-K241a-10 Hp Parts Diagram

Garden Tractor

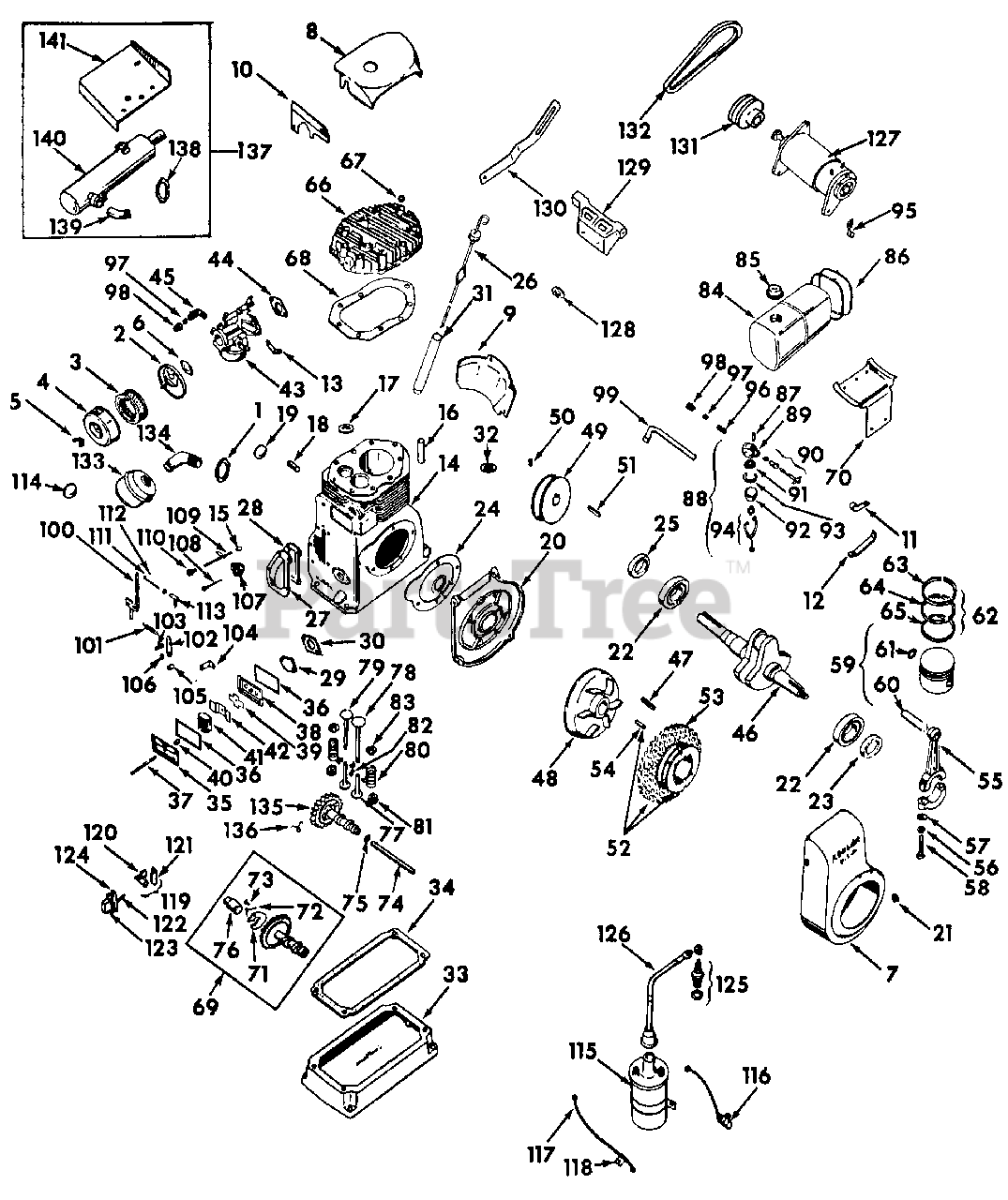

Engine-K241a-10 Hp Parts Diagram

  • Title

1

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

2

Cub Cadet KH-235101

Base, Air Cleaner

$

$

Not available

Screw, 10-32 X 3/16 Fil Hd Slt Mach

$

$

Not available

Washer, No. 10 Med Lock

$

$

Not available

~NLA

Washer, Choke Shaft

$

$

Not available

3

Cub Cadet IH-385168-R2

Element, Air Cleaner Filter
(Superseded to IH-385168-R3)

$30.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-235102

Cover, Air Cleaner

$

$

Not available

~NLA

Washer, Packing

$

$

Not available

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-275341

Gasket, Air Cleaner

$6.49

$

In Stock, only 3 left!

0

7

~NLA

Housing Assembly, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

$

$

Not available

8

Cub Cadet KH-235049

Baffle, Cylinder Head Air

$

$

Not available

9

Cub Cadet KH-235054

Baffle, Cylinder Air

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

10

Cub Cadet KH-235652

Baffle, Housing Side Air

$

$

Not available

11

Cub Cadet IH-263515-R91

Clip, Choke Cable

$

$

Currently unavailable

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock

$

$

Not available

Cub Cadet 736-0463

Washer, 17/16 X 9/16 X .062 C-Z

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet KH-A-237559

Bracket, Throttle Cable
(Superseded to KH-A-237559-S)

$

$

Not available

13

Cub Cadet KH-232683

Bracket, Choke

Note: (Also order clip KH-235603)

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

14

Crankcase Assy

Note: (For service order short block)

$

$

Not available

15

Cub Cadet KH-234866

Bearing, Needle

Note: (Governor Cross Shaft)

$

$

Not available

16

Cub Cadet KH-235007-S

Guide, Valve

$

$

Not available

17

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

18

Cub Cadet KH-235125-S

Shaft, Governor

$87.99

$

Usually ships in 2-5 days

0

19

Cub Cadet IH-172548

Plug, 1-1/8 Expansion, Crankcase

$

$

Currently unavailable

20

~NLA

Plate, Crankcase Brg

$

$

Not available

Screw, 1/4-20 X 5/8 C-Z Hex Hd Cap

$

$

Not available

21

~NLA

Plug, 5/8 Button, Crankcase Bearing Plate

$

$

Not available

22

Cub Cadet IH-ST436

Bearing, Crankcase Ball
(Superseded to IH-ST436P)

$97.99

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-47-032-06

Seal, Crankcase Brg Plate Oil

Note: (Blower Housing End)

$

$

Not available

24

Cub Cadet KH-235070

Gasket, Brg Plate

$

$

Not available

25

Cub Cadet KH-47-032-07

Seal, Crankcase Oil

Note: (Flywheel Pulley End)

$

$

Not available

26

Cub Cadet KH-A-235333

Dipstick

$

$

Not available

27

Cub Cadet KH-235026

Cover, Camshaft

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

28

Cub Cadet KH-235025

Gasket, Camshaft Cover
(Superseded to KH-235025-S)

$10.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-240282

Cover, Fuel Pump Pad

$

$

Not available

Screw, 1/4-20 X 5/8 C-Z Fil Hd Mach

$

$

Not available

30

Cub Cadet KH-52-041-17

Gasket, Fuel Pump Pad Cover

$

$

Not available

31

Cub Cadet KH-235895

Tube, Oil Fill

$

$

Not available

32

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

33

Cub Cadet KH-237588

Base, Oil Pan

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq Hd
(Superseded to KH-25-139-57-S)

Note: (Filler & Drain)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet IH-9409112

Screw w/Spring Lock Washer, 3/8-16 X 1-1/4 C-Z Hex Hd Mach

$

$

Currently unavailable

34

Cub Cadet KH-235353

Gasket, Oil Pan Base

$11.99

$

In Stock, only 2 left!

0

35

Cub Cadet KH-A-235418-S

Cover, Breather

$

$

Not available

36

Cub Cadet KH-235048

Gasket, Breather

$

$

Not available

37

Cub Cadet KH-275220

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock

$

$

Not available

38

Cub Cadet KH-235631

Plate, Breather

$

$

Not available

39

Cub Cadet KH-235047

Reed, Breather
(Superseded to KH-47-402-01-S)

$37.99

$

Usually ships in 2-5 days

0

40

Cub Cadet KH-231032

Seal, Breather

$

$

Not available

41

Cub Cadet KH-235118

Filter, Breather

$

$

Not available

42

Cub Cadet KH-235117

Baffle, Breather

$

$

Not available

43

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-770-1

Screw w/Internal Tooth Lock Washer, 5/16-18 X 1 Slt Hex Hd Cap

$

$

Not available

44

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

45

Cub Cadet IH-231510

Elbow, Carburetor to Fuel Line

$

$

Currently unavailable

46

Cub Cadet KH-47-142-09

Crankshaft

$

$

Not available

47

Cub Cadet KH-X-366-1

Key, Crankshaft

$

$

Not available

48

Cub Cadet KH-47-755-02

Flywheel

$

$

Not available

49

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

50

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

51

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

52

Cub Cadet KH-41-071-05

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet IH-121358

Nut, 5/8-18 C-Z Hex

$

$

Currently unavailable

~NLA

Screw, 8-32 X 1/4 Hex Hd Tap

$

$

Not available

Washer, 5/8 LT Lock

$

$

Not available

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

53

Cub Cadet KH-235190

Screen, Drive Cup Grass

$

$

Not available

54

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

55

Cub Cadet KH-47-067-11

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-47-067-12

Rod Assy, Connecting, .010 U/S

$

$

Not available

56

Washer, Connecting Rod Lock

$

$

Not available

57

Cub Cadet 736-0140

Washer, Connecting Rod

$7.49

$

In Stock, Qty 7

0

58

Cub Cadet IH-117116-C1

Screw, Connecting Rod

$

$

Not available

59

Cub Cadet KH-47-874-01

Piston Assy, Std

$

$

Not available

Cub Cadet KH-47-874-03

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-47-874-04

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-47-874-05

Piston Assy, .030 O/S

$

$

Not available

60

Cub Cadet KH-235572

Pin, Piston, Std

$

$

Currently unavailable

~NLA

Pin, Piston, .005 O/S

$

$

Not available

61

Cub Cadet KH-47-018-01

Retainer, Piston Pin

$

$

Not available

62

Cub Cadet KH-235287

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-235288

Ring Set, Piston, .010

$

$

Not available

Cub Cadet KH-235289

Ring Set, Piston, .020
(Superseded to KH-235289-S)

$156.99

$

In Stock, only 1 left!

0

Cub Cadet KH-235290

Ring Set, Piston, .030

$

$

Not available

63

Ring, Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

64

Ring, Center Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

65

Ring, Oil Control

Note: (Not serviced separately, order ring set)

$

$

Not available

66

Cub Cadet IH-385303-R1

Head, Cylinder

$

$

Not available

Cub Cadet IH-20248-R1

Screw, 3/8-16 X 2-1/4 C-Z Hex Hd Mach

$

$

Currently unavailable

Screw, 3/8-16 X 2-1/2 C-Z Hex Hd Mach

$

$

Not available

67

Cub Cadet KH-270889

Washer, Cylinder Head

$

$

Not available

68

Cub Cadet KH-47-041-15

Gasket, Cylinder Head

$

$

Not available

69

Cub Cadet KH-J-235675

Camshaft Assy

Note: (Used on engines w/o automatic compression release)

$

$

Not available

70

Cub Cadet KH-236939

Bracket, Fuel Tank

$

$

Currently unavailable

71

~NLA

Flyweight, Camshaft

$

$

Not available

72

~NLA

Spring, Spark Advance

$

$

Not available

73

~NLA

Pin, Camshaft Flyweight

$

$

Not available

74

Cub Cadet KH-47-380-09

Pin, Camshaft

$

$

Not available

75

Cub Cadet KH-275066

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-275067

Shim, Camshaft, .010

$

$

Not available

76

~NLA

Cam, Ignition

$

$

Not available

77

Cub Cadet KH-D-235327

Tappet Assy, Valve

$

$

Not available

78

Cub Cadet KH-235008

Valve, Intake
(Superseded to KH-235008-S)

$

$

Not available

79

Cub Cadet KH-235826

Valve, Exhaust

$

$

Not available

80

Cub Cadet KH-235010

Spring, Valve
(Superseded to KH-235010-S)

$

$

Not available

81

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

82

Cub Cadet IH-46209D

Key, Valve Spring Retainer

Note: (Order in sets of two)

$

$

Currently unavailable

83

Cub Cadet KH-235011

Retainer, Valve Spring Upper
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

84

Cub Cadet KH-235370

Tank Assy, Fuel w/Filler Cap
(Superseded to KH-47-065-14-S)

$

$

Not available

85

Cub Cadet KH-236655

Cap, Fuel Filler

$

$

Not available

86

Cub Cadet KH-A-236938

Strap, Fuel Tank

$

$

Not available

Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet IH-20244-R1

Nut, 1/4-20 Esna Stop

$

$

Not available

87

~NLA

Nipple, 1/8 X 3/4 C-Z Pipe

$

$

Not available

88

Cub Cadet KH-A-210101

Filter Assy, Fuel
(Superseded to KH-25-755-22)

$67.99

$

Usually ships in 2-5 days

0

89

Cub Cadet KH-210478

Body, Fuel Filter

$

$

Not available

90

Cub Cadet KH-A-210480

Valve Assy, Needle

$

$

Not available

91

Cub Cadet KH-210479

Screen, Filter

$

$

Not available

92

Cub Cadet KH-210467

Bowl, Fuel Filter Glass

$

$

Not available

93

Cub Cadet KH-210468

Gasket, Fuel Filter Bowl

$6.99

$

In Stock, Qty 5

0

94

Cub Cadet KH-A-210477

Bail Assy, Fuel Filter Bowl

$

$

Not available

95

Cub Cadet IH-363660-R1

Clip, Cable Harness

$

$

Currently unavailable

96

Cub Cadet KH-231509

Connector, Fuel Filter

$

$

Not available

97

Cub Cadet IH-144526-H1

Sleeve, Fuel Line
(Superseded to KH-220547-S)

$6.99

$

In Stock, only 1 left!

0

98

Cub Cadet KH-220786

Nut, Fuel Line

$

$

Not available

99

Cub Cadet KH-235372

Line, Fuel Filter to Carburetor Fuel

$

$

Not available

100

Cub Cadet KH-A-237653

Lever, Governor

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .065 C-Z

$4.49

$

In Stock, Qty 12

0

101

Cub Cadet KH-235496

Spring, Governor

$

$

Not available

102

Cub Cadet KH-235086

Bracket, Speed Control

$

$

Not available

103

Cub Cadet KH-48-755-10

Clamp, Control Bracket

$22.99

$

Usually ships in 2-5 days

0

104

Cub Cadet KH-235084

Bracket, Adjusting Screw

$

$

Not available

Screw, 1/4-20 X 1 C-Z Hex Hd Cap

$

$

Not available

Washer, 1/4 Med Lock

$

$

Not available

Cub Cadet KH-X-25-63

Washer, 17/64 X 1/2 X .062 C-Z

$

$

Not available

105

Cub Cadet KH-235085

Spacer, Adjusting Screw
(Superseded to KH-235085-S)

$

$

Not available

106

Cub Cadet KH-275690

Washer, Adjusting Screw Spacer

$

$

Not available

107

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$79.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-67

Washer, 13/32 X 3/4 X .062

$

$

Not available

108

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

109

Cub Cadet KH-A-235256-S

Shaft Assy, Governor Cross

$46.99

$

Usually ships in 2-5 days

0

110

Cub Cadet KH-235476

Bushing, Cross Shaft

$

$

Not available

111

Cub Cadet KH-235277

Rod, Ball Joint Throttle

$

$

Not available

112

Cub Cadet BS-93307

Retainer, Throttle Rod

$5.99

$

In Stock, only 3 left!

0

113

Cub Cadet IH-19726-R1

Joint, 10-32 X 1/4 Ball
(Superseded to IH-19726-R2)

$

$

Not available

Nut, 10-32 An Pltd Hex

$

$

Not available

~NLA

Washer, No. 10 Med Lock

$

$

Not available

114

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

115

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Slt Hex Hd Mach

$

$

Not available

~NLA

Washer, 17/64 X 1 X .062 C-Z

$

$

Not available

116

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

Usually ships in 2-5 days

0

117

Cub Cadet KH-A-231839

Cable Assy, Condenser to Breaker

$

$

Not available

118

Cub Cadet KH-220297

Clip, Condenser to Breaker Cable

$

$

Not available

119

Cub Cadet KH-47-150-03

Bracket & Breaker Assy

$

$

Not available

120

Cub Cadet IH-62189-C1

Breaker Point Set
(Superseded to KH-47-150-03)

$

$

Not available

121

Bracket, Point Breaker

Note: (Not serviced separately, order KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach

$

$

Not available

122

Cub Cadet KH-47-411-01

Rod, Breaker

$

$

Currently unavailable

123

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

124

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

125

Cub Cadet IH-H10C

Plug, Spark (Champion)
(Superseded to 759-3333)

$5.49

$

In Stock, only 1 left!

0

126

Cub Cadet KH-238057

Kit, Hi-Tension Spark Plug Cable Lead
(Superseded to KH-238057-S)

$

$

Not available

127

Motor Generator

Note: (For components see list of parts under details of motor generator)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 5

0

Washer, 5/16 Med Lock

$

$

Not available

128

Cub Cadet KH-231149

Shim, Motor Generator Mounting Bolt

$

$

Not available

~NLA

Shim, Motor Generator Mounting Bolt

$

$

Not available

129

Cub Cadet KH-235373

Bracket, Motor Generator Mounting

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

130

Cub Cadet KH-231273

Brace, Motor Generator Adjusting
(Superseded to KH-231273-S)

$63.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 5/16 Med Lock

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

Washer, 11/32 X 7/8 X .125 C-Z

$

$

Not available

131

Cub Cadet KH-235583

Pulley, Motor Generator Drive

Note: (Used on engines w/o automatic compression release)

$

$

Not available

131

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

Note: (Used on engines w/automatic compression release)

$72.99

$

Usually ships in 2-5 days

0

132

Cub Cadet IH-376230-R1

Belt, Motor Generator Drive

$16.99

$

Usually ships in 3-6 days

0

133

Cub Cadet KH-275679

Muffler, Exhaust

$

$

Not available

134

Cub Cadet KH-235194

Tube, Exhaust Muffler

$

$

Not available

135

~NLA

Camshaft Assy

Note: (Used on engines w/automatic compression release)

$

$

Not available

136

Cub Cadet KH-47-084-01

Spring, Camshaft Actuating

$

$

Currently unavailable

137

~NLA

Parts Accessory, Muffler & Heat Shield

$

$

Not available

138

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

139

Cub Cadet KH-235692

Tube, Exhaust Muffler

$

$

Not available

140

Cub Cadet IH-393840-R91

Muffler, Exhaust

$

$

Not available

Screw, 5/16-18 X 3/8 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Washer, 5/16 X 3/4 X .062 C-Z

$

$

Not available

141

Cub Cadet KH-237679

Baffle, Heat

$

$

Not available

Cub Cadet IH-681797-C1

Clamp, Muffler

Note: (For IH-393840-R91)

$

$

Not available

Bolt, 3/8-16 X 1-1/4 Znd Sq Nk Crg

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet KH-47-004-01

Kit, Engine Gasket Service
(Superseded to KH-47-755-08)

$149.99

$

Usually ships in 2-5 days

0
