100 - Cub Cadet Garden Tractor Engine-K161 Series-7 Hp Parts Diagram

Garden Tractor

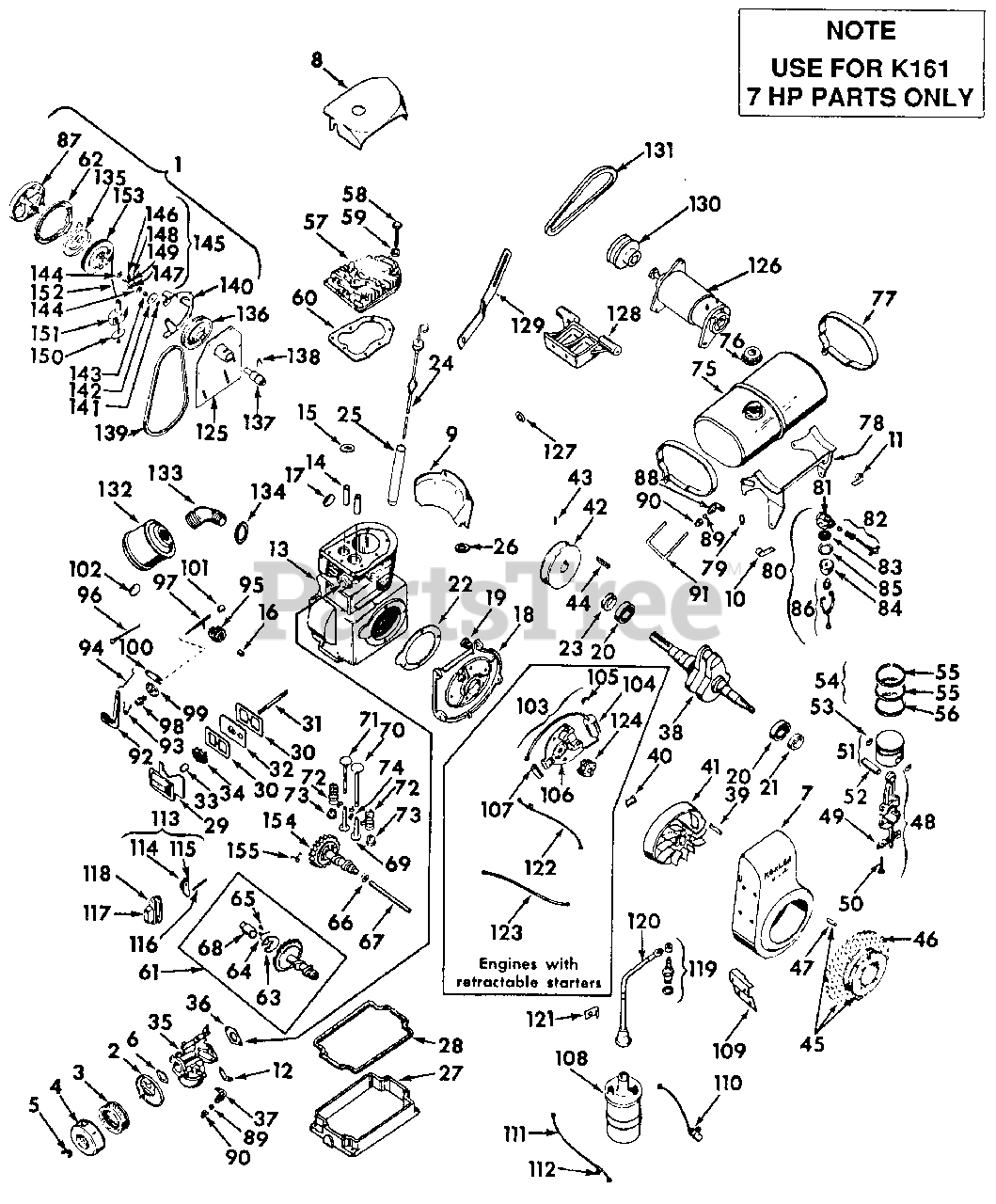

Engine-K161 Series-7 Hp Parts Diagram

  • Title

1

~NLA

Starter Assy, Retractable

$

$

Not available

Nut, 1/4-20 Hex

$

$

Not available

Screw, 1/4-20 X 3/4 Hex Hd Cap

$

$

Not available

Washer, 1/4 Med Lock

$

$

Not available

2

Cub Cadet KH-230838

Base, Air Cleaner

$

$

Not available

Screw, 8-32 X 3/8 Rd Hd Mach

$

$

Not available

Cub Cadet IH-121841

Washer, No. 8 Med Lock

$

$

Not available

3

Cub Cadet IH-385163-R2

Element, Air Cleaner Filter
(Superseded to IH-385163-R3)

$

$

Not available

4

Cub Cadet KH-230839

Cover, Air Cleaner

$

$

Not available

~NLA

Washer, Packing

$

$

Not available

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-220537

Gasket, Air Cleaner

$

$

Not available

7

~NLA

Housing Assembly, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 C-Z Slt Hex Hd Mach

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Slt Hex Hd Mach

$

$

Not available

8

Cub Cadet KH-234402

Baffle, Cylinder Head Air

$

$

Currently unavailable

9

Cub Cadet KH-230054

Baffle, Cylinder Air

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

$

$

Not available

10

Cub Cadet 726-3015

Clip, Cable Harness
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-263515-R91

Clip, Choke Cable

$

$

Currently unavailable

12

Cub Cadet KH-232683

Bracket, Choke

Note: (Also order clip)

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

13

Crankcase Assy

Note: (For service order short block)

$

$

Not available

14

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

16

~NLA

Shaft, Governor

$

$

Not available

17

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

18

~NLA

Plate, Crankcase Brg

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

19

~NLA

Plug, 5/8 Button

$

$

Not available

20

Cub Cadet IH-ST213

Bearing, Crankcase Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-X-583-1

Seal, Crankcase Brg Plate Oil

Note: (Blower Housing End)

$

$

Not available

22

Cub Cadet KH-230071

Gasket, Brg Plate

$

$

Not available

23

Cub Cadet KH-X-583

Seal, Crankcase Oil

Note: (Flywheel Pulley End)

$

$

Currently unavailable

24

Cub Cadet KH-A-231725

Dipstick

$

$

Not available

25

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

26

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

27

Cub Cadet KH-41-199-08

Base, Oil Pan

$

$

Not available

~NLA

Screw w/Spring Lock Washer, 5/16-18 X 1 C-Z Hex Hd Mach

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq-Hd Filler & Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

28

Cub Cadet KH-41-041-03

Gasket, Oil Pan Base

$

$

Not available

29

~NLA

Cover w/Filter, Breather

$

$

Not available

30

Cub Cadet KH-230048

Gasket, Breather

$

$

Not available

31

~NLA

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock *

$

$

Not available

32

Cub Cadet KH-230066

Plate Assembly, Breather

$

$

Not available

33

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

34

Cub Cadet KH-231419

Filter, Breather
(Superseded to KH-231419-S)

$8.49

$

In Stock, Qty 6

0

35

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-140-1

Screw w/Internal Tooth Lock Washer, 1/4-20 X 3/4 C-Z Hex Hd Cap

$

$

Not available

36

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

37

~NLA

Elbow, Carburetor to Fuel Line

$

$

Not available

38

Cub Cadet KH-230450

Crankshaft

$

$

Not available

39

Cub Cadet 714-3016

Key, Crankshaft

$

$

Not available

40

~NLA

Washer, Flywheel Tension

Note: (Engines with retractable starter)

$

$

Not available

41

Cub Cadet KH-231276

Flywheel

$

$

Not available

42

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

43

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

44

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

45

Cub Cadet KH-41-071-04

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet IH-121358

Nut, 5/8-18 C-Z Hex

$

$

Currently unavailable

Washer, 8-32 X 1/4 C-Z Hex Hd Tap*

$

$

Not available

Washer, 5/8 Lt Lock *

$

$

Not available

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

46

~NLA

Screen, Drive Cup Grass

$

$

Not available

47

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

48

Cub Cadet KH-B-230039

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-B-230039-10

Rod Assy, Connecting, .010 U/S

$

$

Not available

49

Cub Cadet KH-230525

Lock, Connecting Rod Screw

$

$

Not available

50

~NLA

Screw, Connecting Rod

$

$

Not available

51

Cub Cadet KH-41-874-01

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-02

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-03

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-04

Piston Assy, .030 O/S

$

$

Not available

52

~NLA

Pin, Piston, Std

$

$

Not available

~NLA

Pin, Piston, .005 O/S

$

$

Not available

~NLA

Pin, Piston, .010 O/S

$

$

Not available

53

Cub Cadet KH-230004

Retainer, Piston Pin

$

$

Not available

54

Cub Cadet KH-231424

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-231425

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-231426

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-231427

Ring Set, Piston, .030 O/S

$

$

Not available

55

Ring, Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

56

Ring, Oil Control

Note: (Not serviced separately, order ring set)

$

$

Not available

57

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

58

Cub Cadet KH-41-086-02

Screw, Cylinder Head

$

$

Not available

59

Cub Cadet KH-220534

Washer, Cylinder Head

$

$

Not available

60

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

61

Camshaft Assy

Note: (Order Kit KH-A-230155-S)

$

$

Not available

62

~NLA

Flange, Intermediate

$

$

Not available

63

~NLA

Flyweight, Camshaft

$

$

Not available

64

~NLA

Spring, Spark Advance

$

$

Not available

65

~NLA

Pin, Camshaft Flyweight

$

$

Not available

66

Cub Cadet KH-230293

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-230294

Shim, Camshaft, .010

$

$

Not available

67

Cub Cadet KH-41-380-03

Pin, Camshaft

$

$

Not available

68

~NLA

Cam, Ignition

Note: (Engines with retractable starter)

$

$

Not available

~NLA

Cam, Ignition

Note: (Engines with electric starter)

$

$

Not available

69

~NLA

Tappet, Valve

$

$

Not available

70

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

71

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

72

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

73

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

74

Cub Cadet IH-46209D

Key

$

$

Currently unavailable

75

Cub Cadet KH-230164

Tank Assy, Fuel w/Filler Cap
(Superseded to KH-41-065-19-S)

$

$

Not available

76

Cub Cadet KH-236655

Cap

$

$

Not available

77

Cub Cadet KH-A-234167

Strap

$

$

Not available

Cub Cadet IH-20244-R1

NUT

$

$

Not available

78

Cub Cadet KH-234168

Bracket Assy, Fuel Tank

$

$

Not available

79

~NLA

$

$

Not available

80

Cub Cadet KH-A-210101

Filter
(Superseded to KH-25-755-22)

$67.99

$

Usually ships in 2-5 days

0

81

Cub Cadet KH-210478

Top

$

$

Not available

82

Cub Cadet KH-A-210480

Valve Assy

$

$

Not available

83

Cub Cadet KH-210479

Screen

$

$

Not available

84

Cub Cadet KH-210467

Bowl

$

$

Not available

85

Cub Cadet KH-210468

Gasket

$6.99

$

In Stock, Qty 5

0

86

Cub Cadet KH-A-210477

Bail Assy, Fuel Filter Bowl

$

$

Not available

87

Cub Cadet KH-230796

Cover

$

$

Not available

88

Cub Cadet KH-X-380-1

Connector
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

89

Cub Cadet IH-144526-H1

Sleeve
(Superseded to KH-220547-S)

$6.99

$

In Stock, only 1 left!

0

90

Cub Cadet KH-220786

Nut

$

$

Not available

91

Cub Cadet IH-401968-R1

Line, Fuel Filter to Carburetor Fuel

$

$

Not available

92

Cub Cadet KH-232614

Lever

$

$

Not available

Cub Cadet KH-X-67-46

SCREW

$

$

Not available

Cub Cadet 712-3006

Hex Nut, 1/4-20 Gr

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-121841

WASHER

$

$

Not available

Cub Cadet IH-131015

Washer, 3/16 X 7/16 X .049 C-Z

$

$

Currently unavailable

Cub Cadet 736-0463

Flat Washer

$4.49

$

In Stock, Qty 12

0

93

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

94

Cub Cadet KH-230078

Linkage

$

$

Not available

95

Cub Cadet KH-A-235743-S

Gear

$79.99

$

Usually ships in 2-5 days

0

96

Cub Cadet KH-231355

Pin
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

WASHER-PLAIN 1/4"

$

$

Not available

97

Cub Cadet KH-230540-S

Shaft

$116.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-58

Washer, 7/32 X 3/8 X .031 C-Z

$

$

Not available

98

Cub Cadet KH-230476

Bushing, Cross Shaft
(Superseded to KH-230476-S)

$

$

Not available

99

Cub Cadet KH-230149

Disc

$

$

Not available

100

Cub Cadet KH-230477

Bracket

$

$

Not available

101

Cub Cadet KH-234866

Bearing, Cross Shaft Needle

$

$

Not available

102

Cub Cadet IH-172548

Plug

$

$

Currently unavailable

103

UNKNOWN

$

$

Not available

104

~NLA

$

$

Not available

105

~NLA

$

$

Not available

106

Cub Cadet KH-A-235741

Stator

$

$

Not available

Cub Cadet 710-0377

Screw w/Internal Tooth Lock Washer, 1/4-20 X 5/8 C-Z Hex Hd Cap

$

$

Not available

107

~NLA

$

$

Not available

Cub Cadet IH-131954

SCREW

$

$

Not available

108

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

Cub Cadet 736-0173

Flat Washer, .28 ID X

$4.49

$

In Stock, Qty 20+

0

109

~NLA

$

$

Not available

110

Cub Cadet IH-62188-C1

Condenser
(Superseded to KH-230722-S)

$31.99

$

Usually ships in 2-5 days

0

111

~NLA

Cable Assy, Condenser to Breaker

$

$

Not available

Cub Cadet KH-A-230371

Cable Assy, Condenser to Breaker

$

$

Not available

112

Cub Cadet KH-230249

Clip

$

$

Not available

113

Cub Cadet KH-47-150-03

Breaker

$

$

Not available

114

Cub Cadet IH-62189-C1

Set
(Superseded to KH-47-150-03)

$

$

Not available

115

Bracket, Point Breaker

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach*

$

$

Not available

116

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available

117

Cub Cadet KH-232535

Cover
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

SCREW

$

$

Not available

118

Cub Cadet KH-52-041-11

Gasket
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

119

Cub Cadet IH-J8C

Plug
(Superseded to 759-3339)

$3.49

$

In Stock, Qty 19

0

120

Cub Cadet KH-238057

Kit, Lead
(Superseded to KH-238057-S)

$

$

Not available

121

~NLA

$

$

Not available

122

~NLA

$

$

Not available

123

~NLA

Sleeve, Ground Cable

$

$

Not available

124

Cub Cadet KH-230360

Magnet

$

$

Currently unavailable

125

~NLA

$

$

Not available

Cub Cadet 710-3000

Hex Screw, 3/8"-16
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet IH-138542

Washer, 3/8 C-Z Int Tooth Lock

$

$

Not available

Cub Cadet 736-0140

Flat Washer

$7.49

$

In Stock, Qty 7

0

126

Motor Generator

$

$

Not available

Cub Cadet 710-0376

Hex Screw, 5/16"-18 X 1.0" Grade 5

$3.99

$

In Stock, Qty 5

0

127

Cub Cadet KH-231149

Shim

$

$

Not available

~NLA

Shim, Motor Generator Mounting Bolt

$

$

Not available

128

~NLA

$

$

Not available

Cub Cadet IH-24840-R1

BOLT

$

$

Not available

Washer, 3/8 Med Lock *

$

$

Not available

129

~NLA

$

$

Not available

Cub Cadet 710-0118

Hex Screw, .313" X .75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-24840-R1

BOLT

$

$

Not available

Cub Cadet IH-280185-R1

Washer, 11/32 X 3/4 X .074 C-Z

$

$

Currently unavailable

130

Cub Cadet KH-235583

Pulley, Motor Generator Drive

$

$

Not available

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

131

Cub Cadet IH-376230-R1

Belt

$16.99

$

Usually ships in 3-6 days

0

132

Cub Cadet KH-230410

Muffler
(Superseded to KH-230410-S)

$

$

Not available

133

Cub Cadet KH-231820

Elbow, Exhaust Muffler
(Superseded to KH-231820-S)

$95.99

$

Usually ships in 2-5 days

0

134

Cub Cadet 712-0250

Nut

$

$

Not available

135

~NLA

$

$

Not available

136

~NLA

$

$

Not available

137

Cub Cadet IH-606164-C91

Bearing, Retractable Starter Ball

$

$

Currently unavailable

138

Cub Cadet IH-355768-R1

Retainer, Retractable Starter Ball Brg

$

$

Currently unavailable

139

Cub Cadet IH-214878-R1

Belt, Fan

$

$

Not available

140

~NLA

$

$

Not available

~NLA

Screw, 10-24 X 5/8 Parkerized Slt Fil Hd Mach

$

$

Not available

141

Cub Cadet IH-379310-R1

Ring

$

$

Currently unavailable

142

~NLA

$

$

Not available

143

Cub Cadet KH-220613

Spring

$

$

Not available

144

~NLA

$

$

Not available

145

Cub Cadet KH-A-220616

Shoe Assembly

$

$

Not available

146

~NLA

$

$

Not available

147

~NLA

$

$

Not available

148

Cub Cadet KH-220618

Plate

$

$

Currently unavailable

149

Cub Cadet KH-220617

Lever, Friction Shoe Brake

$

$

Currently unavailable

150

~NLA

$

$

Not available

151

Cub Cadet IH-405563-R91

Handle

$

$

Not available

152

Cub Cadet KH-231686

Cord

$

$

Not available

153

~NLA

$

$

Not available

154

~NLA

Camshaft Assy

$

$

Not available

Cub Cadet KH-A-230155-S

Camshaft Assy

$

$

Not available

155

Cub Cadet KH-47-089-01

Spring

$

$

Not available

Cub Cadet KH-41-004-01

Kit, Engine Gasket Service
(Superseded to KH-41-755-06)

$

$

Not available
