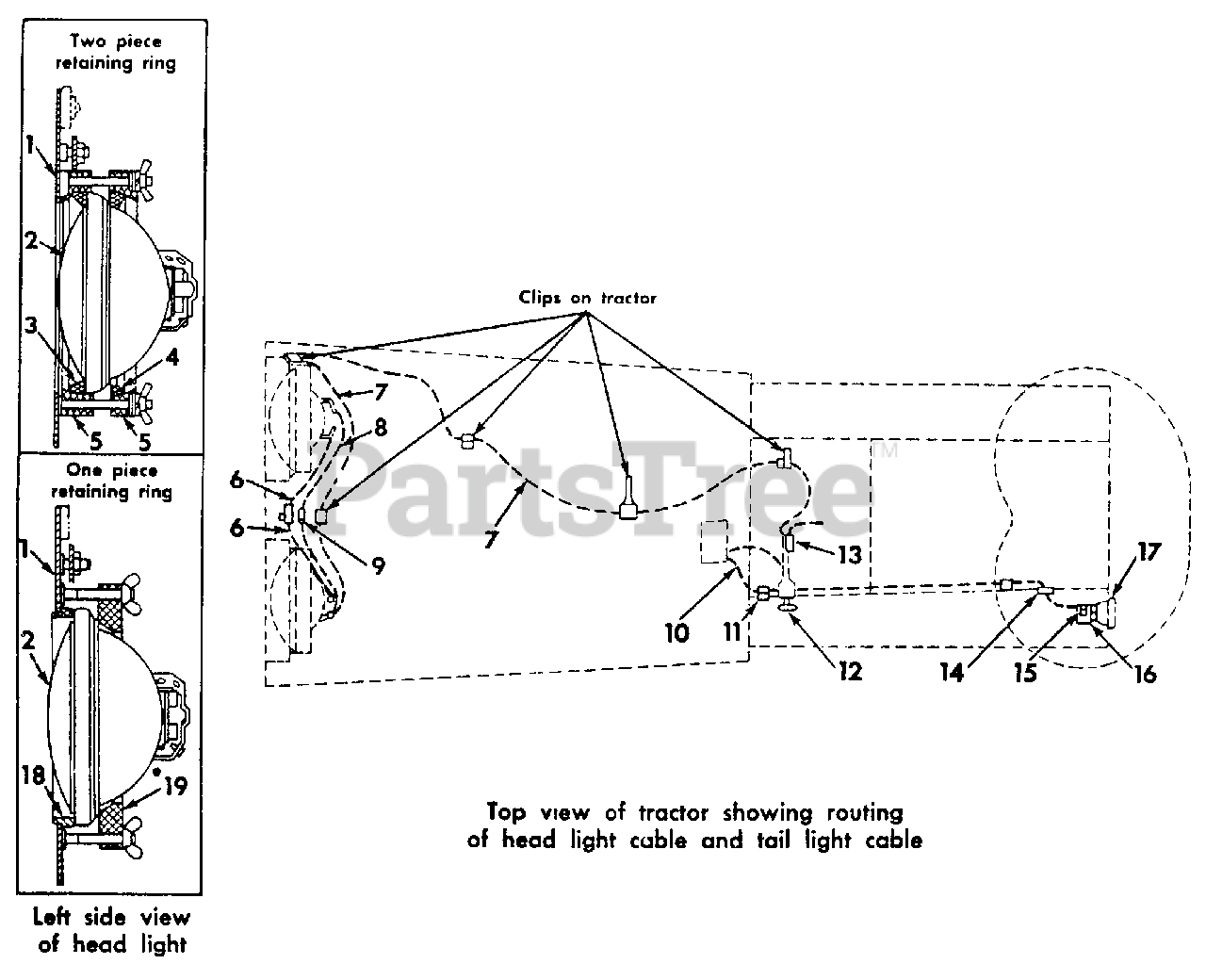

100 - Cub Cadet Garden Tractor Electric Lighting Parts Diagram

Garden Tractor

Electric Lighting Parts Diagram

  • Title

1

~NLA

Panel Assy, Headlight Mounting

$

$

Not available

Nut, 10-32 C-Z Wing

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0931

Washer, 7/32 X 1/2 X .049 C-Z

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 725-0222

Unit Assy, Headlight Sealed Beam
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

3

Cub Cadet IH-377303-R1

Ring, Headlight Retaining, Front

$

$

Currently unavailable

4

Cub Cadet IH-377304-R1

Ring, Headlight Retaining, Rear

$

$

Currently unavailable

5

~NLA

Ring, Headlight Clamping

$

$

Not available

6

~NLA

Cable Assy, Headlight to Ground

$

$

Not available

7

~NLA

Cable Assy, Lighting Switch to RH Headlight

$

$

Not available

8

Cub Cadet IH-404404-R1

Cable Assy, RH Headlight to LH Headlight

$

$

Currently unavailable

9

Cub Cadet 726-3025

Clip, Headlight Cable
(Superseded to 726-0272)

Note: (On voltage regulator mounting bracket lower mounting bolt)

$7.49

$

Usually ships in 3-6 days

0

10

~NLA

Cable Assy, Lighting Switch to Taillight

$

$

Not available

11

Cub Cadet 726-3025

Clip, Taillight Cable
(Superseded to 726-0272)

Note: (On pedestal LH rear mounting bolt)

$7.49

$

Usually ships in 3-6 days

0

Nut, 3/8-16 Hex

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

12

Cub Cadet IH-62801-DC

Switch Assy, Lighting
(Superseded to IH-62801-DCP)

$

$

Not available

~NLA

Spacer, Lighting Switch

$

$

Not available

13

~NLA

Cable Assy, Lighting Switch to Key Switch Junction

$

$

Not available

Cub Cadet IH-120114

Fuse, Cartridge Type AGC 10

$

$

Not available

14

Cub Cadet 735-3008

Grommet, Taillight Cable

$

$

Not available

15

Cub Cadet 726-3025

Clip, Taillight Cable
(Superseded to 726-0272)

Note: (On seat spring support LH rear mounting bolt)

$7.49

$

Usually ships in 3-6 days

0

16

~NLA

Bracket, Taillight Mounting

$

$

Not available

17

Cub Cadet IH-121846-C91

Taillight Assy

Note: (Only serviceable items are)

$

$

Currently unavailable

Cub Cadet IH-81714-R1

Gasket, Taillight

$

$

Currently unavailable

Cub Cadet IH-142450

Lamp, No. 67

$

$

Not available

Cub Cadet IH-157729-1

Lens, Taillight

$

$

Currently unavailable

Cub Cadet IH-121846-C91

Taillight Assy

Note: (Only serviceable items are)

$

$

Currently unavailable

Cub Cadet IH-142450

Lamp, No. 67

$

$

Not available

~NLA

Lens, Taillight

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

Cub Cadet IH-389745-R1

Ring, Headlight Retaining

$

$

Currently unavailable

19

Cub Cadet IH-389746-R1

Ring, Headlight Clamping
(Superseded to IH-389746-R2)

$

$

Not available

~NLA

Bracket, Voltage Regulator Mounting

$

$

Not available

~NLA

Product Graphics, Headlight Panel

$

$

Not available
