100-9678 - Toro Recycler Kit for Z Master 72" Side-Discharge Mower RECYCLER ASSEMBLY Parts Diagram

Recycler Kit for Z Master 72" Side-Discharge Mower

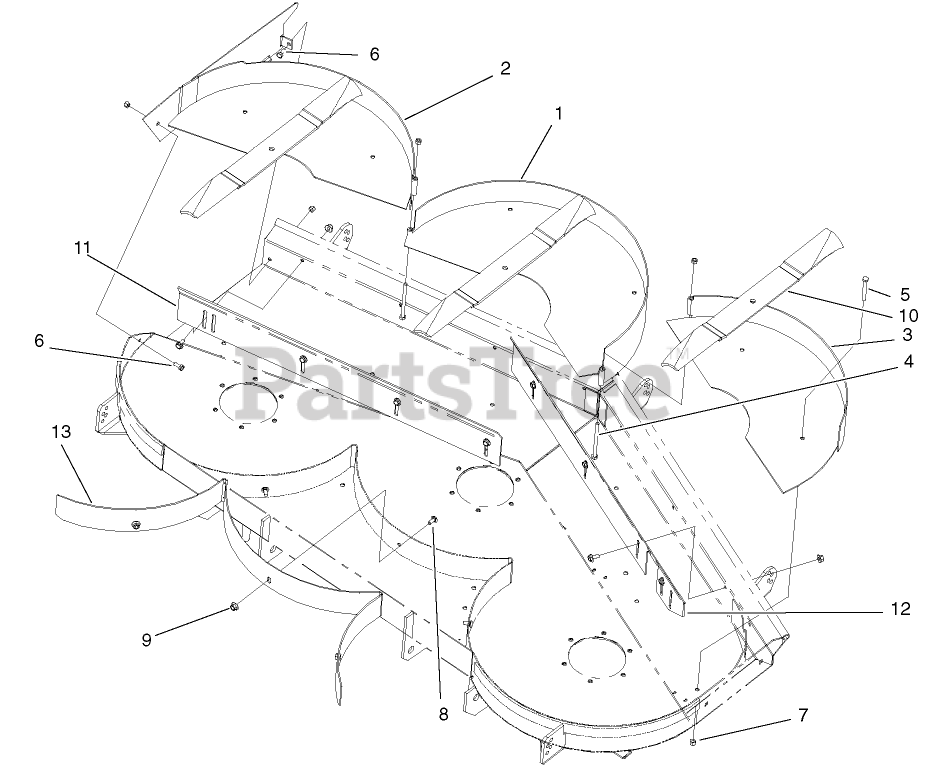

RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 100-9666-03

CENTER BAFFLE ASM

$

$

Not available

2

Toro 100-9667-03

RIGHT BAFFLE ASM

$558.99

$

Usually ships in 3-6 days

0

3

Toro 100-9668-03

LEFT BAFFLE ASM

$

$

Not available

4

Toro 322-38

SCREW-HH

$6.99

$

In Stock, Qty 5

0

5

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-4569

Blade-Recycle
(Superseded to 104-4569-03)

$46.99

$

Usually ships in 3-6 days

0

11

Toro 104-4566-03

BAFFLE - FRONT, RH

$

$

Not available

12

Toro 104-4565-03

BAFFLE - FRONT, LH

$

$

Not available

13

Toro 100-9681-03

BAFFLE ADJ CENTER 72

$

$

Not available
