100-4559 - Toro 48" Recycler Mower, Rework Kit DECK, BAFFLES AND BLADE ASSEMBLY Parts Diagram

48" Recycler Mower, Rework Kit

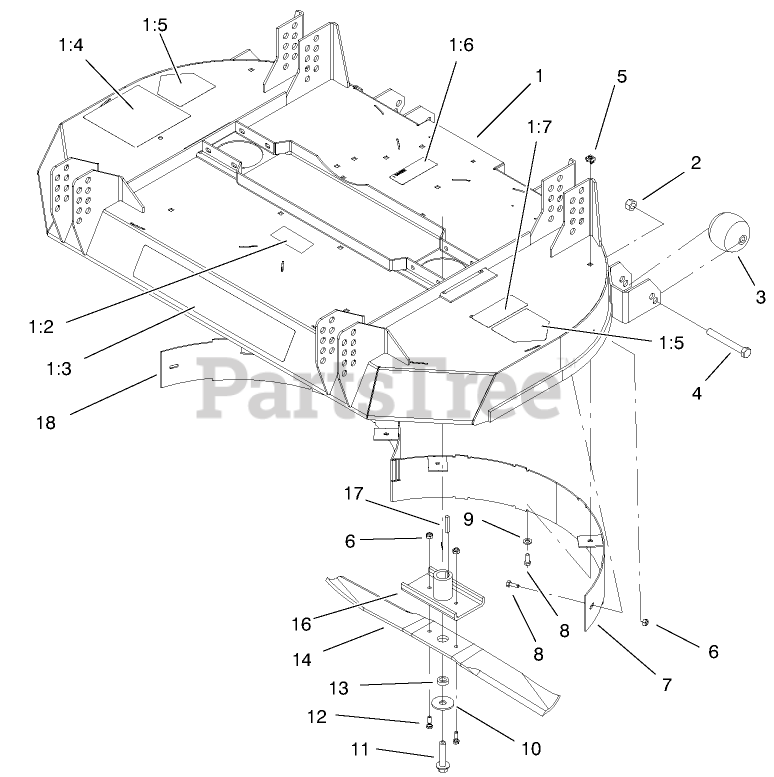

DECK, BAFFLES AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4562

48" DECK ASM W/ DECALS

$3799.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-5809

DECAL-TRANSMISSION FLUID

$

$

Not available

1:3

Toro 94-6407

DECAL - GUARDIAN 48"

$

$

Not available

1:4

Toro 98-1304

DECAL-DANGER

$

$

Not available

1:5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:6

Toro 98-7324

Decal-Danger

$

$

Not available

1:7

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

2

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

3

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

4

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

5

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

7

Toro 100-2300-01

BAFFLE ASM - LH

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

11

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 11

0

12

Toro 99-0283

BOLT-SHEAR

$7.99

$

In Stock, Qty 15

0

13

Toro 99-0217

SPACER

$14.99

$

In Stock, only 2 left!

0

14

Toro 99-4942

BLADE-25IN, LH

$69.99

$

Usually ships in 3-6 days

0

Toro 99-4941

BLADE-25IN, RH

Note: Not illustrated

$69.99

$

Usually ships in 3-6 days

0

16

Toro 98-0810-01

BLADE RETAINER ASM

$

$

Not available

17

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

18

Toro 100-2301-01

BAFFLE ASM - RH

$

$

Not available
