100-2532 - Toro Fuel Tank Kit for Dingo-Diesel FUEL TANK ASSEMBLY Parts Diagram

Fuel Tank Kit for Dingo-Diesel

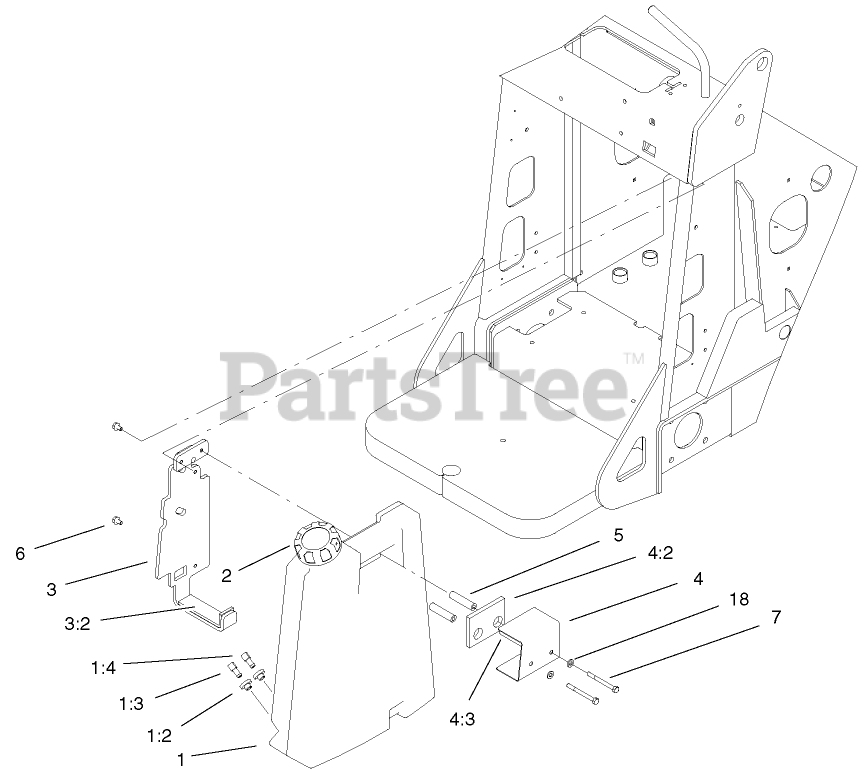

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1594

FUEL TANK ASM, DIESEL

$

$

Not available

1:2

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 100-1596

FITTING-90 DEG
(Superseded to 104-5228)

$18.99

$

Usually ships in 3-6 days

0

1:4

Toro 100-1597

FITTING-90 DEGREE
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

2

Toro 98-2710

DIESEL FUEL CAP ASM

$59.99

$

Usually ships in 3-6 days

0

3

Toro 100-2540

MOUNT ASM

$549.99

$

Usually ships in 3-6 days

0

3:2

Toro 100-2194

PAD-FOAM

$

$

Not available

4

Toro 100-2541

PLATE ASM

$

$

Not available

4:2

Toro 100-2195

PAD-FOAM

$

$

Not available

4:3

Toro 100-2196

PAD-FOAM

$14.99

$

Usually ships in 3-6 days

0

5

Toro 100-1718

SPACER

$26.99

$

Usually ships in 3-6 days

0

6

Toro 100-1719

SCREW-FLANGE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 100-1720

SCREW-HH

$

$

Not available

8

Toro 2412-108

CLAMP-WORM

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
