100-2404 - Toro Air Cleaner Kit for Out Front Z AIR CLEANER KIT Parts Diagram

Air Cleaner Kit for Out Front Z

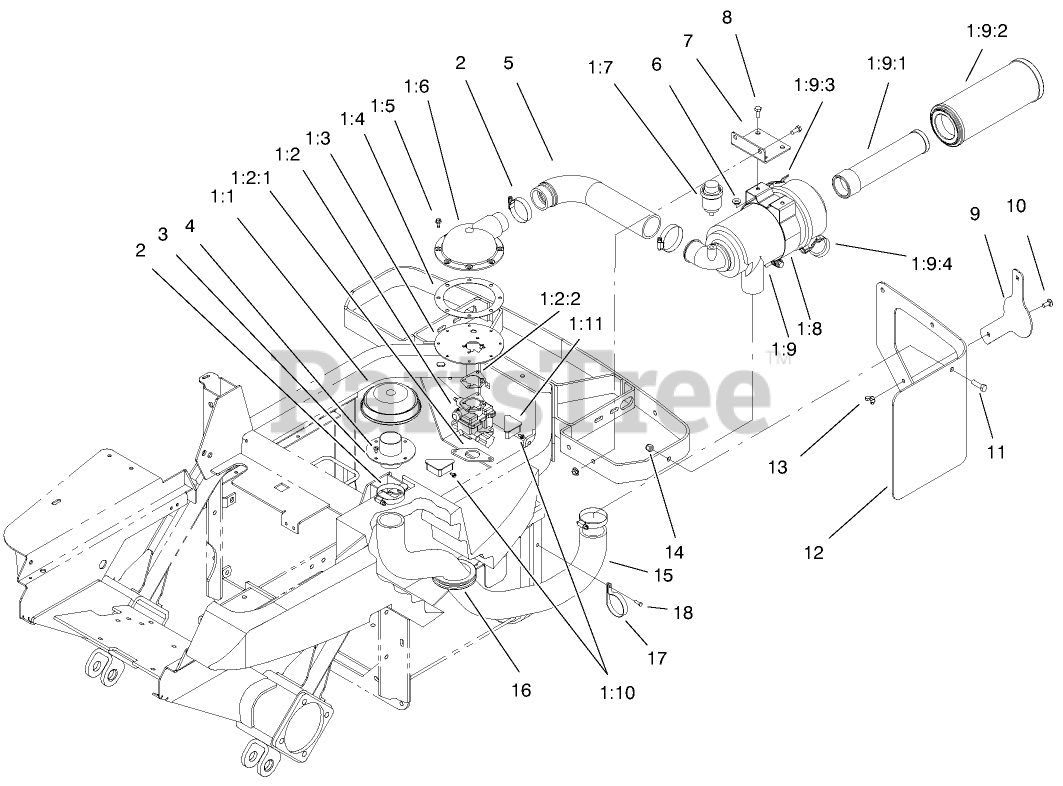

AIR CLEANER KIT Parts Diagram

  • Title

1:1

Kohler 25 324 02

Hood
(Superseded to 25 324 04-S)

Note: Obtain from Kohler

$49.99

$

Usually ships in 2-5 days

0

1:2

2485375

Carburetor Kit (only on:100-2402)

Note: Obtain from Kohler

$

$

Not available

1:2

2485376

Carburetor Kit (only on:100-2403)

Note: Obtain from Kohler

$

$

Not available

1:2

2485377

Carburetor Kit (only on:100-2404)

Note: Obtain from Kohler

$

$

Not available

1:2:1

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Obtain from Kohler

$9.49

$

In Stock, Qty 9

0

1:2:2

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Obtain from Kohler

$2.99

$

In Stock, Qty 19

0

1:3

2402935

Plate-Adapter

Note: Obtain from Kohler

$

$

Not available

1:4

2404138

Gasket

Note: Obtain from Kohler

$

$

Not available

1:5

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Obtain from Kohler

$3.99

$

In Stock, Qty 13

0

1:6

2402928

Adapter

Note: Obtain from Kohler

$

$

Not available

1:7

Toro 99-4664

FILTER MINDER

$133.99

$

Usually ships in 3-6 days

0

1:8

Kohler 25 126 02

Bracket-Air Cleaner
(Superseded to 25 126 02-S)

Note: Obtain from Kohler

$62.99

$

Usually ships in 2-5 days

0

1:9

Toro 25 048 07

Air Cleaner ASM

Note: Obtain from Kohler

$

$

Currently unavailable

1:9:1

Kohler 25 083 04

Filter-Safety
(Superseded to 25 083 04-S)

Note: Obtain from Kohler

$32.99

$

In Stock, Qty 20+

0

1:9:2

Kohler 25 083 01

Element-A/C
(Superseded to 25 083 01-S)

Note: Obtain from Kohler

$32.99

$

In Stock, Qty 20+

0

1:9:3

Toro 99-3174

CLIP-CLEANER, AIR

$18.99

$

In Stock, Qty 11

0

1:9:4

Toro 99-3175

VALVE-EJECTOR, DUST

$36.99

$

Usually ships in 3-6 days

0

1:10

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Obtain from Kohler

$3.49

$

Usually ships in 2-5 days

0

1:11

2409617

Plug

Note: Obtain from Kohler

$

$

Not available

2

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

3

Toro 100-2411-03

FLANGED CONNECTOR ASM

$

$

Not available

4

Toro 32104-111

SCREW

$0.99

$

Usually ships in 3-6 days

0

5

Toro 100-2406

HOSE

$

$

Not available

6

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

7

Toro 100-2412-03

BRACKET

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 100-2421-03

PLATE - COVER

$

$

Not available

10

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 100-2418-03

GUARD

$

$

Not available

13

Toro 32103-29

NUT-WING

$5.99

$

In Stock, Qty 5

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 100-2405

HOSE

$

$

Not available

16

Toro 240-8

GROMMET-RUBBER

$59.99

$

Usually ships in 3-6 days

0

17

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

18

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0
