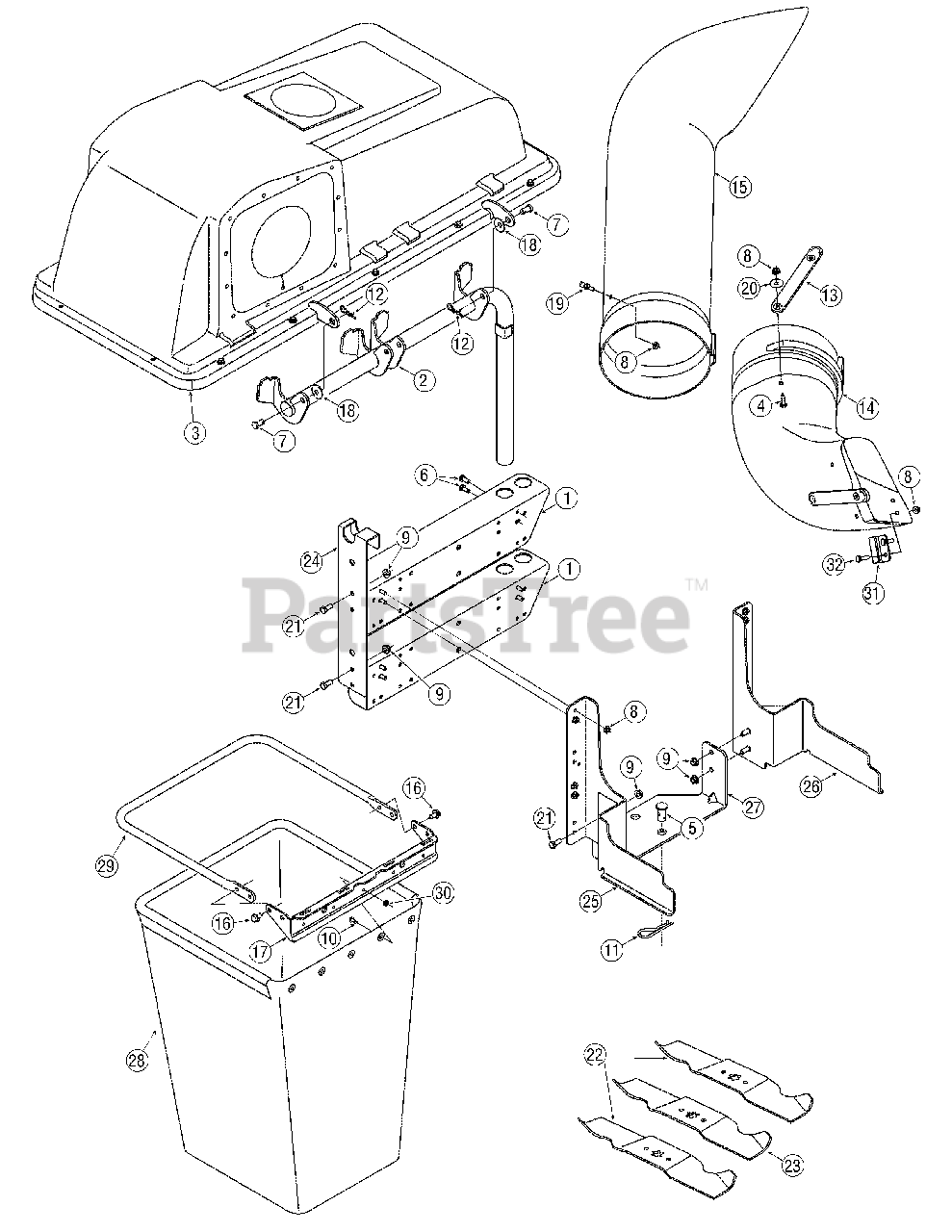

100 (19A-100-100) - Cub Cadet Twin Rear Bagger General Assembly Model 100 Parts Diagram

Twin Rear Bagger

General Assembly Model 100 Parts Diagram

  • Title

1

Cub Cadet 16587D

Bracket Support
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 664-04017

Grass catcher Cover Assembly

$

$

Not available

4

Cub Cadet 710-0597

Screw 1/4-20 x 1"

$3.99

$

In Stock, Qty 13

0

5

Cub Cadet 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

6

Cub Cadet 710-0751

Hex Screw 1/4-20 x0.620

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1421

Clevis Pin

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0473

Machine Screw, #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-04008A

Chute Strap - 46" Deck

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 731-06051

Discharge Chute - 46" Deck
(Superseded to 931-06051A)

$

$

Not available

15

Cub Cadet 731-0926B

Catcher Tube

$142.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0604A

Self-Tapping Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-04069

Grass catcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3092

Flat Washer

$3.99

$

In Stock, Qty 6

0

21

Cub Cadet 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 742-0644

Blade 16.28" Lg. (2) - 46" Deck
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

23

Cub Cadet 742-0645

Blade 14.88" Lg. (1) - 46" Deck
(Superseded to 942-0645)

$25.99

$

In Stock, only 1 left!

0

24

Cub Cadet 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 683-04348

Mounting Bracket - RH

Variations

Cub Cadet 683-04348-0637

MOUNTING BRACKET - RH(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 683-04350

Mounting Bracket - LH
(Superseded to 683-04350-0637)

Variations

Cub Cadet 683-04350-0637

Fast Bracket Assembly - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-0765

Cross Support Bracket
(Superseded to 783-0765-0637)

Variations

Cub Cadet 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

28

Cub Cadet 764-0221

Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

29

Cub Cadet 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0272

Hex Sems Nut, #10-24

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 783-05666

Bracket, Bagger
(Superseded to 783-05666-0637)

Variations

Cub Cadet 783-05666-0637

PLATE-BRACKET LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 710-3015

Screw 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0
