10-4270 - Toro Electric Start Kit for 5hp Snow STARTER KIT TECUMSEH MODEL NUMBER 32386 DOMESTIC Parts Diagram

Electric Start Kit for 5hp Snow

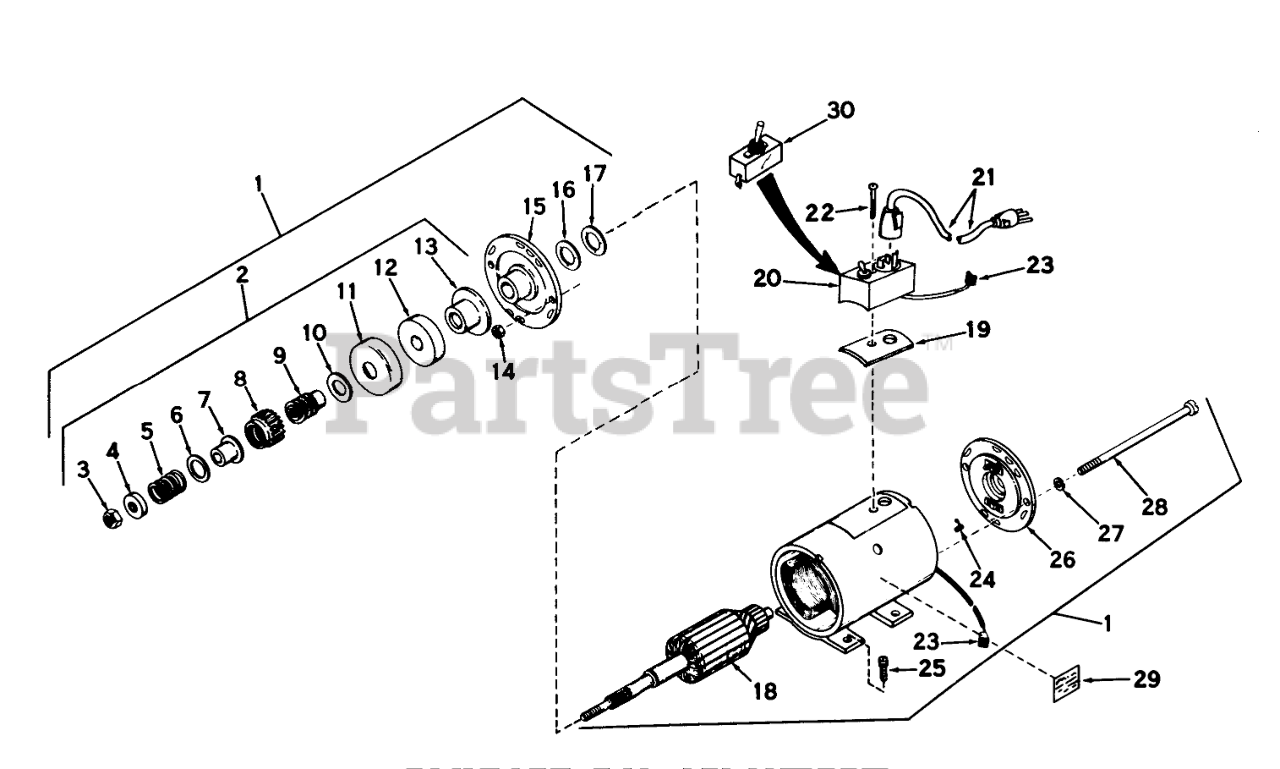

STARTER KIT TECUMSEH MODEL NUMBER 32386 DOMESTIC Parts Diagram

  • Title

1

Tecumseh 32386

Motor, Cranking (Incl. Nos. 2 thru 30)
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

2

Tecumseh 30003

Drive Assy. (Incl. Nos. 3 thru 13)

$

$

Currently unavailable

3

Tecumseh 30004

Nut, Elastic stop

$

$

Currently unavailable

4

Tecumseh 28692

51084 3 1/2HP W/334

$

$

Currently unavailable

5

Tecumseh 28693

Spring, Anti-drift

$

$

Currently unavailable

6

Tecumseh 28694

Washer, Pinion

$

$

Currently unavailable

7

Tecumseh 28695

Sleeve, Anti-drift

$

$

Currently unavailable

8

Tecumseh 30005

Gear, Pinion

$

$

Currently unavailable

9

Tecumseh 30006

Shaft, Screw

$

$

Currently unavailable

10

Tecumseh 30007

Washer, Thrust
(Superseded to 650791)

$0.99

$

In Stock, only 3 left!

0

11

Tecumseh 30008

Cup, Cushion

$

$

Currently unavailable

12

Tecumseh 30009

Cushion, Rubber

$

$

Currently unavailable

13

Tecumseh 30010

Washer, Thrust

$

$

Currently unavailable

14

Tecumseh 30011

Nut, Securing

$

$

Currently unavailable

15

Tecumseh 31590

Cap Assy., Drive end (Incl. bearing)

$

$

Currently unavailable

16

Tecumseh 31591

Washer, Spacing (.005 thick)(Use as required)

$

$

Currently unavailable

16

Tecumseh 30014

Washer, Spacing (.010 thick)(Use as required)

$

$

Currently unavailable

16

Tecumseh 30015

Washer, Spacing (.02 thick)(Use as required)

$

$

Currently unavailable

17

Tecumseh 31592

Washer, Nylon

$

$

Currently unavailable

18

Tecumseh 31593

Armature

$

$

Currently unavailable

19

Tecumseh 32464

Setscrew

$

$

Currently unavailable

20

Tecumseh 32467

Rectifier Assy. (Incl. 2 of each of Nos. 23 & 24; 1 of No.30)

$

$

Currently unavailable

21

Tecumseh 32450

Cord, Extension (10-)
(Superseded to 32450B)

$

$

Not available

22

Tecumseh 650647

Screw, Sems
(Superseded to 30674)

$

$

Currently unavailable

23

Tecumseh 32466

Brush & Spring Kit (Incl. 2 of No. 24)

$

$

Currently unavailable

24

Tecumseh 30021

Spring, Brush

$

$

Currently unavailable

25

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

26

Tecumseh 32465

Cap Assy., Commutator end

$

$

Currently unavailable

27

Tecumseh 30012

Washer, Lock

$

$

Currently unavailable

28

Tecumseh 30023

Bolt, Thru

$

$

Currently unavailable

29

Tecumseh 32453

Decal, Caution

$

$

Currently unavailable

30

Tecumseh 31604

Switch, Toggle

$

$

Currently unavailable
