10-30 - Husqvarna 30" Snow Blower (Original) DRIVE Parts Diagram

30" Snow Blower

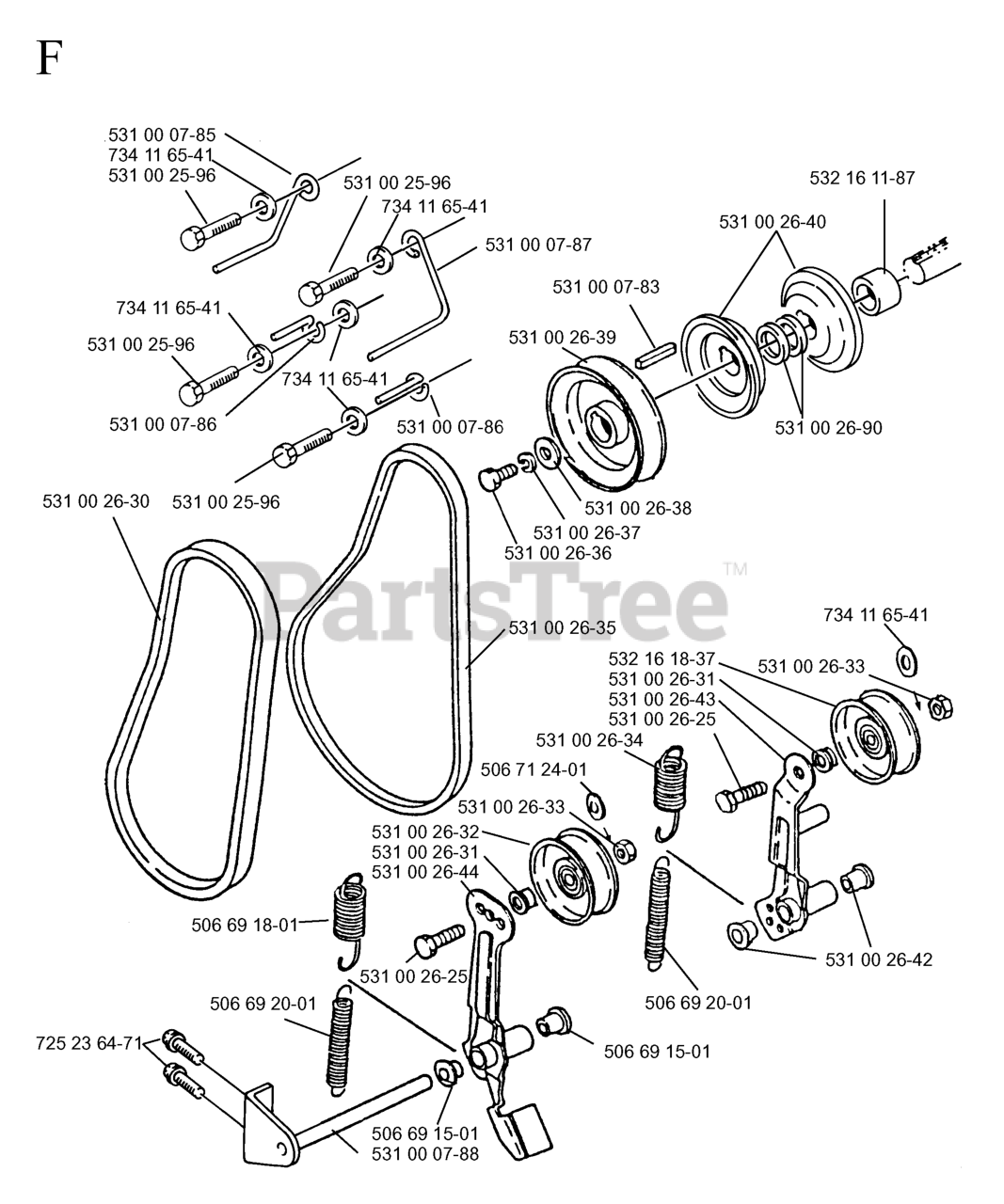

DRIVE Parts Diagram

  • Title
531 00 26-35

Husqvarna 531002635

V-BELT - TRACTION

$

$

Not available

531 00 26-30

Husqvarna 531002630

V-BELT - BLOWER

$

$

Not available

531 00 25-96

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

532 16 11-87

Husqvarna 532161187

SPACER.
(Superseded to 531000782)

$

$

Not available

531 00 07-83

$

$

Not available

531 00 26-40

Husqvarna 531002640

PULLEY HALF, ENGINE TRACTION

$

$

Not available

531 00 26-34

Husqvarna 531002634

RP SPRING EXT-TRACTION ENGAGE

$

$

Not available

506 69 20-01

Husqvarna 506692001

SPRING EXT - RETURN

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531 00 26-44

Husqvarna 531002644

BLOWER IDLER LEVER ASSY

$

$

Not available

531 00 07-88

Husqvarna 531000788

CLUTCH PIVOT SHAFT ASSY

$

$

Not available

531 00 26-33

Husqvarna 531002633

NUT JAM LOCK CENTR - 5/16-18

$

$

Not available

531 00 26-42

Husqvarna 531002642

BUSHING FLANGED - PLASTIC

$

$

Not available

531 00 07-86

Husqvarna 531000786

BELT GUIDE

$

$

Not available

506 69 18-01

Husqvarna 506691801

SPRING EXTN - BLOWER ENGAGE

$

$

Not available

531 00 26-38

Husqvarna 531002638

WASHER - ENG BOLT

$

$

Not available

506 71 24-01

Husqvarna 506712401

WASHER - 20X8.5X2.0

$

$

Not available

531 00 26-25

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

$

$

Not available

531 00 26-36

Husqvarna 531002636

BOLT - 3/8-24X1.0"

$

$

Not available

506 69 15-01

Husqvarna 506691501

BUSHING FLANGED - PLASTIC

$

$

Not available

531 00 07-85

Husqvarna 531000785

BELT GUIDE LH
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

531 00 26-31

Husqvarna 531002631

SPACER - IDLER PULLEY

$

$

Not available

725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

531 00 26-43

Husqvarna 531002643

TRACTION IDLER LEVER ASSY

$

$

Not available

531 00 07-87

Husqvarna 531000787

BELT GUIDE RH
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

532 16 18-37

Husqvarna 532161837

PULLEY..
(Superseded to 532180522)

$31.99

$

In Stock, only 2 left!

0

531 00 26-37

Husqvarna 531002637

WASHER SPLIT LOCK - 3/8" HEAVY

$

$

Not available

531 00 26-39

Husqvarna 531002639

PULLEY - ENGINE, BLOWER

$

$

Not available

531 00 26-90

$

$

Not available

531 00 26-32

Husqvarna 531002632

PULLEY - IDLER

$

$

Not available
